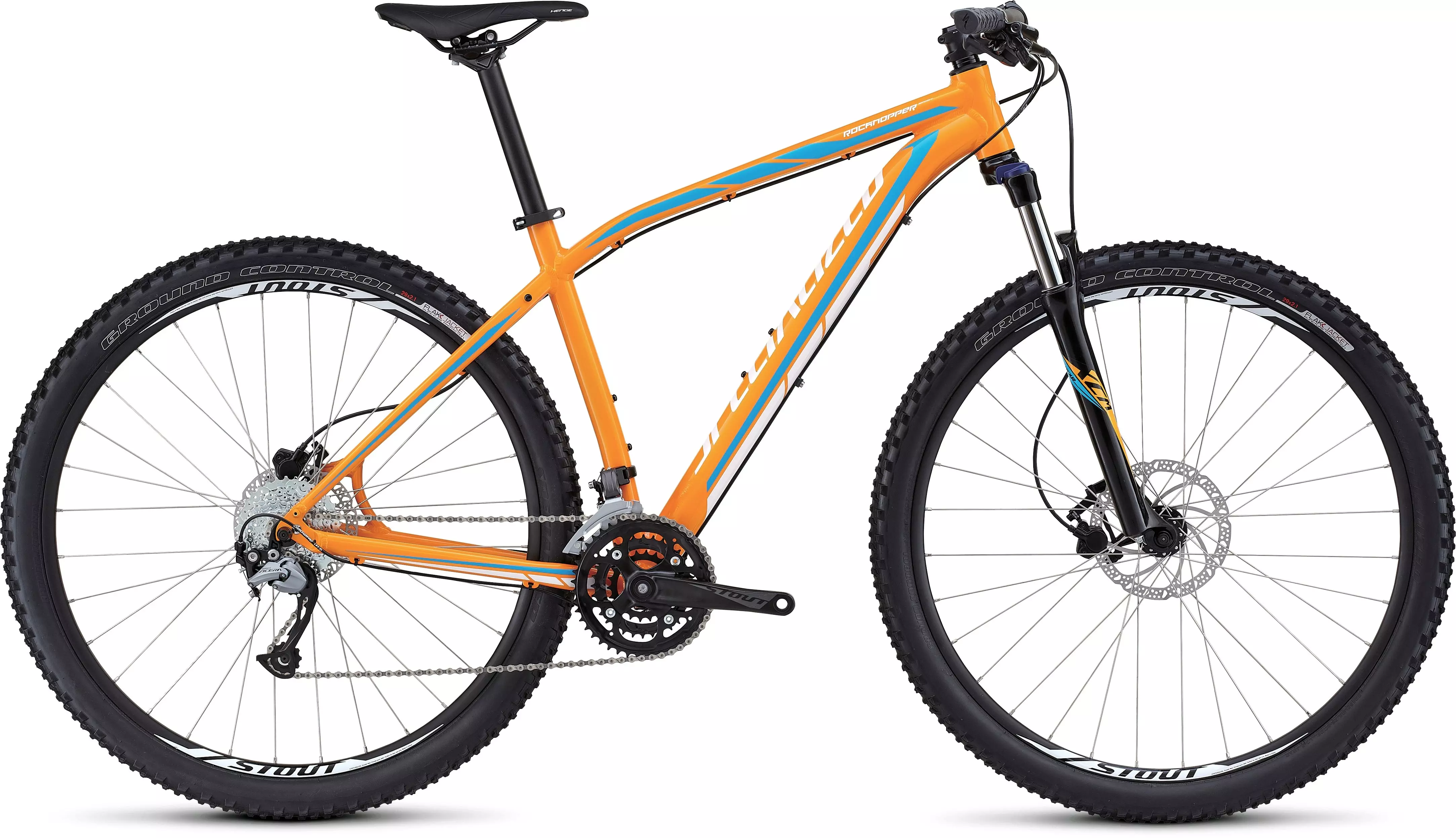

Rockhopper Sport 29
$800.00
Part No.

Rockhopper Sport 29

$800.00
Part No.  106489
load-spinner
Rockhopper Sport 29
Overview
Technical Specifications
Geometry
Reviews
Maybe you're finding your legs on the singletrack, or perhaps you're just dirt-curious? Either way, the Rockhopper Sport 29 is the only bike you need to live out your trail fantasies. It places a focus on long haul performance, and we're not talking about 100-mile trail rides. Its corrosion-resistant hardware is built to last, while all of the components are purposely selected for their balance of strength and capability. And setting everything over the top is our Trail 29 Geometry that's guaranteed to leave you feeling planted, confident, and efficient out there on the dirt.
  • The frame is constructed from A1 Premium aluminum in order to provide a lightweight, durable platform to support our acclaimed Trail 29 Geometry. Combined, you get a bike that's efficient on climbs and eager on descents.
  • Custom SR Suntour XCM 29 fork pairs a coil spring with our Multi-Circuit Damping technology to eliminate any "pogo" effect by delivering 80/100mm (size-specific) of hydraulic damped suspension and rebound that smooths out rough terrain.
  • With reliable traction, puncture-resistance, and sheer speed over the dirt, our 29x2.1" Ground Control Sport tires will keep you rolling with confidence over almost any terrain.
  • 29" alloy Stout rims have been laced to our Stout hubs to form wheels that allow you mow over everything in sight, climb gracefully, and get to the bottom of the trail eager for more.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 34.9mm
HEADSET 1-1/8"" upper/lower, ZeroStack 44, steel cups, loose ball bearings
FRAME Specialized A1 Premium Aluminum, Trail 29 Geometry ORE down tube, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger
WHEELS
FRONT HUB Specialized Stout, Hi Lo disc, alloy, double-sealed, ground race, QR, 32h
REAR HUB Specialized Stout, Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
INNER TUBES Standard, Schrader valve
SPOKES Stainless, 14g
FRONT TIRE Ground Control Sport, 29x2.1"", 60TPI, wire bead, Flak Jacket protection
RIMS Specialized Stout 29, disc, alloy, double-wall, pin joint, 25mm inner width, 32h
REAR TIRE Ground Control Sport, 29x2.1"", 60TPI, wire bead, Flak Jacket protection
DRIVETRAIN
BOTTOM BRACKET Square taper, cartridge bearings
CHAIN KMC X9, 9-speed, w/ reusable MissingLink
CRANKSET Stout crankset, forged alloy construction, 9-speed, square taper BB, 44/32/22T
CASSETTE Sunrace, 9-speed, 11-34t
SHIFT LEVERS Shimano Altus, RapidFire Plus, 9-speed
FRONT DERAILLEUR Shimano Altus, high mount, bottom swing, dual pull
REAR DERAILLEUR Shimano Acera rear derailleur, Shadow design, 9-speed
COCKPIT
SADDLE Body Geometry mountain, steel rails, 143mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware
GRIPS Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end
HANDLEBARS Specialized Stout, flat bar, double-butted 6061 alloy, 10-degree backsweep, 4-degree upsweep, 31.8mm
STEM 3D-forged alloy, 4-bolt, 6-degree rise
BRAKES
BRAKE LEVERS Tektro Auriga, hydraulic, reach adjust
FRONT BRAKE Tektro Auriga, hydraulic disc, organic pads, 180mm rotor
REAR BRAKE Tektro Auriga, hydraulic disc, organic pads, 160mm rotor
ACCESSORIES
PEDALS Plastic, 9/16"", w/ reflectors
SUSPENSION
FORK Custom SR Suntour XCM 29, custom Multi-Circuit Damping, coil spring, S: 80mm travel, M/L/XL: 100mm travel, preload adjust, 1-1/8"" steerer, alloy lowers, Hi-Ten 30mm stanchions, disc mount

Geometry

Geometry Chart

Rockhopper - Geometry

S M L XL XXL
  S M L XL XXL
Stem Length 60mm 70mm 70mm 80mm 90mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 700mm 720mm 720mm 720mm 720mm
Reach 400mm 412mm 430mm 450mm 464mm
Stack 615mm 624mm 639mm 653mm 672mm
Wheelbase 1076mm 1091mm 1114mm 1139mm 1159mm
Bike Stand-Over Height 763.6mm 810.4mm 828.7mm 860mm 894.1mm
Head-Tube Length 110mm 100mm 115mm 130mm 150mm
Front-Center 642mm 657mm 680mm 704mm 725mm
Fork Rake/Offset 46mm 46mm 46mm 46mm 46mm
Head-Tube Angle 71° 71° 71° 71° 71°
Trail 80mm 80mm 80mm 80mm 80mm
B-B Height 310mm 310mm 310mm 310mm 310mm
Chain-Stay Length 442mm 442mm 442mm 442mm 442mm
Fork Length (full) 485mm 505mm 505mm 505mm 505mm
Seat-Tube Angle 73° 72° 72° 72° 72°
B-B Drop 64mm 64mm 64mm 64mm 64mm
Seat-Tube Length 395mm 445mm 460mm 510mm 560mm
Top-Tube Length (horizontal) 588mm 615mm 637mm 662mm 682mm
