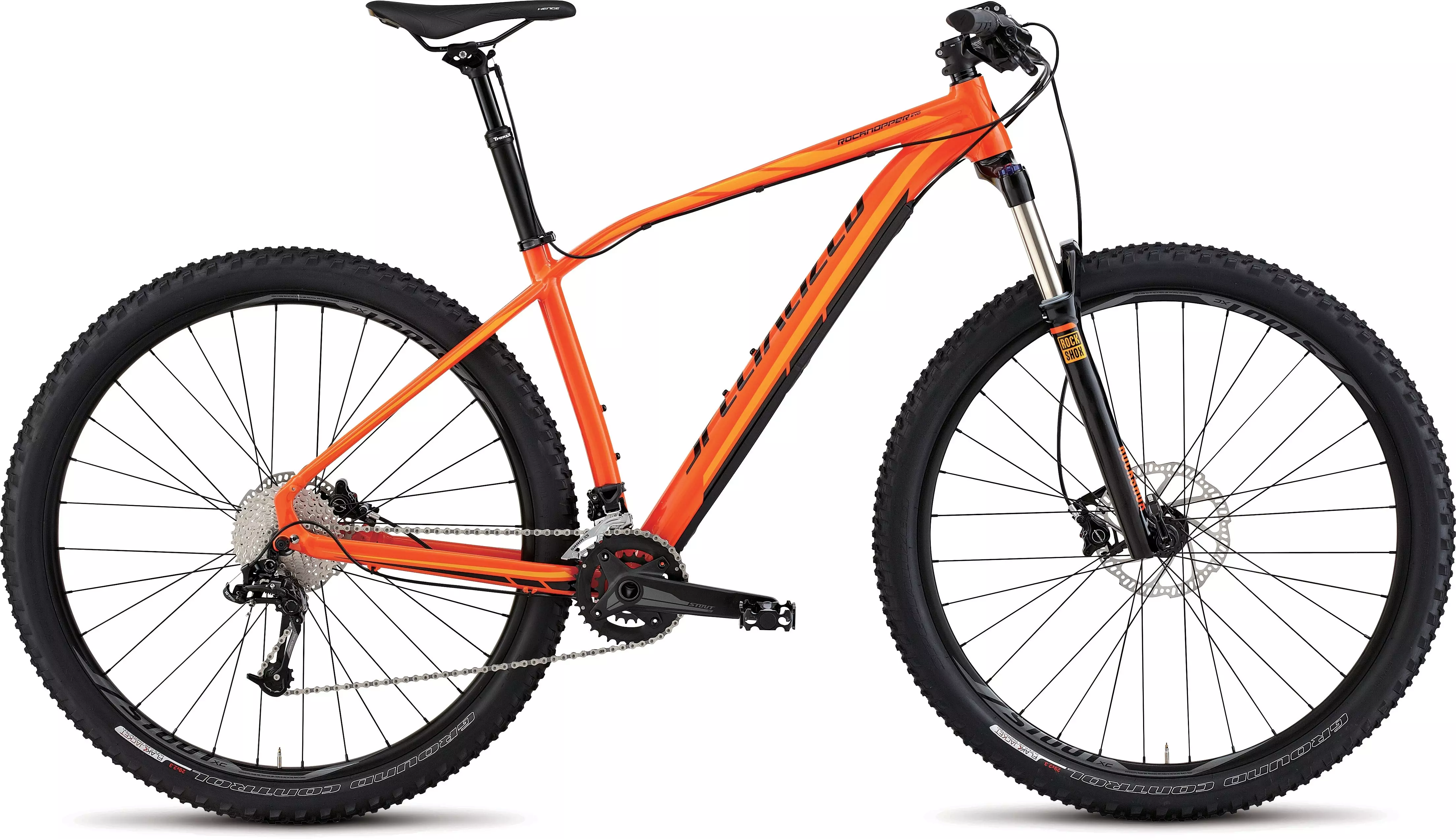

Rockhopper Pro EVO 29
Part No.

Rockhopper Pro EVO 29

Part No.
Please select an option
Rockhopper Pro EVO 29
Technical Specifications
Trails were built to be ridden hard, and that's what the Rockhopper EVO does best. With a 120mm fork, 29-inch wheels, slightly more relaxed geometry, and Tektro Gemini disc brakes, the EVO will tame the toughest trails.
  • Stout XC 29” aluminum with 20mm inner width rims are trail ready
  • Custom 2x10 crankset and drivetrain for efficient and precise shifting
  • 120mm-travel RockShox XC32 fork w/ 15mm thru-axle for plush and precise handling
  • Tektro Gemini Comp hydraulic disc brakes for consistent, all-weather stopping power
  • SRAM X9 Type 2, 10-speed, medium cage rear derailleur for precise shifting
  • Specialized Ground Control 2.3" tires w/ a fast-rolling yet grippy tread
  • New A1 Premium Aluminum EVO 29 frame delivers a more aggressive trail performance

Technical Specifications

CHAIN KMC X10, 10-speed, w/ reusable MissingLink
BOTTOM BRACKET 24mm BSA for 2 pc. design, 73mm
CRANKSET Specialized Stout XC, 2x10, 2 pc., 24mm spindle, 36/22, anti-corrosion hardware
FRONT DERAILLEUR SRAM X5, 2x10, high mount
SHIFT LEVERS SRAM X5, 2x10, trigger
CASSETTE Sunrace, 10-speed, 11-36
REAR DERAILLEUR SRAM X9 Type 2, 10-speed, medium cage
FORK RockShox XC32 TK, Solo Air spring, 32mm stanchions, tapered alloy steerer, TurnKey damping w/ lockout, external rebound adjust, 15mm thru-axle, size-specific 100/120mm travel
FRONT HUB Specialized Hi Lo disc, alloy, sealed cartridge bearings, 15mm thru-axle, 32h
REAR HUB Specialized Stout XC disc, alloy, RCC bearing system, QR, 32h
INNER TUBES Standard, presta valve
SPOKES Stainless, 14g, black
RIMS Specialized Stout XC, 29"" disc, alloy double-wall, pin joint, 26mm inner width, 28/32h
FRONT TIRE Specialized Ground Control Sport, 60TPI, wire bead, 29x2.3""
REAR TIRE Specialized Ground Control Sport, 60TPI, wire bead, 29x2.3""
SADDLE Body Geometry mountain, steel rails, 143mm
SEATPOST TranzX YSP02 dropper, infinite adjust, external cable routing, remote lever, 30.9mm, 100mm travel
STEM Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
HANDLEBARS Specialized, low rise bar, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm
GRIPS Specialized Body Geometry XC Contour, Kraton w/ gel, lock-on
FRONT BRAKE Tektro Gemini Comp, hydraulic disc, resin/metallic pads, I-spec compatible
BRAKE LEVERS Tektro Gemini Comp, hydraulic, reach adjust, I-spec compatible
REAR BRAKE Tektro Gemini Comp, hydraulic disc, resin/metallic pads, I-spec compatible
PEDALS Alloy, 1 pc. body, 9/16"", w/ reflectors
HEADSET 1-1/8"" upper, 1-1/2"" lower, Campy style, integrated sealed cartridge bearings
SEAT BINDER Alloy, single bolt, w/ dropper post cable routing, 34.9mm
FRAME Specialized A1 SL Aluminum, EVO 29er geometry, fully butted tubesets, ORE downtube, tapered headtube, forged dropouts w/ disc mount, replaceable derailleur hanger


Geometry Chart

Rockhopper - Geometry

Crank Length 170mm 175mm 175mm 175mm 175mm
Stem Length 60mm 60mm 70mm 70mm 80mm
Handle-Bar Width 740mm 740mm 740mm 740mm 740mm
Reach 400mm 412mm 430mm 450mm 464mm
Stack 620mm 634mm 639mm 658mm 676mm
Wheelbase 1089mm 1106mm 1126mm 1153mm 1173mm
Seat-Tube Length, B-B Center to Top 395mm 445mm 460mm 510mm 560mm
Bike Stand-Over Height 759mm 813mm 824mm 859mm 890mm
Head-Tube Length 100mm 95mm 100mm 120mm 140mm
Top-Tube Length, Horizontal 590mm 618mm 638mm 664mm 684mm
Front-Center 655mm 672mm 691mm 718mm 739mm
Head-Tube Angle 70° 70° 70° 70° 70°
Seat-Tube Angle (Effective) 73° 72° 72° 72° 72°
Trail 86mm 86mm 86mm 86mm 86mm
Chain-Stay Length 442mm 442mm 442mm 442mm 442mm
B-B Height 308.5mm 308.5mm 308.5mm 308.5mm 308.5mm
Seat-Tube Angle (Actual) 74.25° 73° 73° 73° 73°
B-B Drop 63.5mm 63.5mm 63.5mm 63.5mm 63.5mm
Seat-Post Length 400mm 400mm 400mm 400mm 400mm
