2014 Rockhopper Pro EVO 29

0 Reviews

Trails were built to be ridden hard, that's what the Rockhopper EVO does best. With…

Color:

Satin Blk/Gloss Blk/Red

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

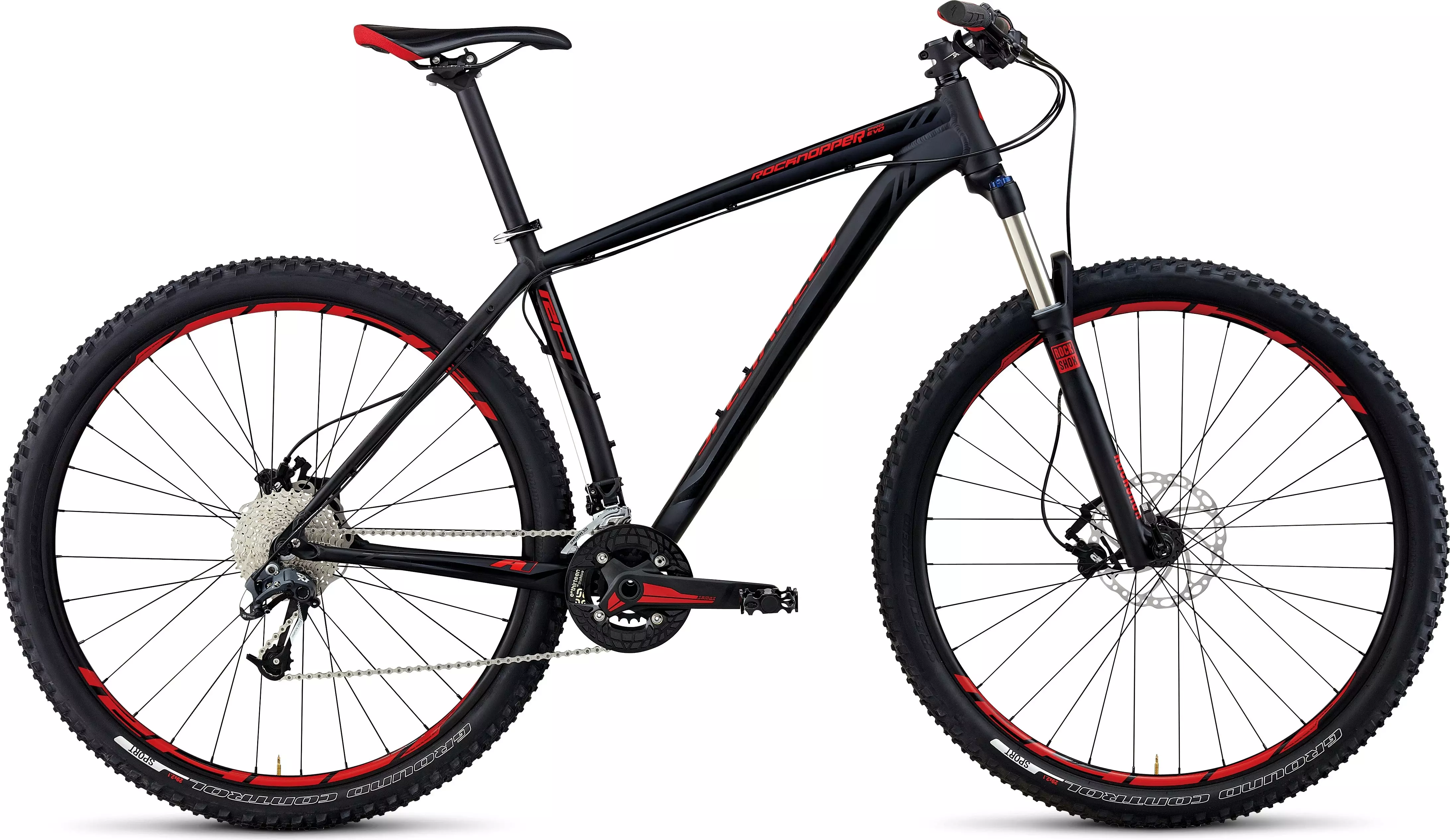

Trails were built to be ridden hard, that's what the Rockhopper EVO does best. With a 120mm fork, 29-inch wheels, slightly more relaxed geometry, and an e.thirteen bash guard, the EVO will tame the toughest trails.

The EVO model uses the same fully butted A1 Premium frame as other Rockhopper models, but delivers a more aggressive trail experience. The 120mm-travel RockShox fork relaxes the geometry for more stable handling, and a bash guard improves chain retention and drive train durability
RockShox XC32 features TurnKey hydraulic damping with lockout, Solo Air spring, tapered alloy steerer tube, and externally adjustable rebound for plush and lightweight trail performance with a 15mm Maxle for increased stiffness
Custom forged alloy, 10-speed XC crankset with e.thirteen Turbocharger bash guard offers lightweight and durable performance
Tektro Draco 2 hydraulic disc brakes/levers with Light Wave rotors create increased control and superior stopping power for more confident braking
SRAM X7 Type 2, 10-speed rear derailleur for reliable, high-end performance

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, Trail 29er Geometry, fully butted w/ tapered headtube, forged dropouts, replaceable alloy derailleur hanger

HEADSET

1-1/8"" upper and 1-1/2"" lower threadless, Campy style, integrated full cartridge bearings

SEAT BINDER

Forged alloy, 31.8mm, QR, nylon washer

SUSPENSION

FORK

RockShox XC32 29, TurnKey damping w/ lockout, Solo Air spring, tapered alloy steerer, external rebound adj., 15mm thru-axle, 32 mm stanchions, S: 100mm travel, Others: 120mm travel

WHEELS

RIMS

RH Disc 29"", alloy double-wall, 26mm, pin joint, 32h

FRONT HUB

Specialized disc, alloy, Hi Lo flange, sealed bearings, alloy axle, 15mm thru axle, 32h

REAR HUB

Specialized disc, alloy, Hi Lo flange, RCC ball bearing system, steel axle, steel cassette body, QR, 32h

SPOKES

Stainless, 14g (2.0mm)

FRONT TIRE

Specialized Ground Control, 29x2.1"", wire bead, 60TPI

REAR TIRE

Specialized Ground Control, 29x2.1"", wire bead, 60TPI

INNER TUBES

Standard presta valve

DRIVETRAIN

FRONT DERAILLEUR

SRAM X5, 10-speed 2X10, 34.9mm clamp

REAR DERAILLEUR

SRAM X7 Type 2, 10-speed, long cage

SHIFT LEVERS

SRAM X5, 10-speed trigger

CASSETTE

Sunrace, 10-speed, 11-36

CHAIN

KMC X10

CRANKSET

Custom Samox, 2pc., forged arm, 2x10 w/ e.13 Turbocharger bash guard, 170mm/175mm

CHAINRINGS

36/22, aluminum

BOTTOM BRACKET

GXP BB for 2pc., 73mm shell

COCKPIT

SADDLE

Specialized Body Geometry Rockhopper, steel rails, 143mm

SEATPOST

Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm

STEM

Specialized 3D forged alloy, 4-bolt clamp, 6-degree rise, 31.8mm

HANDLEBARS

Specialized mini riser, double-butted 6061 alloy, 700mm wide, 10-degree backsweep, 6-degree upsweep, 12mm rise, 31.8mm

GRIPS

Specialized Body Geometry XC Contour, Kraton w/ gel, closed end, 132mm, lock-on

BRAKES

FRONT BRAKE

Tektro Draco 2, hydraulic disc, dual piston, 180mm rotor

REAR BRAKE

Tektro Draco 2, hydraulic disc, dual piston, 160mm rotor

BRAKE LEVERS

Tektro Draco 2, hydraulic lever

ACCESSORIES

PEDALS

Alloy, 1pc. body and cage, w/ reflectors, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	15.5	17.5	19.0	21.0	23.0
Top Tube Length (Horizontal)	580mm	607mm	629mm	654mm	674mm
Seat Tube Angle (Effective)	72°	72°	72°	72°	72°
Top Tube Length (Actual)	550mm	572mm	594mm	621mm	644mm
Seat Tube Angle (Actual)	71°	71°	71°	71°	71°
Seat Tube Length, Center to Top	394mm	445mm	483mm	533mm	584mm
Bottom Bracket Drop	55mm	55mm	55mm	55mm	55mm
Bottom Bracket Height	317mm	317mm	317mm	317mm	317mm
Wheel Base	1065mm	1092mm	1115mm	1140mm	1161mm
Standover Height	760mm	796mm	826mm	862mm	899mm
Stack	620mm	632mm	646mm	661mm	680mm
Reach	376mm	400mm	418mm	439mm	453mm
Head Tube Length	110mm	100mm	115mm	130mm	150mm
Head Tube Angle	70°	70°	70°	70°	70°
Chainstay Length	442mm	442mm	442mm	442mm	442mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Handlebar Width	700mm	700mm	700mm	700mm	700mm
Stem Length	60mm	80mm	80mm	80mm	90mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
