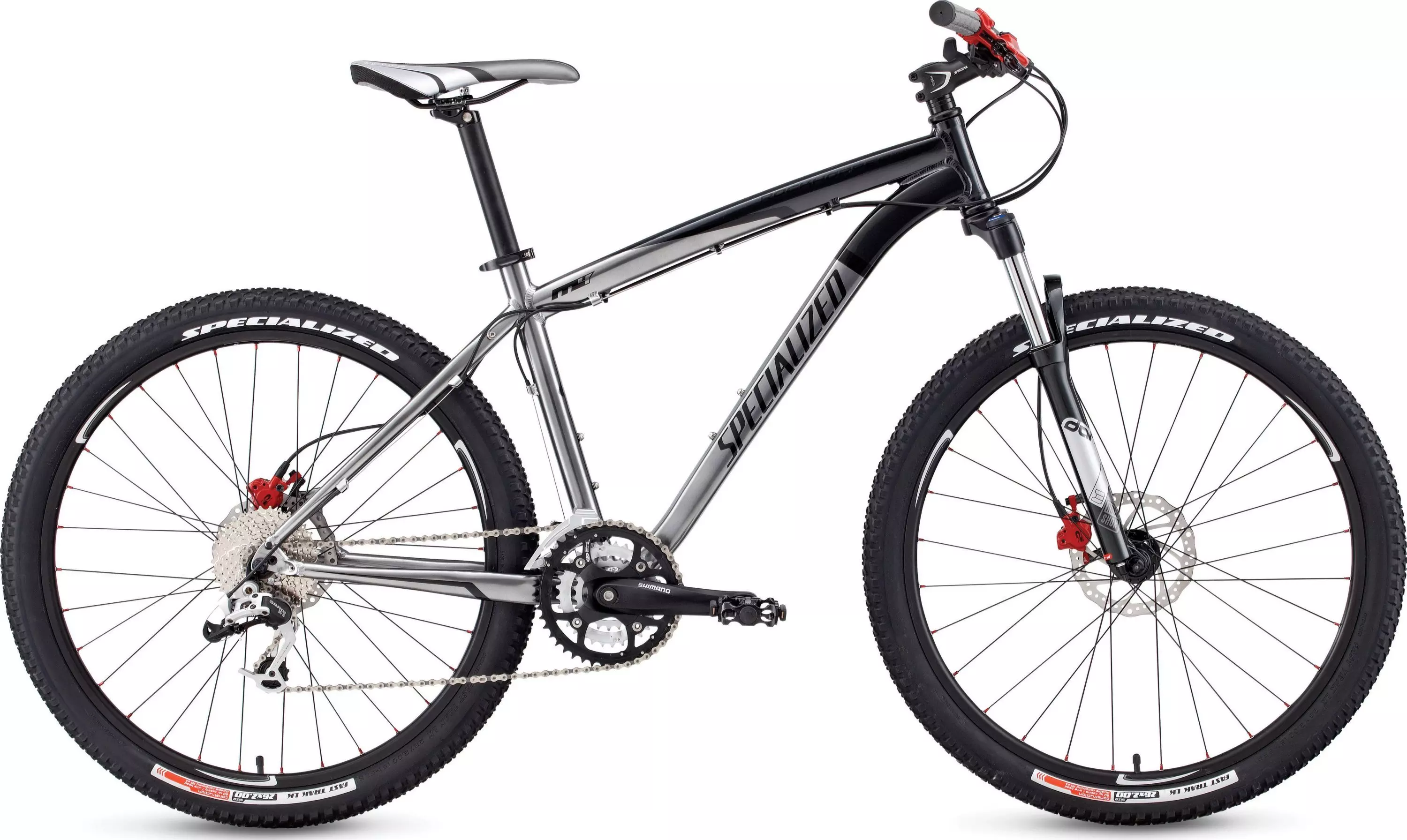

Rockhopper Expert Disc
$940.00
Part No.

Rockhopper Expert Disc

$940.00
Part No.  23191
load-spinner
Rockhopper Expert Disc
Overview
Technical Specifications
Geometry
Reviews
For XC hardtail riders looking to upgrade their trail adventures or maybe even nab their first real deal mountain bike, the Rockhopper® is impossible to beat. A lightweight and responsive M4 chassis, capable MTB components and straight-out-of-the-box performance make this bike feel like a much more expensive ride
  • Trail-inspired, fully butted M4 alloy frame for lightweight strength
  • Crankset uses Octalink-splined BB interface for reliable power transfer
  • Dual-piston hydraulic disc brakes with 160mm rotors deliver smooth, controlled, powerful stops
  • SRAM X5 medium-cage rear derailleur and 9-speed trigger shifters for precise, sure-fire shifting
  • RockShox Dart 3 80/100mm-travel fork features preload adjustment and size-specific spring rates for fine-tuned performance

Technical Specifications

DRIVETRAIN
CHAIN KMC X9 w/ reuseable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
CRANKSET Shimano FC-M442, Octalink Spline
FRONT DERAILLEUR Shimano Deore, 34.9mm clamp, top swing, bottom pull
SHIFT LEVERS SRAM X5-R trigger
CASSETTE Shimano HG50, 9-speed, 11-34t
CHAINRINGS 44A x 32S x 22S replaceable
REAR DERAILLEUR SRAM X-5, mid cage
SUSPENSION
FORK RockShox Dart 3 SL, 80/100mm, 1 piece magnesium lower, alloy steerer, adj. reb. damping w/ LO and preload adj., size-specific spring rates, disc only
WHEELS
FRONT HUB Forged alloy, hi/low flange, double sealed, ground race, machined disc mount, 32h
REAR HUB Forged alloy, double sealed, ground race, machined disc mount, cassette, 32h
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
FRONT TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
RIMS Alex RHD 26"", pinned, alloy double wall, eyelets, 28h front and 32h rear
REAR TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
COCKPIT
SADDLE Specialized Rockhopper XC, Body Geometry, 143mm width, front and rear bumpers
SEATPOST Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm
STEM 3D forged alloy, 7 degree rise, 31.8mm clamp
HANDLEBARS Butted alloy riserbar, 25mm rise, 660mm wide, 8 degree back sweep, 7 degree up sweep
GRIPS Specialized Enduro, dual compound Kraton, no flange, 131mm
BRAKES
FRONT BRAKE Tektro Auriga Comp, hydraulic disc, dual piston w/ 160mm rotor
BRAKE LEVERS Tektro Auriga Comp
REAR BRAKE Tektro Auriga Comp, hydraulic disc, dual piston w/ 160mm rotor
ACCESSORIES
PEDALS Alloy body and cage, 9/16""
FRAMESET
HEADSET 1-1/8"" threadless, loose ball
SEAT BINDER Forged alloy QR, brass washer
FRAME Specialized M4 fully manipulated alloy frame, fully butted, ORE DT, externally relieved HT, forged dropouts w/ replaceable derailleur hanger, disc only

Geometry

Geometry Chart

Rockhopper - Geometry

  13 15 17 19 21 23
Stem Length 60mm 60mm 75mm 75mm 90mm 90mm
Crank Length 170mm 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 350mm 400mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm 640mm 640mm
Chainstay Length 426mm 426mm 426mm 426mm 426mm 426mm
Top Tube Length (Actual) 537.68mm 546.08mm 567.11mm 590.13mm 615.3mm 639.8mm
Ground-Top 304mm 304mm 304mm 304mm 304mm 304mm
Top Tube Length (Horizontal) 545mm 565mm 590mm 615mm 640mm 660mm
Head Tube Angle - Low Setting 70° 70° 70° 70° 70° 70°
Standover Height 693mm 725mm 767mm 800mm 836mm 872mm
Wheel Base 1029mm 1049mm 1075mm 1101mm 1127mm 1148mm
Head Tube Height 100mm 100mm 110mm 120mm 140mm 160mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73° 73° 73°
Seat Tube Length - Center to Top 330mm 381mm 432mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 304mm 304mm 304mm 304mm 304mm 304mm
