Technical Specifications

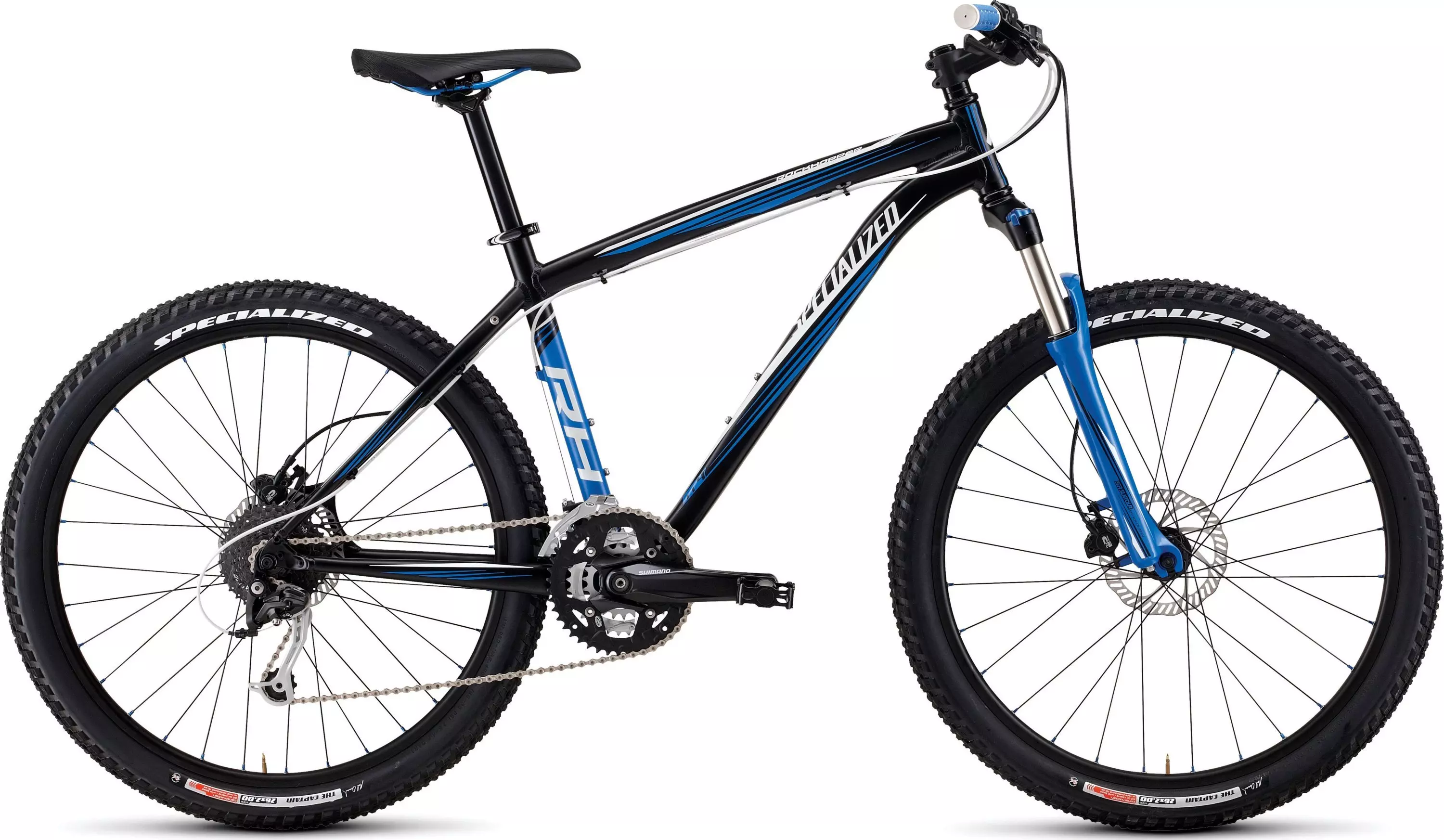

With its M4 frame, hydraulic disc brakes, and trail-ready components, the Rockhopper Comp looks to find the fire road and sniff out the singletrack.
  • Fully butted M4 alloy frame for lightweight confidence over the roughest trails
  • Specialized Captain Sport tires lend a perfect knob pattern for diverse conditions
  • Light and durable double-walled alloy rims are tough enough to handle the rough stuff
  • Tektro Draco hydraulic disc brakes with dual pistons assure precision braking under any conditions
  • Shimano Alivio 9-speed rear derailleur and Rapidfire trigger shifters for reliable, high-end performance
  • Shimano crankset with forged alloy arms and Octalink-splined BB interface means greater durability and better shifting performance
  • Custom-tuned SR Suntour suspension fork with hydraulic damping, lockout with lightweight magnesium lowers, and alloy steerer delivers the supple ride qualities of a high-end fork

Technical Specifications

CHAIN KMC X9 w/ reusable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
CRANKSET Shimano FC-M430-8, Octalink spline
FRONT DERAILLEUR Shimano Alivo, 34.9mm clamp, top swing, dual pull
SHIFT LEVERS Shimano Alivo SL, rapid fire trigger
CASSETTE Shimano HG30, 9-speed, 11-34t
CHAINRINGS 44S x 32S x 22S replaceable
REAR DERAILLEUR Shimano Alivio, 9sp direct mount Long cage
FORK SR Suntour SF11-XCR-DS-26-LO-SP, 1-1/8"" alloy steer, mag. lower, 30mm stanchions, hyd. damping w/ lock out and custom tuned spike valve
FRONT HUB Forged alloy, hi/low flange, double sealed, ground race, machined disc mount and flange, QR, 28h
REAR HUB Forged alloy, mid flange, double sealed, ground race, machined disc mount and flanges, cassette, QR, 32h
INNER TUBES Presta valve
SPOKES 2mm (14g) stainless
FRONT TIRE Specialized The Captain Sport, 26x2.0"", 60TPI, wire bead
RIMS Alex RHD 26"", alloy double wall, pinned w/eyelets
REAR TIRE Specialized The Captain Sport, 26x2.0"", 60TPI, wire bead
SADDLE Specialized Rockhopper XC, Body Geometry, 143mm width, front and rear bumpers
SEATPOST Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm
STEM 3D forged alloy, 7 degree rise, 31.8mm clamp
HANDLEBARS Butted alloy riserbar, 25mm rise, 8 degree back sweep, 6 degree up
GRIPS Specialized Enduro, dual compound Kraton, no flange, 131mm
FRONT BRAKE Tektro Draco Hydraulic disc brake, dual piston, 160mm rotor
BRAKE LEVERS Tektro Draco hydraulic
REAR BRAKE Tektro Draco Hydraulic disc brake, dual piston, 160mm rotor
PEDALS Alloy 1pc. body and cage, reflector kit, 9/16""
HEADSET 1-1/8"" threadless, loose ball
SEAT BINDER Forged alloy QR, brass washer
FRAME Specialized M4 fully manipulated alloy frame, fully butted, externally relieved HT, forged dropouts w/ replaceable derailleur hanger, disc only


Geometry Chart

- Geometry

  13 15.5 17.5 19 21 23
Reach 377mm 403mm 420mm 436mm 455mm 469mm
Stack 549mm 549mm 577mm 587mm 606mm 624mm
Chainstay Length 426mm 426mm 426mm 426mm 426mm 426mm
Top Tube Length (Actual) 537.68mm 550mm 573mm 590.13mm 615.3mm 639.8mm
Ground-Top 853mm 888mm 897mm 907mm 926mm 949mm
Top Tube Length (Horizontal) 545mm 571mm 596mm 615mm 640mm 660mm
Head Tube Angle - Low Setting 70° 70° 70° 70° 70° 70°
Standover Height 693mm 737mm 777mm 800mm 836mm 872mm
Head Tube Height 100mm 100mm 110mm 120mm 140mm 160mm
Wheel Base 1029mm 1049mm 1075mm 1101mm 1127mm 1148mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73° 73° 73°
Seat Tube Length - Center to Top 330mm 394mm 444mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 304mm 304mm 304mm 304mm 304mm 304mm
