Rockhopper Comp 29
Overview
Technical Specifications
Geometry
Reviews

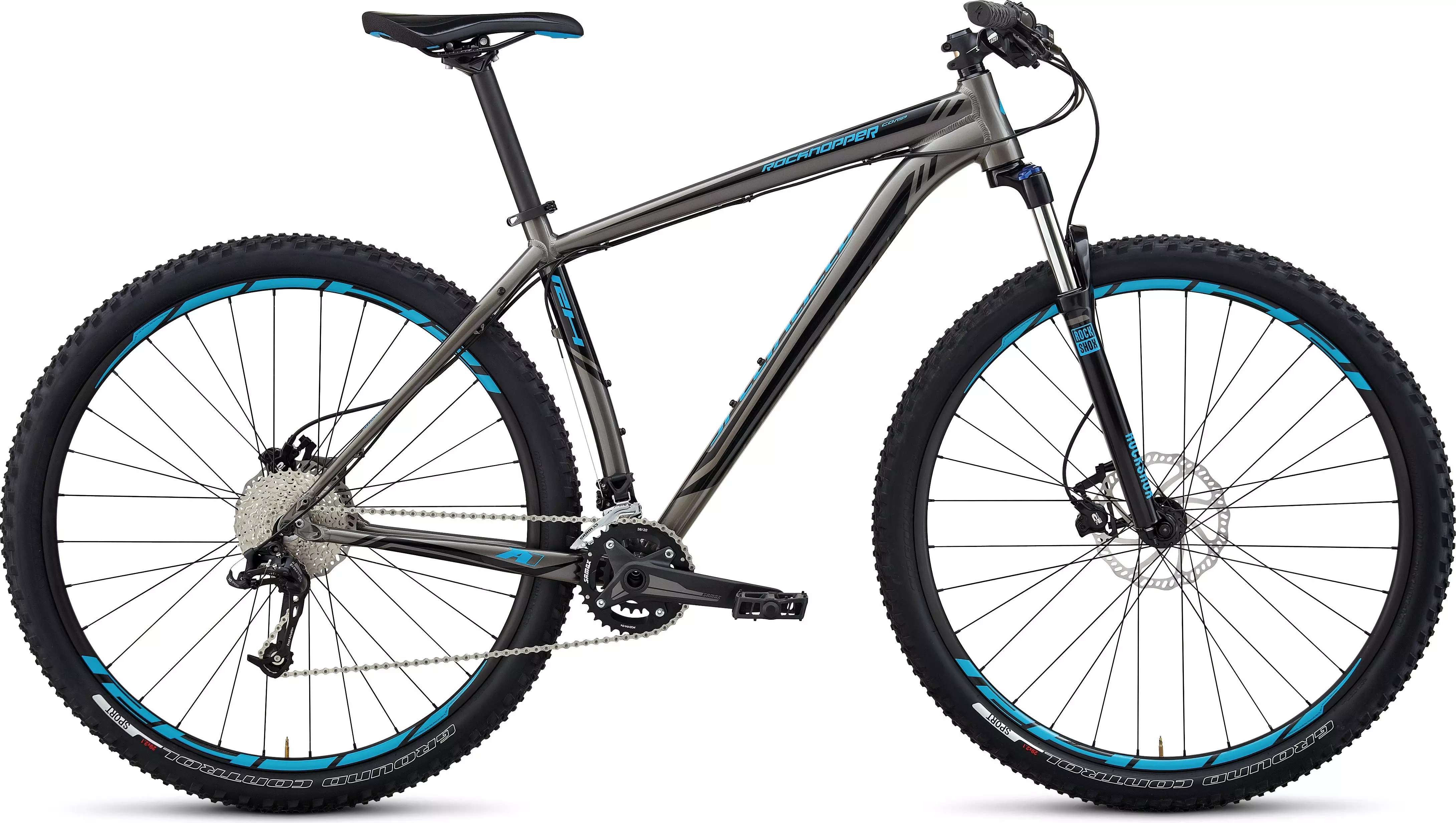

The Rockhopper is a time-tested trail riding hardtail built for cruising fire roads and slicing through singletrack. Equipped with Tektro 2 hydraulic disc brakes and a RockShox XC28 suspension fork featuring lockout, the Rockhopper Comp combines performance with value in a package every rider will appreciate.
  • Fully butted A1 Premium Aluminum 29er frame with ORE downtube for a lighter, more compliant and durable bike
  • RockShox XC28 fork features TurnKey hydraulic damping, lockout, alloy steerer tube, and externally adjustable rebound for plush and lightweight trail performance
  • Custom forged alloy, 10-speed XC crankset offers lightweight and durable performance
  • Tektro Draco hydraulic disc brakes/levers with Light Wave rotors create increased control and superior stopping power for more confident braking
  • SRAM X5 10-speed rear derailleur makes shifts super crisp and efficient

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy, 34.9mm, QR, nylon washer
HEADSET 1-1/8"" w/ lower bearing reducer, Campy style, integrated full cartridge bearings
FRAME Specialized A1 Premium Aluminum, Trail 29er Geometry, fully butted w/ tapered headtube, forged dropouts, replaceable alloy derailleur hanger
WHEELS
FRONT HUB Specialized disc, alloy, Hi Lo flange, RCC ball bearing system, steel axle, QR, 32h
REAR HUB Specialized disc, alloy, Hi Lo flange, RCC ball bearing system, steel axle, steel cassette body, QR, 32h
INNER TUBES Standard presta valve
SPOKES Stainless, 14g (2.0mm)
RIMS RH Disc 29"", alloy double-wall, 26mm, pin joint, 32h
FRONT TIRE Specialized Ground Control Sport, 29x2.1"", wire bead, 60TPI
REAR TIRE Specialized Ground Control Sport, 29x2.1"", wire bead, 60TPI
DRIVETRAIN
BOTTOM BRACKET GXP BB for 2pc., 73mm shell
CHAIN KMC X10
CRANKSET Custom Samox, 2pc., forged arm, 2x10, 170mm/175mm
CASSETTE Sunrace, 10-speed, 11-36
SHIFT LEVERS SRAM X5, 10-speed trigger
FRONT DERAILLEUR SRAM X5, 10-speed 2X10, 34.9mm clamp
CHAINRINGS 36/22, aluminum
REAR DERAILLEUR SRAM X5, 10-speed, long cage
COCKPIT
SADDLE Specialized Body Geometry Rockhopper, steel rails, 143mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm
GRIPS Specialized Body Geometry XCT, Kraton w/ gel, closed end, 132mm, lock-on
HANDLEBARS Specialized flat bar, double-butted 6061 alloy, 700mm wide, 10-degree backsweep, 4-degree upsweep, 31.8mm
STEM Specialized 3D forged alloy, 4-bolt clamp, 6-degree rise, 31.8mm
BRAKES
BRAKE LEVERS Tektro Draco 2, hydraulic lever
FRONT BRAKE Tektro Draco 2, hydraulic disc, dual piston, 180mm rotor
REAR BRAKE Tektro Draco 2, hydraulic disc, dual piston, 160mm rotor
ACCESSORIES
PEDALS Composite platform, w/ reflectors, 9/16""
SUSPENSION
FORK RockShox XC28 29, TurnKey damping w/ lockout, coil spring, 1-1/8"" alloy steerer, 28mm stanchion, preload and rebound adj., S: 80mm, Others: 100mm travel

Geometry

Geometry Chart

Rockhopper - Geometry

  15.5 17.5 19 21 23
Stem Length 60mm 80mm 80mm 80mm 90mm
Crank Length 170mm 175mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm 400mm
Handlebar Width 700mm 700mm 700mm 700mm 700mm
Seat Tube Angle (Effective) 73° 73° 73° 73° 73°
Reach 400mm 412mm 430mm 450mm 464mm
Stack 615mm 625mm 639mm 653mm 672mm
Chainstay Length 442mm 442mm 442mm 442mm 442mm
Bottom Bracket Drop 63.5mm 63.5mm 63.5mm 63.5mm 63.5mm
Head Tube Angle 71° 71° 71° 71° 71°
Head Tube Length 110mm 100mm 115mm 130mm 150mm
Top Tube Length (Actual) 550mm 572mm 594mm 621mm 644mm
Top Tube Length (Horizontal) 576mm 603mm 625mm 650mm 670mm
Seat Tube Length, Center to Top 394mm 445mm 483mm 533mm 584mm
Standover Height 760mm 796mm 825mm 859mm 896mm
Wheel Base 1064mm 1091mm 1114mm 1139mm 1160mm
Seat Tube Angle (Actual) 73° 72° 72° 72° 73°
Bottom Bracket Height 310mm 310mm 310mm 310mm 310mm
