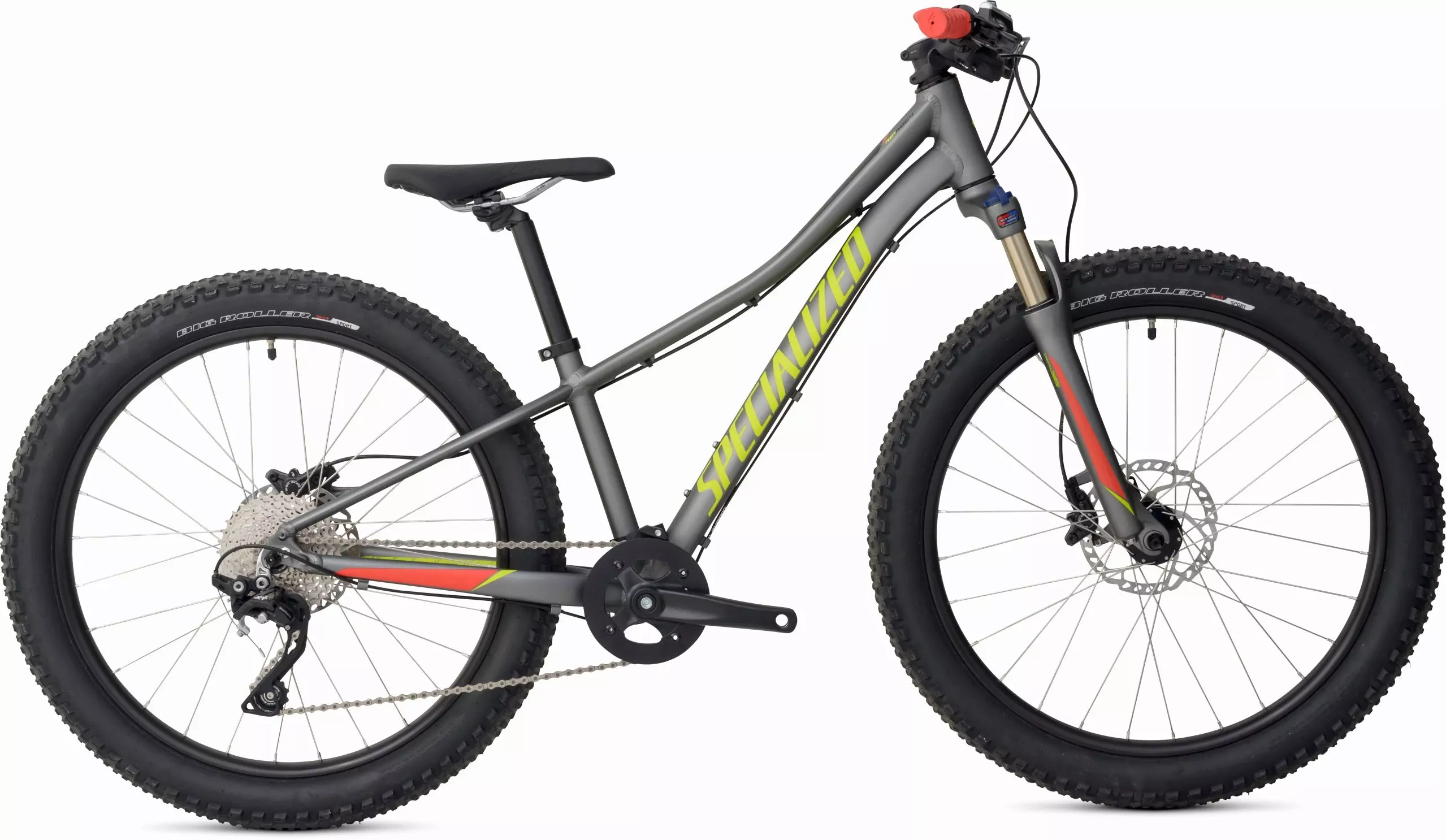

Riprock Expert 24
$1,000.00
Part No.

Riprock Expert 24

$1,000.00
Part No.  128914
load-spinner
Riprock Expert 24
Overview
Technical Specifications
Geometry
Reviews

Riding a bike is all about freedom, so no matter your age, your little one should never feel inhibited by where they can and can't ride. Problem, solution— meet the Riprock 24.

With 24-inch wheels and wide 2.8" tires, your kid will be able to rip and rock on any terrain that they come across. The tires are the hallmark of the bike, delivering traction, control, and confidence in spades. The custom suspension fork, meanwhile, absorbs all of the rough stuff that comes with riding off-road.

Finally, with powerful mechanical disc brakes, and a low standover that all but guarantees a perfect fit, you can rest assured that the Riprock 24 is the perfect recipe for fun that your family has been looking for.

  • The A1 premium aluminum frame is lightweight and built to withstand the tough use by kids, while the geometry features an ultra-low standover that makes it easy for your little ones to fit on and grow with the bike.
  • Custom SR Suntour XCT fork features 70mm of smooth, air-sprung travel for rough terrain, while a hydraulic lockout will make climbing significantly easier for your little one.
  • The 2.8-inch Big Roller tires not only ensure exceptional traction, but also offer greater ride quality, stability, and loads of fun.

Technical Specifications

BOTTOM BRACKET
BSA, square taper, cartridge bearings 16
SEAT BINDER
Bolt type, alloy, 31.8mm 3
FORK
SR Suntour XCT, Multi-Circuit Damping, air spring, 70mm travel, hydraulic lockout 2
FRONT BRAKE
Shimano Deore, hydraulic disc, resin pads, 6-bolt, 160mm rotor 22
INNER TUBES
Schrader valve 10
CASSETTE
Sunrace, 10-Speed, 11-36t 12
CHAINRINGS
Aluminum, 32T 15
REAR BRAKE
Shimano Deore, hydraulic disc, resin pads, 6-bolt, 160mm rotor 23
SPOKES
Stainless, 14g 7
FRAME
Specialized A1 Premium Aluminum, single-butted, ZeroStack head tube, 135mm rear hub spacing, forged dropouts, replaceable derailleur hanger 1
REAR TIRE
Big Roller, 24x2.8", 60 TPI, wire bead 9
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp 17
HANDLEBARS
Double butted aluminum, 9-degree backsweep, 4-degree upsweep, 600mm width, 31.8mm 18
GRIPS
Specialized Body Geometry XCT, lock-on 19
CHAIN
KMC, X10, EPT anti-corrosion coating, 10-speed w/ Missing Link™ 13
SADDLE
Specialized Henge Comp, 143mm, Cr-Mo rails 20
FRONT HUB
Alloy, 6-bolt disc, 110mm spacing, sealed cartridge bearings, QR, 28h 5
CRANKSET
Forged alloy, 104mm BCD, 152mm 14
REAR HUB
Alloy, 6-bolt disc, 135mm spacing, 10-speed freehub, sealed cartridge bearings, QR, 28h 6
PEDALS
Nylon platform w/ reflectors 24
REAR DERAILLEUR
Shimano XT, 10-Speed, GS Cage, Shadow design 11
SEATPOST
Alloy, single-bolt, 27.2mm 21
RIMS
24", double-wall aluminum, 28h 4
FRONT TIRE
Big Roller, 24x2.8", 60 TPI, wire bead 8

Geometry

Geometry Chart

Riprock - Geometry

11
  11
Crank Length 152mm
Stem Length 60mm
Seatpost Length 300mm
Saddle Width 143mm
Handlebar Width 600mm
Top Tube Length, Horizontal 510mm
Reach 336.5mm
Wheelbase 989mm
Chainstay Length 420mm
BB Drop 61mm
BB Height 264mm
Seat Tube Angle 73°
Head Tube Angle 69°
Rake 40mm
Head Tube Length 115mm
Seat Tube Length, Center to Top 567mm
Standover Height 608mm
