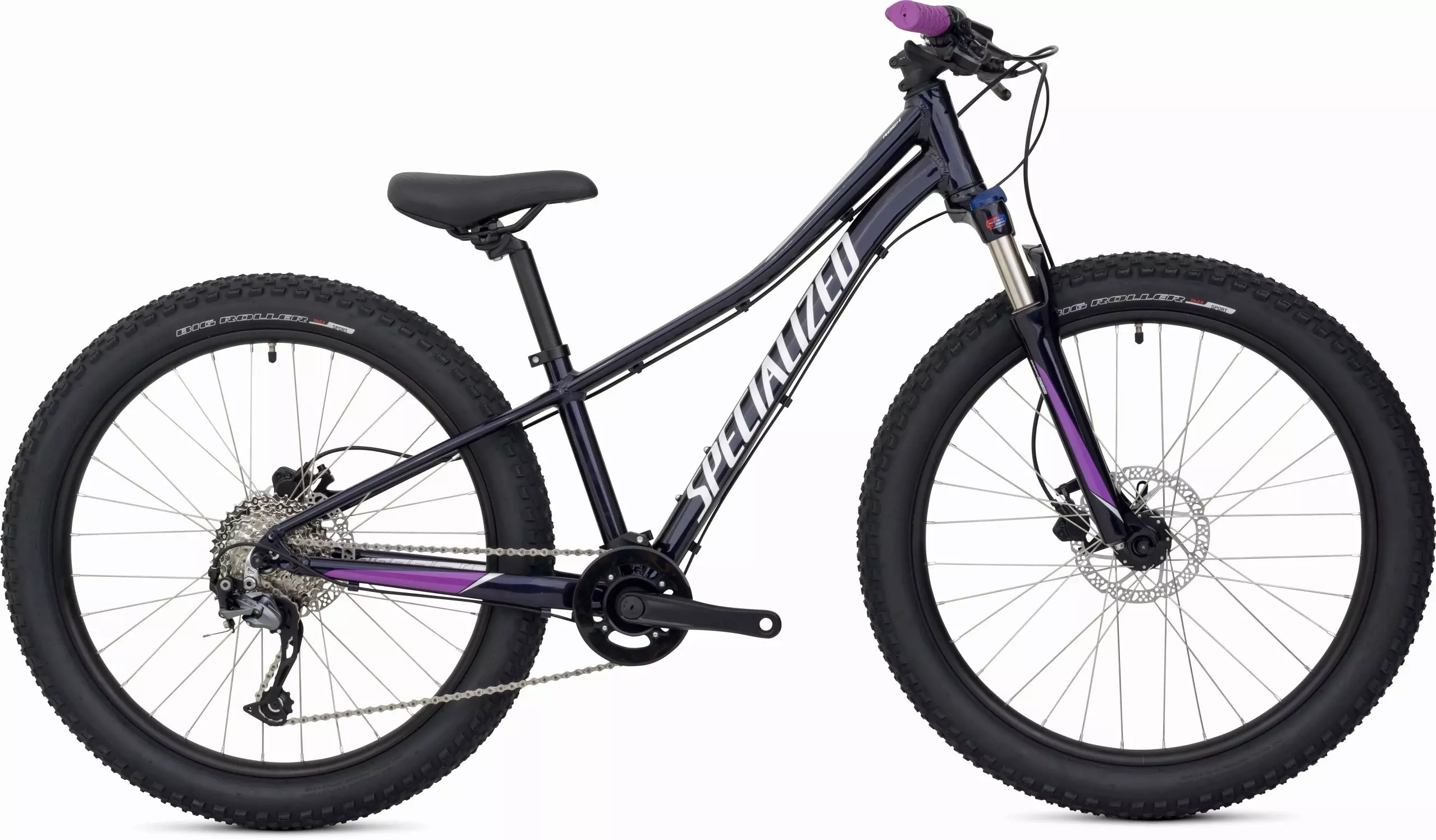

Big tires make for big fun, let alone a boost in confidence, control, and traction. And with our all-new Riprock Comp 24, your kid is going to get all of the above at the hands of 2.8-inch tires.
This means that they'll be able to rip around and get their feet wet, trail riding with ease. And with powerful hydraulic disc brakes, they'll be able to do it safely, too. Add to this a full deck of Shimano shift components, plus a custom air-sprung fork, and you have the perfect mountain bike to get your little ones started on a lifetime of shredding.
- The A1 premium aluminum frame is lightweight and built to withstand the tough use by kids, while the geometry features an ultra-low standover that makes it easy for your little ones to fit on and grow with the bike.
- Custom SR Suntour XCT fork features 70mm of smooth, air-sprung travel for rough terrain, while a hydraulic lockout will make climbing significantly easier for your little one.
- The 2.8-inch Big Roller tires not only ensure exceptional traction, but also offer greater ride quality, stability, and loads of fun.
Manual Downloads
Technical Specifications
FRAME
| Specialized A1 Premium Aluminum, single-butted, ZeroStack head tube, 135mm rear hub spacing, forged dropouts, replaceable derailleur hanger | 1 |
FORK
| SR Suntour XCT, Multi-Circuit Damping, air spring, 70mm travel, hydraulic lockout | 2 |
SEAT BINDER
| Bolt type, alloy, 31.8mm | 3 |
RIMS
| 24", double-wall aluminum, 32h | 4 |
FRONT HUB
| Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, QR, 32h | 5 |
REAR HUB
| Alloy, 6-bolt disc, 135mm spacing, 9-speed freehub, loose ball bearings, QR, 32h | 6 |
SPOKES
| Stainless, 14g | 7 |
FRONT TIRE
| Big Roller, 24x2.8", 60 TPI, wire bead | 8 |
REAR TIRE
| Big Roller, 24x2.8", 60 TPI, wire bead | 9 |
INNER TUBES
| Schrader valve | 10 |
REAR DERAILLEUR
| Shimano Alivio, 9-Speed, SGS Cage, Shadow design | 11 |
SHIFT LEVERS
| Shimano Alivio, RapidFire Plus, 9-Speed w/ gear display | 12 |
CHAIN
| KMC X9EPT, 9-speed, anti-corrosion coating w/ reusable Missing Link™ | 14 |
CASSETTE
| Sunrace, 9-Speed, 11-36t | 13 |
CRANKSET
| Forged alloy, 152mm | 15 |
CHAINRINGS
| Steel, 30T | 16 |
BOTTOM BRACKET
| BSA, square taper, cartridge bearings | 17 |
STEM
| Specialized, 3D-forged alloy, 4-bolt, 6-degree rise, 31.8mm clamp | 18 |
HANDLEBARS
| Double butted aluminum, 9-degree backsweep, 4-degree upsweep, 600mm width, 31.8mm | 19 |
GRIPS
| Specialized Body Geometry XCT, lock-on | 20 |
SADDLE
| Specialized Kids Henge | 21 |
SEATPOST
| Alloy, single-bolt, 27.2mm | 22 |
FRONT BRAKE
| Tektro Auriga, hydraulic disc, resin pads, 160mm/6-bolt rotor | 23 |
REAR BRAKE
| Tektro Auriga, hydraulic disc, resin pads, 160mm/6-bolt rotor | 24 |
PEDALS
| Nylon platform w/ reflectors | 25 |
* Specifications are subject to change without notice
Geometry
Riprock - Geometry
| 11 | |
|---|---|
| Crank Length | 152mm |
| Stem Length | 60mm |
| Seatpost Length | 300mm |
| Handlebar Width | 600mm |
| Reach | 336.5mm |
| Top Tube Length, Horizontal | 510mm |
| Wheelbase | 989mm |
| Chainstay Length | 420mm |
| BB Drop | 61mm |
| BB Height | 264mm |
| Seat Tube Angle | 73° |
| Rake | 40mm |
| Head Tube Angle | 69° |
| Head Tube Length | 115mm |
| Seat Tube Length, Center to Top | 567mm |
| Standover Height | 608mm |
