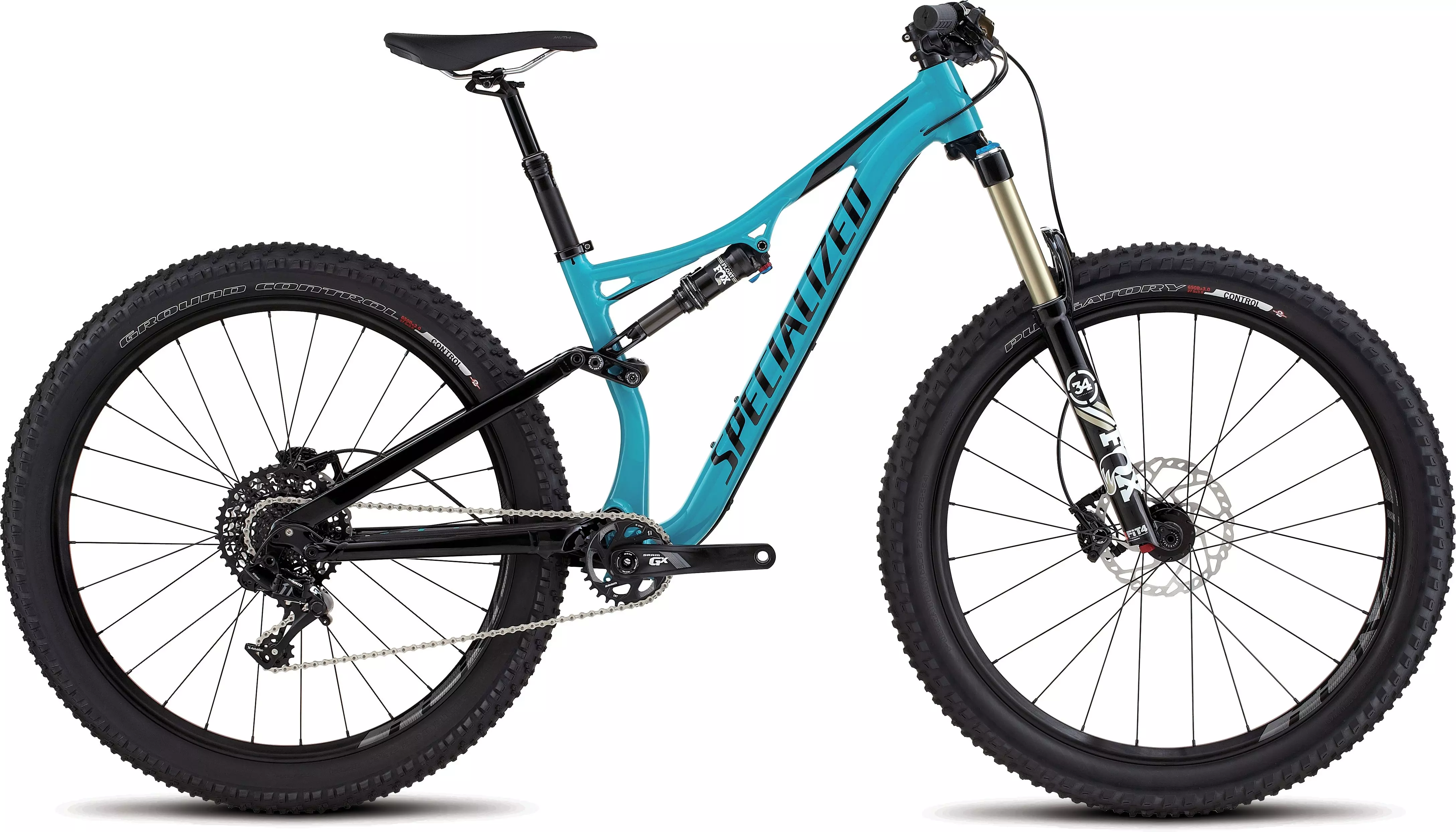

Rhyme FSR Comp 6Fattie
$3,500.00
Part No.

Rhyme FSR Comp 6Fattie

$3,500.00
Part No.  107260
load-spinner
Rhyme FSR Comp 6Fattie
Overview
Technical Specifications
Geometry
Reviews
We all know a value when we see it, but sadly, value and performance rarely come together. Our Rhyme FSR Comp 6Fattie, however, is guaranteed to take your trail riding to the next level—all without breaking the bank. We included size-specific components to completely tailor the bike to women. Then, of course, came the debut of our all-new 6Fattie Wheel System. It takes 650b wheels and wraps them in 3.0" tires in order to achieve levels of traction, control, and floatation that'll shake your idea of trail riding to the core. And when you combine a mix of SRAM and Shimano's most durable components with our control-boosting 6Fattie Trail Geometry and a pressure-relieving Body Geometry Myth saddle, we're confident that you're looking at the future of trail bikes.
  • The M5 alloy Trail Chassis with a Rhyme FSR 6Fattie rear end with 148mm spacing blends blends durability, stiffness, and light weight, while 135mm of travel and Trail 650b Geometry provide more than capable handling.
  • Connected with our FSR 6-Pack Linkage, a custom FOX FLOAT Performance DPS rear shock features AUTOSAG for easy setup and 135mm of plush, adjustable suspension, while our Women's Rx Tune provides a more supple, responsive, and efficient feel for climbing up and descending down the trail.
  • Roval 650b rims have an ultra-wide 29mm internal width and an alloy construction for increased durability, stability, and speed down the trail.
  • Every component and touchpoint of the bike, from the handlebars to saddle to the crankarm length, is tailored for both women and rider size.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, 7050 alloy, single bolt, 34.9mm
HEADSET Hella Flush, 1-1/8"" and 1-1/2"" threadless, Campy style upper w/ 1-1/2"" lower, cartridge bearings
FRAME M5 alloy, Trail 6Fattie Geometry, internal cable routing, 148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 135mm travel
WHEELS
FRONT HUB Specialized, Hi Lo disc, sealed cartridge bearings, 15x110mm thru-axle, 24h
REAR HUB Specialized, Hi Lo disc, 4x sealed cartridge bearings, 12x148mm thru-axle, 28h
INNER TUBES Standard, Presta valve
SPOKES DT Swiss Industry, stainless
RIMS Roval Traverse 650b, alloy, disc, 29mm wide, 24/28h
FRONT TIRE Specialized 6Fattie Purgatory Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0""
REAR TIRE Specialized 6Fattie Ground Control, 60TPI, 2Bliss Ready, folding bead, 650bx3.0""
DRIVETRAIN
BOTTOM BRACKET SRAM, PF30, OS press-in bearings, sealed cartridge
CHAIN KMC X11L, 11-speed, w/ reusable MissingLink
CRANKSET Custom SRAM GX-1000, PF30 spindle, 28T, direct mount
CASSETTE SRAM XG-1150, 11-speed, 10-42t
SHIFT LEVERS SRAM GX, 11-speed, trigger
REAR DERAILLEUR SRAM GX X Horizon, 11-speed, alloy cage
COCKPIT
SADDLE Body Geometry Women's Myth Comp, hollow Cr-Mo rails, 155mm
SEATPOST Command Post IRcc, cruiser control technology, micro-adjust height adjustable, alien head design, bottom mount cable routing, remote adjust SRL lever, 30.9mm, XS/S: 75mm travel, M: 100mm travel
GRIPS Specialized Sip Grip, lock-on, half-waffle, regular thickness
HANDLEBARS Specialized, butted 6000 alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 720mm, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 6-degree rise
BRAKES
BRAKE LEVERS Shimano Deore BL-M615, I-spec compatible
FRONT BRAKE Shimano Deore, hydraulic disc, Ice-Tech resin pads w/ fins
REAR BRAKE Shimano Deore, hydraulic disc, Ice-Tech resin pads w/ fins
ACCESSORIES
PEDALS Nylon, CEN std., w/ toe clips
SUSPENSION
FORK FOX 34 Plus Performance, 150mm travel, 3-position compression adjust, tapered steerer, 51mm offset, 15mm thru-axle
REAR SHOCK FOX FLOAT Performance DPS, AUTOSAG, Women's Rx Trail Tune, 196.9x47.6mm

Geometry

Geometry Chart

Rhyme - Geometry

XS S M
  XS S M
Stem Length 45mm 45mm 60mm
Crank Length 165mm 170mm 175mm
Seatpost Length 350mm 350mm 390mm
Handlebar Width 720mm 720mm 720mm
Reach 371mm 386mm 413mm
Stack 616mm 618mm 618mm
Wheelbase 1106mm 1122mm 1149mm
Bike Stand-Over Height 732mm 754mm 761mm
Head-Tube Length 95mm 95mm 95mm
Front-Center 673mm 687mm 714mm
Fork Rake/Offset 51mm 51mm 51mm
Head-Tube Angle 67° 67° 67°
Trail 97mm 97mm 97mm
B-B Height 331mm 331mm 331mm
Chain-Stay Length 437mm 437mm 437mm
Fork Length (full) 560mm 560mm 560mm
Seat-Tube Angle 74.5° 74° 74°
B-B Drop 33mm 33mm 33mm
Seat-Tube Length 386mm 396mm 430mm
Top-Tube Length (horizontal) 538mm 563mm 590mm

Reviews
