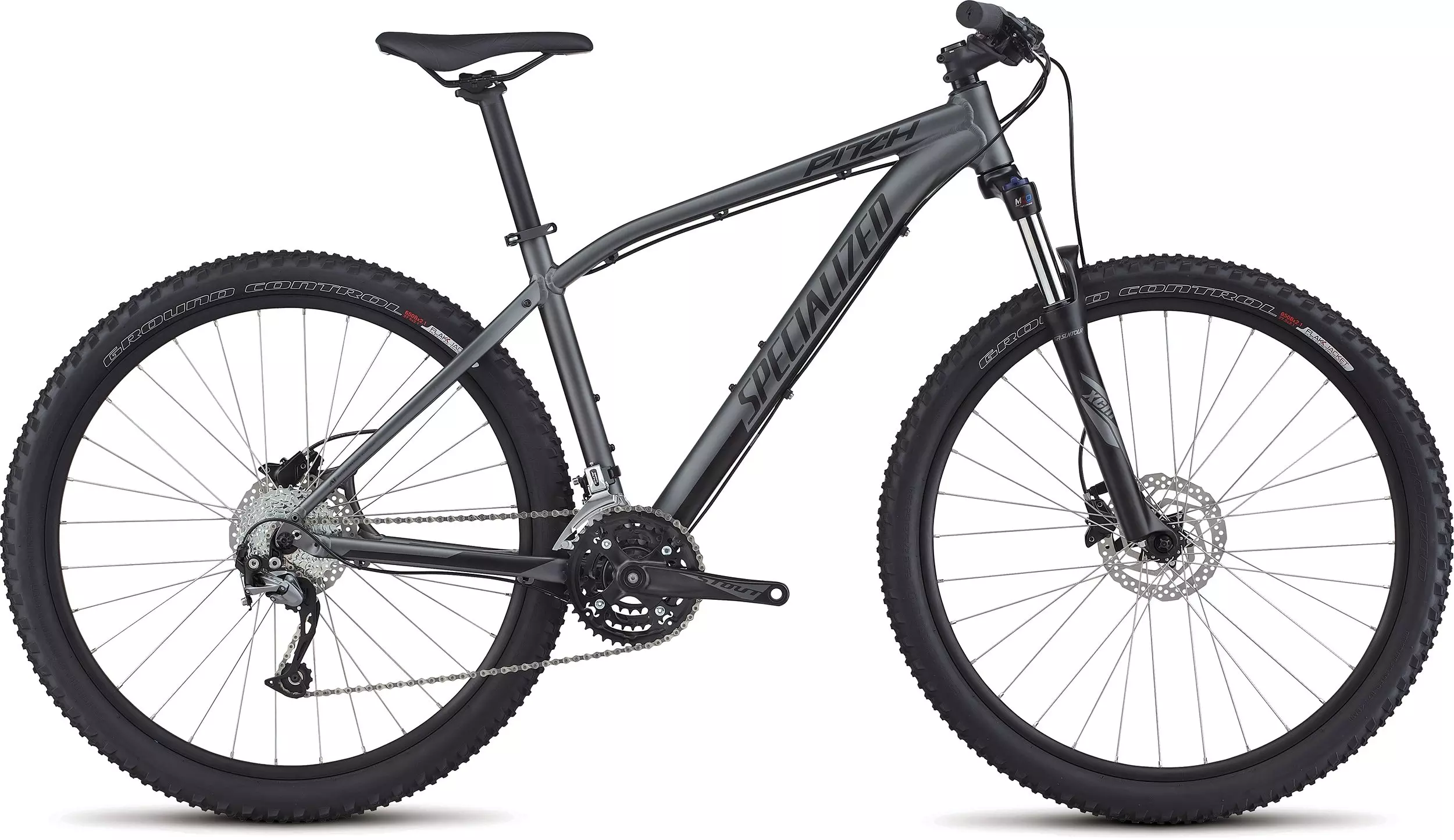

We know that picking a mountain bike can be a bit of daunting process, what with all of the options and technology floating around out there. But while some suspension platforms and tech pass like fads in the wind, hardtails have stuck around since the advent of the mountain bike. That's why we built our Pitch Sport 650b around an aluminum hardtail design. The design allows the rear end to stay planted while you're pedaling, so it has plenty to offer in the way of efficiency on climbs and on the flats. And with our acclaimed Sport Trail 650b Geometry and ample suspension up front, you're guaranteed to feel confident and ready to rip when the trail tips downwards. It's everything you need to get there and get riding.
- The frame is constructed from lightweight A1 Premium Aluminum in order to provide a compliant, durable platform to support our acclaimed Sport Trail 650b Geometry. Combined, you get a bike that's extremely versatile, making it equally capable on the climbs and descents.
- Custom SR Suntour 650b fork pairs a coil spring with our Multi-Circuit Damping technology to eliminate any "pogo" effect by delivering 80/100mm (size-specific) of hydraulic damped suspension that smooths out rough terrain.
- A Shimano Alivio rear derailleur controls the rear shifting with durable aplomb. It shifts along a wide gear range, 11-34t, so you can ride confidently knowing that you'll always have the right gear for the hill at hand.
|FRAME||Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger|
|SEAT BINDER||Alloy, QR clamp, 31.8mm|
|FORK||SR Suntour XCM 650b, coil spring, custom Multi-Circuit Damping, 80/100mm of travel (size specific)|
|RIMS||Stout 650b, alloy, disc only, double-wall, 25mm inner width, 32h|
|FRONT HUB||Shimano Center Lock, disc, 9x100mm QR, 32h|
|REAR HUB||Shimano Center Lock, disc, 10x135mm QR, 32h|
|FRONT TIRE||Ground Control Sport, 650bx2.1"", 60TPI, wire bead, Flak Jacket protection|
|REAR TIRE||Ground Control Sport, 650bx2.1"", 60TPI, wire bead, Flak Jacket protection|
|FRONT DERAILLEUR||Shimano Altus, 34.9mm clamp, down-swing|
|REAR DERAILLEUR||Shimano Alivio, Shadow design, SGS cage|
|SHIFT LEVERS||Shimano Altus, 8-speed|
|CASSETTE||Sunrace, 8-speed, 11-34t|
|CHAIN||KMC X8, 8-speed w/reusable MissingLink|
|CRANKSET||Stout, forged alloy construction|
|BOTTOM BRACKET||Square taper, 73mm, internal bearings|
|STEM||Stout 3D-forged alloy, 31.8mm, 6-degree rise|
|HANDLEBARS||Stout bar, 15mm rise, 9-degree backsweep, 5-degree upsweep, 720mm width, 31.8mm|
|GRIPS||Specialized MTB Grip, lock-on|
|SADDLE||Body Geometry mountain, steel rails, 143mm|
|SEATPOST||Alloy, 12mm offset, 2-bolt clamp, 30.9mm|
|FRONT BRAKE||Shimano BR-M315, hydraulic disc, resin pads|
|REAR BRAKE||Shimano BR-M315, hydraulic disc, resin pads, 160mm rotor|
* Specifications are subject to change without notice
Pitch - Geometry
|Bike Stand-Over Height||694mm||733mm||780mm||792mm||835mm|
|Fork Length (full)||475mm||475mm||475mm||475mm||475mm|
|Top-Tube Length (horizontal)||536mm||557mm||587mm||606mm||632mm|
