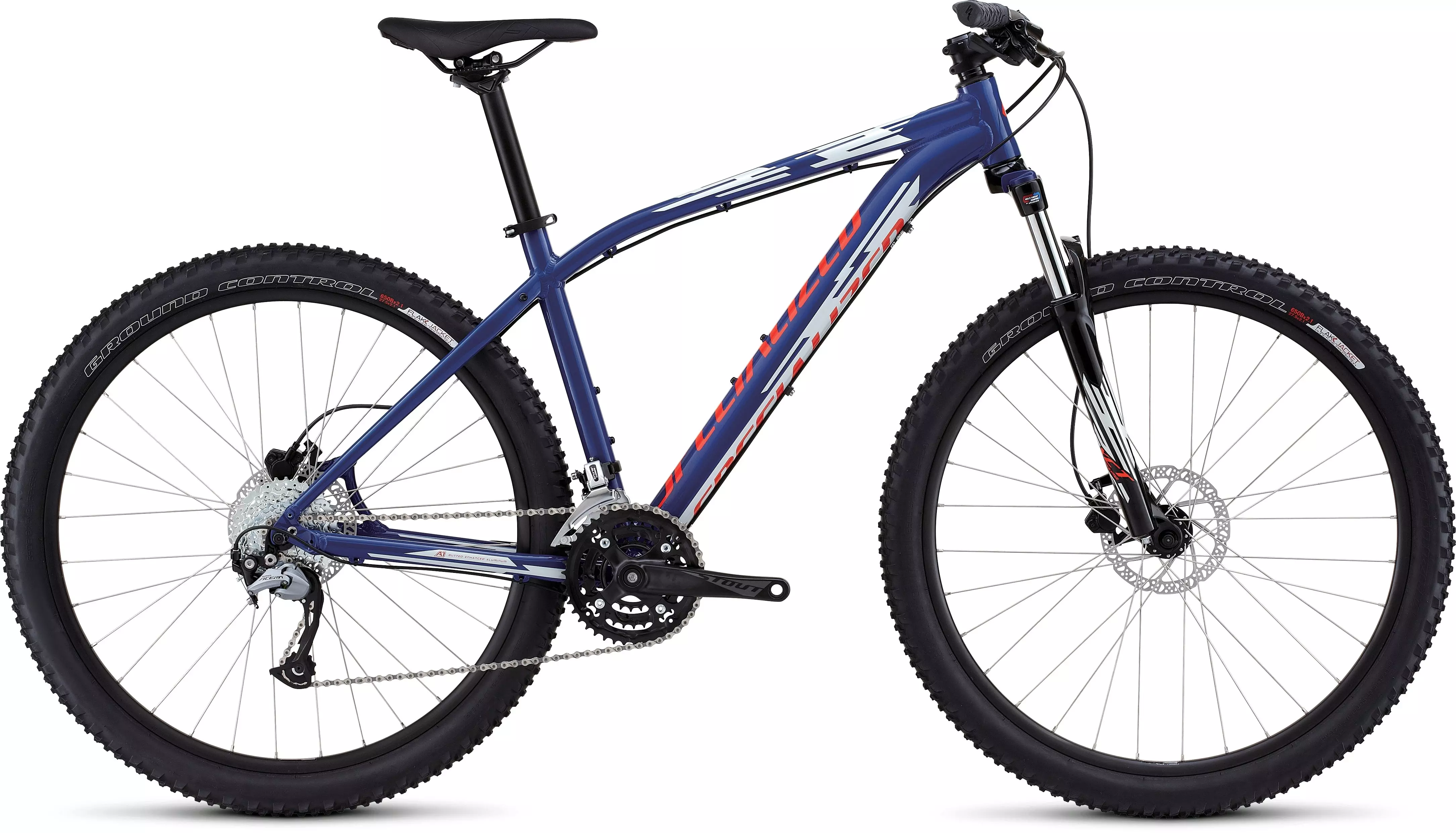

Pitch Sport 650b
Part No.

Pitch Sport 650b

Part No.
load-spinner
Pitch Sport 650b
Overview
Technical Specifications
Reviews
We know that picking a mountain bike can be a bit of daunting process, what with all of the options and technology floating around out there. But while some suspension platforms and tech pass like fads in the wind, hardtails have stuck around since the advent of the mountain bike. That's why we built our Pitch Sport 650b around an aluminum hardtail design. The design allows the rear end to stay planted while you're pedaling, so it has plenty to offer in the way of efficiency on climbs and on the flats. And with our acclaimed Sport Trail 650b Geometry and ample suspension up front, you're guaranteed to feel confident and ready to rip when the trail tips downwards. It's everything you need to get there and get riding.
  • The frame is constructed from lightweight A1 Premium Aluminum in order to provide a compliant, durable platform to support our acclaimed Sport Trail 650b Geometry. Combined, you get a bike that's extremely versatile, making it equally capable on the climbs and descents.
  • 650b alloy rims have been laced to our Stout hubs to form wheels that allow you mow over everything in sight, climb gracefully, and get to the bottom of the trail eager for more.
  • With reliable traction, puncture-resistance, and sheer speed over the dirt, our 650bx2.1" Ground Control Sport tires will keep you rolling with confidence over almost any terrain.
  • Custom SR Suntour XCT 650b fork pairs a coil spring with our Multi-Circuit Damping technology to eliminate any "pogo" effect by delivering 80/100mm (size-specific) of hydraulic damped suspension and rebound that smooths out rough terrain.

Technical Specifications

DRIVETRAIN
CHAIN KMC X8, 8-speed, w/ reusable MissingLink
BOTTOM BRACKET Square taper, cartridge bearings
CRANKSET Specialized Stout, forged alloy, 8-speed, semi-replaceable rings, square taper spindle, 42/32/22T
FRONT DERAILLEUR Shimano Altus, high mount, bottom swing, dual pull
SHIFT LEVERS Shimano Altus RapidFire Plus, SL type, optical display
CASSETTE Sunrace, 8-speed, 11-34t
REAR DERAILLEUR Shimano Acera Shadow, 9-speed
SUSPENSION
FORK Custom SR Suntour XCT 650b, custom Multi-Circuit Damping, coil spring, S: 80mm travel, M/L/XL: 100mm travel, preload adjust, 1-1/8"" steerer, alloy lowers, Hi-Ten 28mm stanchions, disc mount
COCKPIT
SADDLE Body Geometry mountain, thick padding, steel rails, 143mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware
HANDLEBARS Specialized Stout, double-butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm
GRIPS Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end
STEM Specialized, 3D forged alloy, 4-bolt, 6-degree rise
WHEELS
FRONT HUB Specialized Stout, Hi Lo disc, alloy, double-sealed, ground race, QR, 32h
REAR HUB Specialized Stout, Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
INNER TUBES Standard, Schrader valve
SPOKES Stainless, 14g
RIMS 650b, disc, alloy, double-wall, pin joint, 25mm inner width, 32h
FRONT TIRE Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1""
REAR TIRE Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1""
BRAKES
FRONT BRAKE Tektro Auriga, hydraulic disc, resin/metallic pads
BRAKE LEVERS Tektro Auriga, hydraulic, reach adjust
REAR BRAKE Tektro Auriga, hydraulic disc, resin/metallic pads
ACCESSORIES
PEDALS Plastic, 9/16"", w/ reflectors
FRAMESET
HEADSET 1-1/8"" upper/lower, ZeroStack 44, steel cups, loose ball bearings
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 34.9mm
FRAME Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger
