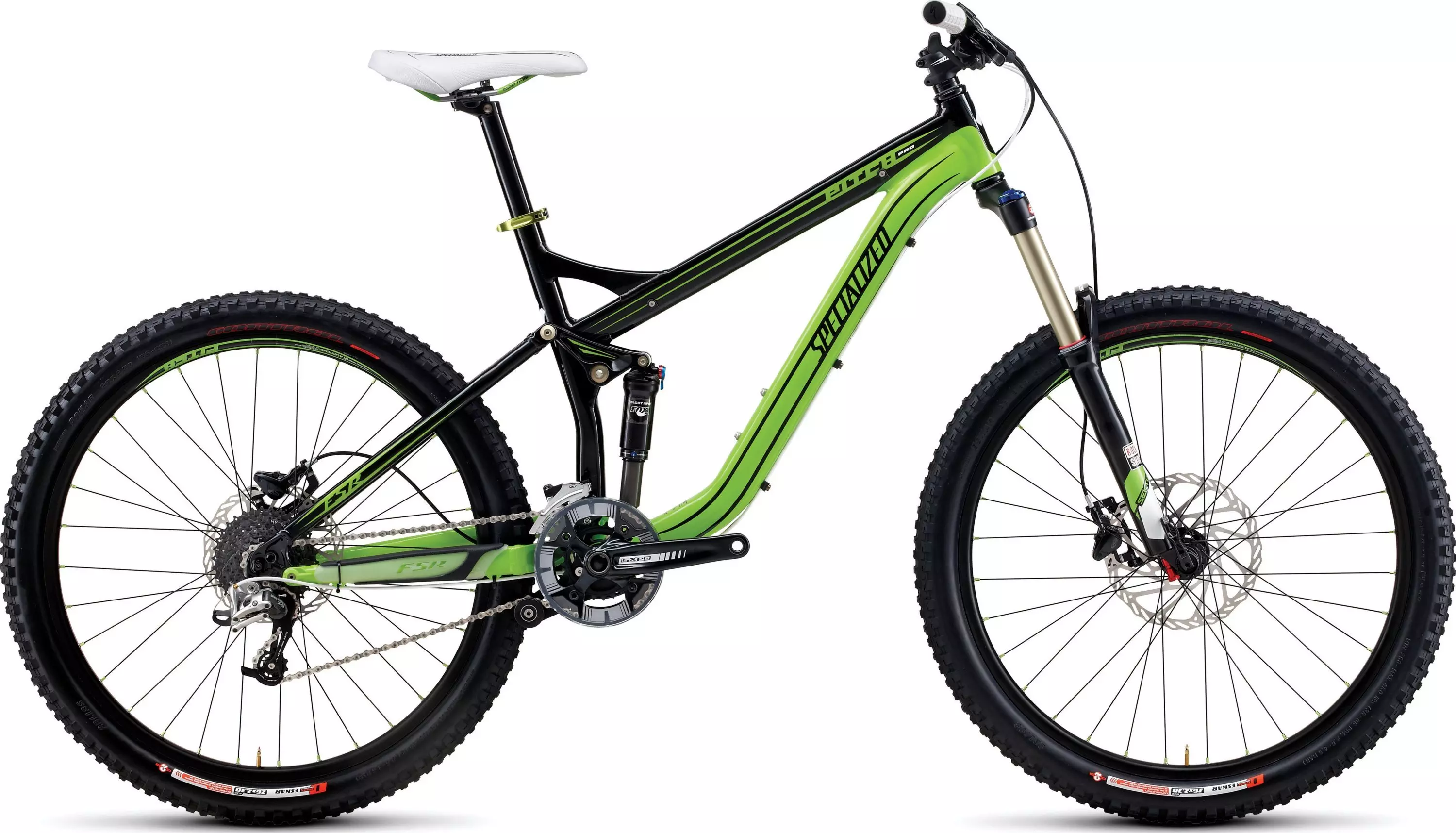

Pitch Pro
Overview
Technical Specifications
Geometry
Reviews
With sweeter suspension and higher performance parts, the Pitch Pro offers big returns on your all mountain investment.
  • Pitch disc-specific double wall rims with eyelets provide the durability needed for all-mountain terrain
  • Truvativ GXP2 2.1 2-piece crankset with 24/36t rings for stiffness, durability, and efficient climbing/descending
  • Custom Fox RP2 rear shock features external ProPedal and rebound damping control in a design that combines high performance with low weight
  • Custom Avid Elixir 5 SL hydraulic disc brakes/levers with G3 Clean Sweep rotors and alloy-backed organic pads for maximum stopping power and tool-free reach adjust
  • RockShox Sektor 150mm-travel Solo Air spring fork with lightweight alloy steerer, Motion Control damper, rebound adjust, and Maxle Lite thru-axle for consistency and durability

Technical Specifications

FRAMESET
SEAT BINDER 34.9mm clamp ID, 7050 hard annodized alloy collar w/ QR, black
HEADSET 1 1/8"" threadless, loose ball
FRAME M4 alloy, double ORE down tube, DMD front derailleur mount, sealed cartridge bearing pivots, bolt on cable guides, replaceable hanger, 150mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h
REAR HUB Specialized Hi Lo disc, laser-etched logo, double sealed cartridge bearing, QR, 32h
INNER TUBES Ultralight presta valve
SPOKES 1.8mm (15g) stainless
RIMS Pitch disc-specific, pin joint, eyelets, 26mm, 32h
FRONT TIRE Specialized Eskar Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x2.3""
REAR TIRE Specialized Eskar Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x2.3""
DRIVETRAIN
BOTTOM BRACKET SRAM GXP, outboard bearing
CHAIN KMC X9, 9-speed, w/ reuseable Missing Link
CRANKSET Truvativ GXP2 2.1, 2-piece crank set, outboard bearing, S: 170mm, M/L: 175mm
CASSETTE Shimano HG30, 9-speed, 11-34t
SHIFT LEVERS SRAM X.5, 9-speed, trigger
FRONT DERAILLEUR Shimano FD-M660-E SLX, double specific E-type for DMD, top swing, bottom pull
CHAINRINGS 36A x 24A, 4-bolt, 104/64mm
REAR DERAILLEUR SRAM X.9, 9-speed, mid cage
COCKPIT
SADDLE Specialized BG Enduro, 7mm steel rails
SEATPOST 6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, S/M:350mm, others:400mm
GRIPS Specialized lock-on, S/M: Grappler, Other: Rocca
HANDLEBARS Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8 degree back sweep, 6 degree up, 31.8mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
BRAKES
BRAKE LEVERS Avid Elixir 5 hydraulic, tool-less reach adj.
FRONT BRAKE Custom Avid Elixir 5 R SL, hydraulic disc, tool-less reach adj., alloy backed organic pads, G3 Clean Sweep rotor, 203mm
REAR BRAKE Custom Avid Elixir 5 R SL, hydraulic disc, tool-less reach adj., alloy backed organic pads, G3 Clean Sweep rotor, 185mm
ACCESSORIES
PEDALS Resin Test Ride Pedals with toe clips, CEN std.
SUSPENSION
FORK Custom RockShox Sektor RL, Motion Control damper, Solo Air, alloy steerer, reb adj., 20mm Maxle Lite axle, 150mm travel
REAR SHOCK Fox RP2, 2 position shock with ProPedal, rebound adj., 7.875x2.25""

Geometry

Geometry Chart

Pitch - Geometry

S M L XL
  S M L XL
Stem Length 60mm 60mm 75mm 90mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 720mm 720mm 720mm 720mm
Reach 428mm 446mm 475mm 495mm
Stack 575mm 581mm 600mm 620mm
Chainstay Length 423mm 423mm 423mm 423mm
Top Tube Length (Actual) 553mm 574mm 606mm 632mm
Ground-Top 904mm 910mm 926mm 948mm
Top Tube Length (Horizontal) 565mm 586mm 620mm 645mm
Head Tube Angle - Low Setting 67° 67° 67° 67°
Standover Height 740mm 752mm 759mm 765mm
Wheel Base 1138mm 1159mm 1196mm 1223mm
Head Tube Height 102mm 108mm 128mm 150mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73°
Seat Tube Length - Center to Top 420mm 444mm 484mm 535mm
Seat Tube Angle (Effective) - Low Setting 76° 76° 76° 76°
Bottom Bracket Height - Low Setting 345mm 345mm 345mm 345mm
