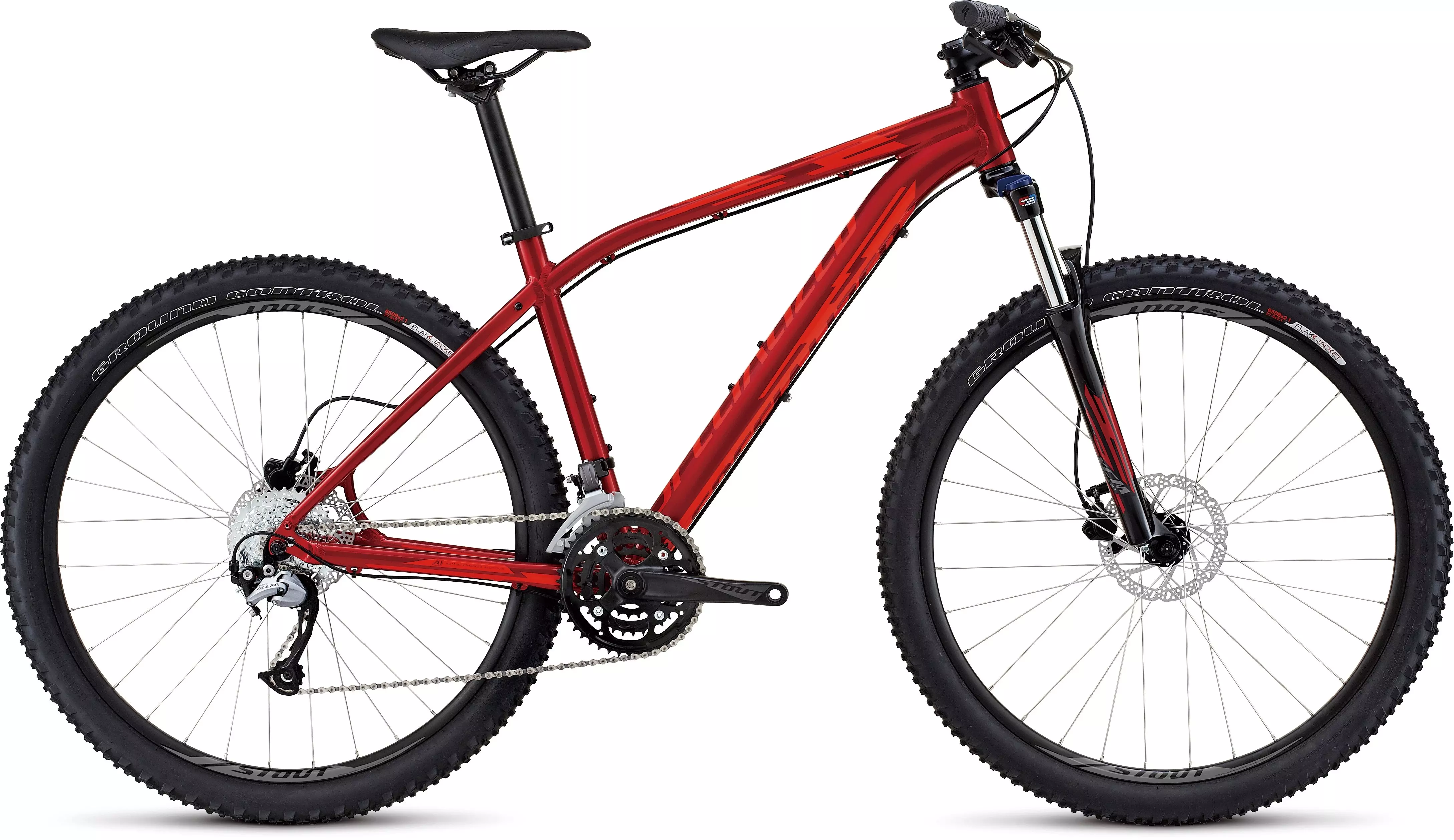

Pitch Comp 650b
$800.00
Part No.

Pitch Comp 650b

$800.00
Part No.  106498
load-spinner
Pitch Comp 650b
Overview
Technical Specifications
Geometry
Reviews
There's no better time to get out and hit the trail than right now, and with a bike like the Pitch Comp 650b, this is truer than ever. It features a hardtail design that makes it efficient at climbing and rolling on the flats, while being sturdy and dependable on descents. Meanwhile, our Sport Trail 650b Geometry has been paired with an aluminum construction to provide plenty of comfort and confidence over nearly any kind of terrain. And to make sure that your investment in dirt is going to last for the long haul, we've thoughtfully selected components that place a focus on durability and performance. Get ready to roll, the dirt is calling.
  • The frame is constructed from lightweight A1 Premium Aluminum in order to provide a compliant, durable platform to support our acclaimed Sport Trail 650b Geometry. Combined, you get a bike that's extremely versatile, making it equally capable on the climbs and descents.
  • 650b alloy rims have been laced to our Stout hubs to form wheels that allow you mow over everything in sight, climb gracefully, and get to the bottom of the trail eager for more.
  • With reliable traction, puncture-resistance, and sheer speed over the dirt, our 650bx2.1" Ground Control Sport tires will keep you rolling with confidence over almost any terrain.
  • Custom SR Suntour XCM 650b fork features our Multi-Circuit Damping technology to eliminate any "pogo" effect by delivering 80/100mm (size-specific) of hydraulic damped suspension and rebound that smooths out rough terrain.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 34.9mm
HEADSET 1-1/8"" upper/lower, ZeroStack 44, steel cups, loose ball bearings
FRAME Specialized A1 Premium Aluminum, Sport Trail 650b Geometry, butted tube sets, externally relieved head tube, forged dropouts, reinforced disc mount, replaceable alloy derailleur hanger
WHEELS
FRONT HUB Specialized Stout, Hi Lo disc, alloy, double-sealed, ground race, QR, 32h
REAR HUB Specialized Stout, Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
INNER TUBES Standard, Schrader valve
SPOKES Stainless, 14g
FRONT TIRE Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1""
RIMS Specialized Stout 650b, disc, alloy, double-wall, pin joint, 25mm inner width, 32h
REAR TIRE Specialized Ground Control Sport, 60TPI, wire bead, 650bx2.1""
DRIVETRAIN
BOTTOM BRACKET Square taper, cartridge bearings
CHAIN KMC X9, 9-speed, w/ reusable MissingLink
CRANKSET Specialized Stout, forged alloy, 9-speed, square taper spindle, 44/32/22T
CASSETTE Sunrace, 9-speed, 11-34t
SHIFT LEVERS Shimano Altus RapidFire Plus, SL type, optical display
FRONT DERAILLEUR Shimano Altus, high mount, bottom swing, dual pull
REAR DERAILLEUR Shimano Acera Shadow, 9-speed
COCKPIT
SADDLE Body Geometry mountain, thick padding, steel rails, 143mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware
GRIPS Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end
HANDLEBARS Specialized Stout, double-butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm
STEM Specialized, 3D forged alloy, 4-bolt, 6-degree rise
BRAKES
BRAKE LEVERS Tektro Auriga, hydraulic, reach adjust
FRONT BRAKE Tektro Auriga, hydraulic disc, resin/metallic pads
REAR BRAKE Tektro Auriga, hydraulic disc, resin/metallic pads
ACCESSORIES
PEDALS Plastic, 9/16"", w/ reflectors
SUSPENSION
FORK Custom SR Suntour XCM 650b, custom Multi-Circuit Damping, coil spring, S: 80mm travel, M/L/XL: 100mm travel, preload adjust, 1-1/8"" steerer, alloy lowers, Hi-Ten 30mm stanchions, disc mount

Geometry

Geometry Chart

Pitch - Geometry

XS S M L XL
  XS S M L XL
Stem Length 60mm 60mm 70mm 80mm 90mm
Crank Length 170mm 170mm 175mm 175mm 175mm
Seatpost Length 300mm 350mm 350mm 400mm 400mm
Handlebar Width 700mm 700mm 720mm 720mm 720mm
Reach 370mm 391mm 410mm 429mm 449mm
Stack 580mm 580mm 580mm 580mm 599mm
Wheelbase 1025mm 1046mm 1065mm 1084mm 1110mm
Bike Stand-Over Height 694mm 733mm 780mm 792mm 835mm
Head-Tube Length 100mm 100mm 100mm 100mm 120mm
Front-Center 605mm 626mm 645mm 664mm 690mm
Fork Rake/Offset 42mm 42mm 42mm 42mm 42mm
Head-Tube Angle 70.5° 70.5° 70.5° 70.5° 70.5°
Trail 79mm 79mm 79mm 79mm 79mm
B-B Height 301mm 301mm 301mm 301mm 301mm
Chain-Stay Length 425mm 425mm 425mm 425mm 425mm
Fork Length (full) 475mm 475mm 475mm 475mm 475mm
Seat-Tube Angle 74° 74° 73° 73° 73°
B-B Drop 48mm 48mm 48mm 48mm 48mm
Seat-Tube Length 330mm 394mm 444mm 460mm 510mm
Top-Tube Length (horizontal) 536mm 557mm 587mm 606mm 632mm
