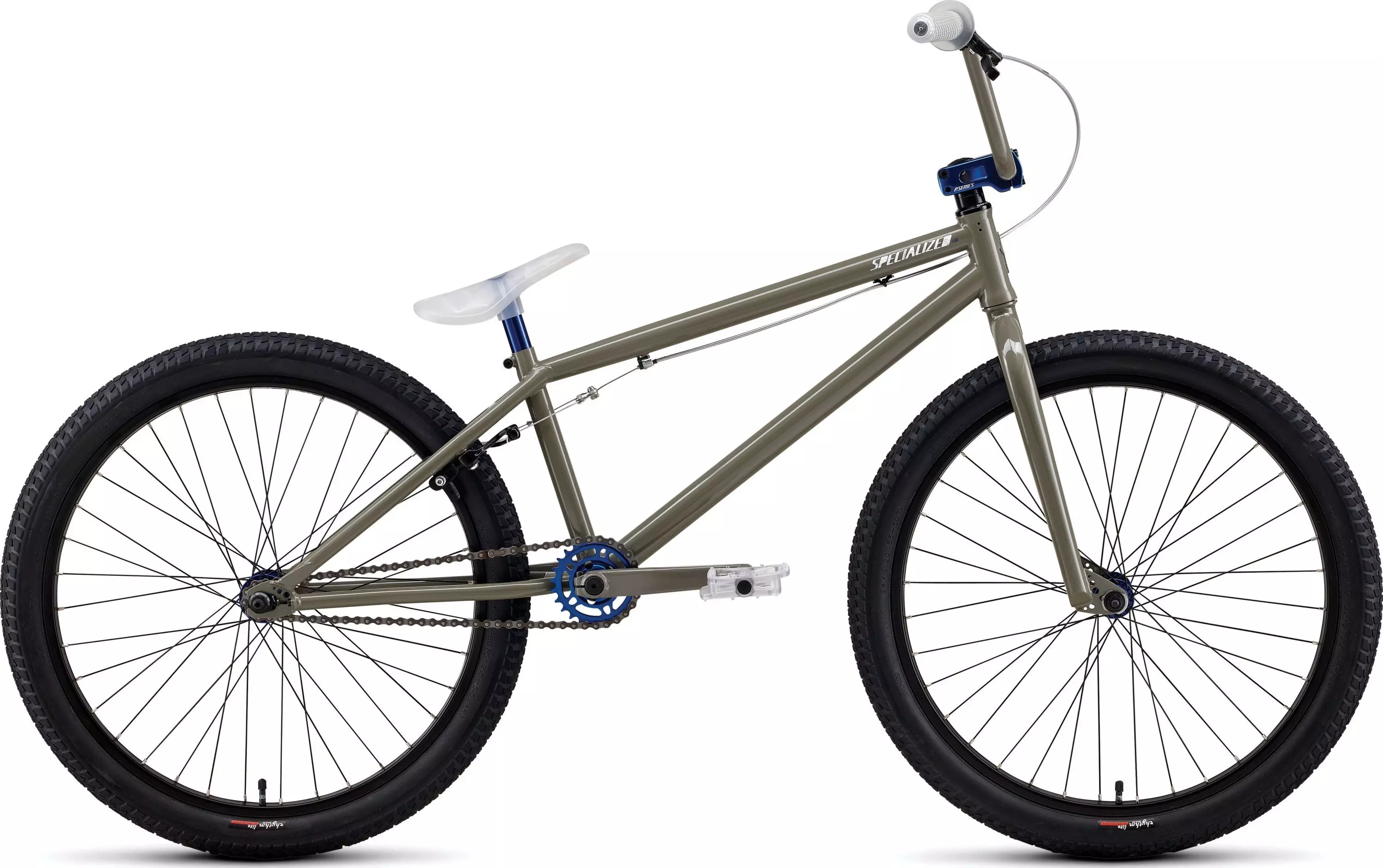

2011 P.24

Part No.: 8119-4121

0 Reviews

Whether you call it a progressive hardtail or a 24" cruiser, the P.24 is rock solid…

Color:

Green

Size:

One Size

Product Details

Whether you call it a progressive hardtail or a 24" cruiser, the P.24 is rock solid with a double-butted Reynolds100% Cr-Mo frame, butted Cr-Mo fork with tapered steerer, Cr-Mo bars, and Cr-Mo 3-piece cranks.

One-piece saddle/post combo can take a serious beating and is the lightest set-up possible
P. Series butted Cr-Mo fork with tapered steerer is light, but strong enough to handle going big
Big 7-1/2" x 29" Cr-Mo handlebars make your set-up current and give you more leverage and control
High volume and impact-absorbing Specialized Rhythm Lite 2.2" tires give you the versatility to ride dirt or street
Lightweight plastic platform pedals take mercy on your shins, but remain strong enough to handle even the harshest landing
3-piece tubular Cr-Mo crankset with cartridge-bearing MID BB lets you boost as high as you like, 25t CNC-cut chainring improves clearance, resists bending, and cuts weight
Lightweight 24" Reynolds 520 Cr-Mo cruiser frame with 21.6" top tube, integrated headset, MID BB, and removable brake bosses/guides has dialed geos for dirt, park, or street
36-hole double-wall rims are laced to a cartridge-bearing, low flange 3/8" axle front hub and 14mm hollow axle 10t cassette for the best balance of high strength and light weight

Technical Specifications

FRAMESET

FRAME

Reynolds 520 100% Cr-Mo. 21.6"" TT, MID BB shell, double-butted, externally relieved integrated HT, formed monostay yoke, removable seat-stay mounted U-brake bosses, integrated chain tensioner & hardware, 5mm dropouts for 14mm axle

FORK

Taper Cr-Mo blades, 1-1/8"" threadless, 5mm dropouts for 3/8"" axle

HEADSET

Integrated FSA Impact, 1-1/8"" threadless, Campy type cartridge bearings

SEAT BINDER

Integrated, with Cr-Mo seat pin, allen key type

WHEELS

REAR TIRE

Specialized Rhythm Lite Sport, 24 x 2.2"", 30TPI, wire bead

INNER TUBES

Schraeder valve

RIMS

P. 24"", alloy double wall, pinned

FRONT HUB

P. Lo-Pro low flange, Cr-Mo 3/8"" axle, cartridge bearings, 36h

REAR HUB

P. Lo-Pro cassette, forged alloy single speed cassette, hollow 14mm axle, cartridge bearings, 36h, 10t driver

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Rhythm Lite Sport, 24 x 2.2"", 30TPI, wire bead

DRIVETRAIN

FREEWHEEL

1/2"" x 1/8"" x 10t

CHAIN

KMC Z-510H, 1/2"" x 1/8"", anti-drop inner links

CRANKSET

P. 3pc tubulars, Cr-Mo for 8 spline, 175mm length

CHAINRINGS

CNC cut 6061, 25t, Motostar design

BOTTOM BRACKET

Mid BB, 2x sealed cartridge bearing w/ 19mm 8 spline Cr-Mo BB spindle, alloy tube and cone spacers

COCKPIT

STEM

P. Lite BMX front load, forged alloy, drop, 50mm extension, 1 1/8""

HANDLEBARS

Cr-Mo 2pc., 7-1/2"" x 29"", 11 degree back sweep, 2 degree up

GRIPS

P. Grip BMX soft compound, closed end, flanged, 150mm

SADDLE

P. Combo, 1pc co-molded composite saddle and alloy seat post combination

SEATPOST

Alloy, no offset, 25.4mm

BRAKES

REAR BRAKE

Tektro FX-340 U-brake, melt forged, single bushing, coil spring, 15mm offset arms, soft compound pads

BRAKE LEVERS

Lever ""U"" brake, 15mm cable pull

ACCESSORIES

PEDALS

P. Lo-Pro plastic platform, loose ball, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	21.6
Top Tube Length (Horizontal)	579mm
Rake	36mm
Top Tube Length (Actual)	548.6mm
Seat Tube Length, Center to Top	266.7mm
Bottom Bracket Drop	-25.4mm
Bottom Bracket Height	332.7mm
Wheel Base	978mm
Head Tube Length	110mm
Head Tube Angle	75.5°
Chainstay Length	383.5mm
Seat Tube Angle	72°
Seatpost Length	0mm
