Myka Step Through
Part No.

Myka Step Through

Part No.  49698
load-spinner
Myka Step Through
Overview
Technical Specifications
Geometry
Reviews

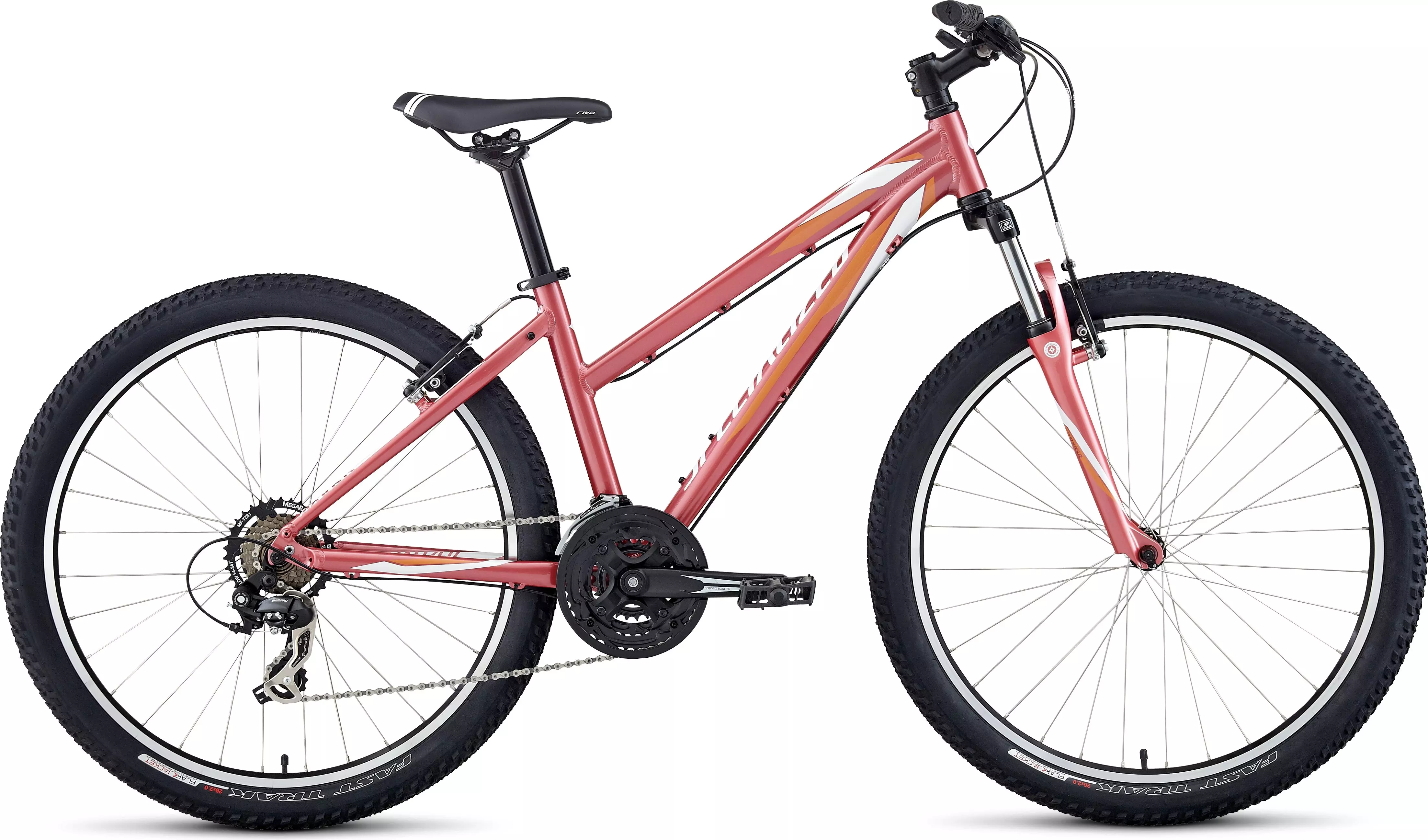

Built for lightweight efficiency with anatomical engineering and components for women, the Myka is the best-performing recreational mountain bike at a value everyone can appreciate. Myka component highlights include an 80mm-travel SR Suntour fork, and Shimano trigger shifters.
  • A1 Premium Aluminum step-through frame with Women's Recreational XC Geometry and low entry for a confident and lightweight ride
  • 75mm smooth-travel SR Suntour fork with preload adjustment and custom women's spring weights delivers size-appropriate tunability for varying terrain
  • Women's Body Geometry Riva Plus saddle features a women's cutout and plush seating area for all-day riding comfort
  • Reliable triple crankset with chainguard for added protection, Shimano Tourney 7-speed rear derailleur for crisp shifting
  • Women's Myka dual-density grips for maximum comfort and control

Technical Specifications

DRIVETRAIN
CHAIN KMC X8
BOTTOM BRACKET Square taper, cartridge bearings, 68mm shell
CRANKSET Alloy, 7/8-speed, square taper, w/ chainguard
FRONT DERAILLEUR Shimano Tourney, 7-speed, 34.9mm clamp, low-mount, top-swing, dual-pull
SHIFT LEVERS Shimano ST-EF51, 7-speed trigger, integrated brake lever, w/ optical display
CASSETTE Shimano, 7-speed, 14-34
CHAINRINGS 42/34/24, steel
REAR DERAILLEUR Shimano Tourney, 7-speed
SUSPENSION
FORK SR Suntour M3020 26"", custom women's coil/MCU spring, steel steerer, preload adj., 1pc. alloy V-brake only lower, 25.4mm steel stanchions, mini boot seals, 75mm travel
WHEELS
FRONT HUB V-brake, alloy, sealed, loose ball, steel axle, QR, 32h
REAR HUB V-brake, alloy, sealed, loose ball, steel axle, QR, 32h
INNER TUBES Standard Schrader valve
SPOKES Stainless, 14g (2.0mm)
FRONT TIRE Specialized Fast Trak Sport, 26x2.0"", wire bead, 40TPI
RIMS V-brake 26"", alloy double-wall, CNC braking surface, 25mm, pin joint, 32h
REAR TIRE Specialized Fast Trak Sport, 26x2.0"", wire bead, 40TPI
COCKPIT
SADDLE Specialized Body Geometry Riva Plus Women's, steel rails, 155mm
SEATPOST Alloy, 2-bolt, 12.5mm offset, 30.9mm
STEM Specialized alloy, 4-bolt clamp, 10-degree rise, 25.4mm, anti-corrosion hardware
HANDLEBARS Specialized riser bar, Hi-Ten steel, 620mm/640mm wide, 8-degree backsweep, 25.4mm
GRIPS Specialized Women's Myka, dual-density, Kraton
BRAKES
FRONT BRAKE Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
BRAKE LEVERS Included w/ shifter
REAR BRAKE Die-cast, alloy V-brake, 60mm 1pc. pad, linear pull
ACCESSORIES
PEDALS Composite platform, w/ reflectors, 9/16""
FRAMESET
HEADSET 1-1/8"" threadless, loose ball
SEAT BINDER Alloy, 34.9mm, QR, nylon washer, anti-corrosion bolt
FRAME Specialized Myka A1 Premium Aluminum Step Through, Women's Recreational XC Geometry and tubesets, forged dropouts w/ replaceable alloy hanger

Geometry

Geometry Chart

Myka - Geometry

13 15 17
  13 15 17
Stem Length 60mm 75mm 75mm
Crank Length 170mm 170mm 170mm
Seatpost Length 300mm 350mm 350mm
Handlebar Width 640mm 640mm 660mm
Reach 366mm 386mm 399mm
Stack 556mm 556mm 575mm
Chainstay Length 424.5mm 424.5mm 424.5mm
Bottom Bracket Drop 36mm 36mm 36mm
Seat Tube Angle 74° 74° 73°
Head Tube Angle 69.5° 69.5° 69.5°
Head Tube Length 100mm 100mm 120mm
Top Tube Length (Actual) 563mm 551mm 577mm
Top Tube Length (Horizontal) 525mm 545mm 575mm
Seat Tube Length, Center to Top 330mm 381mm 432mm
Standover Height 625mm 679mm 683mm
Wheel Base 1025mm 1045mm 1065mm
Bottom Bracket Height 300mm 300mm 300mm
