Myka HT
Overview
Technical Specifications
Geometry
Reviews

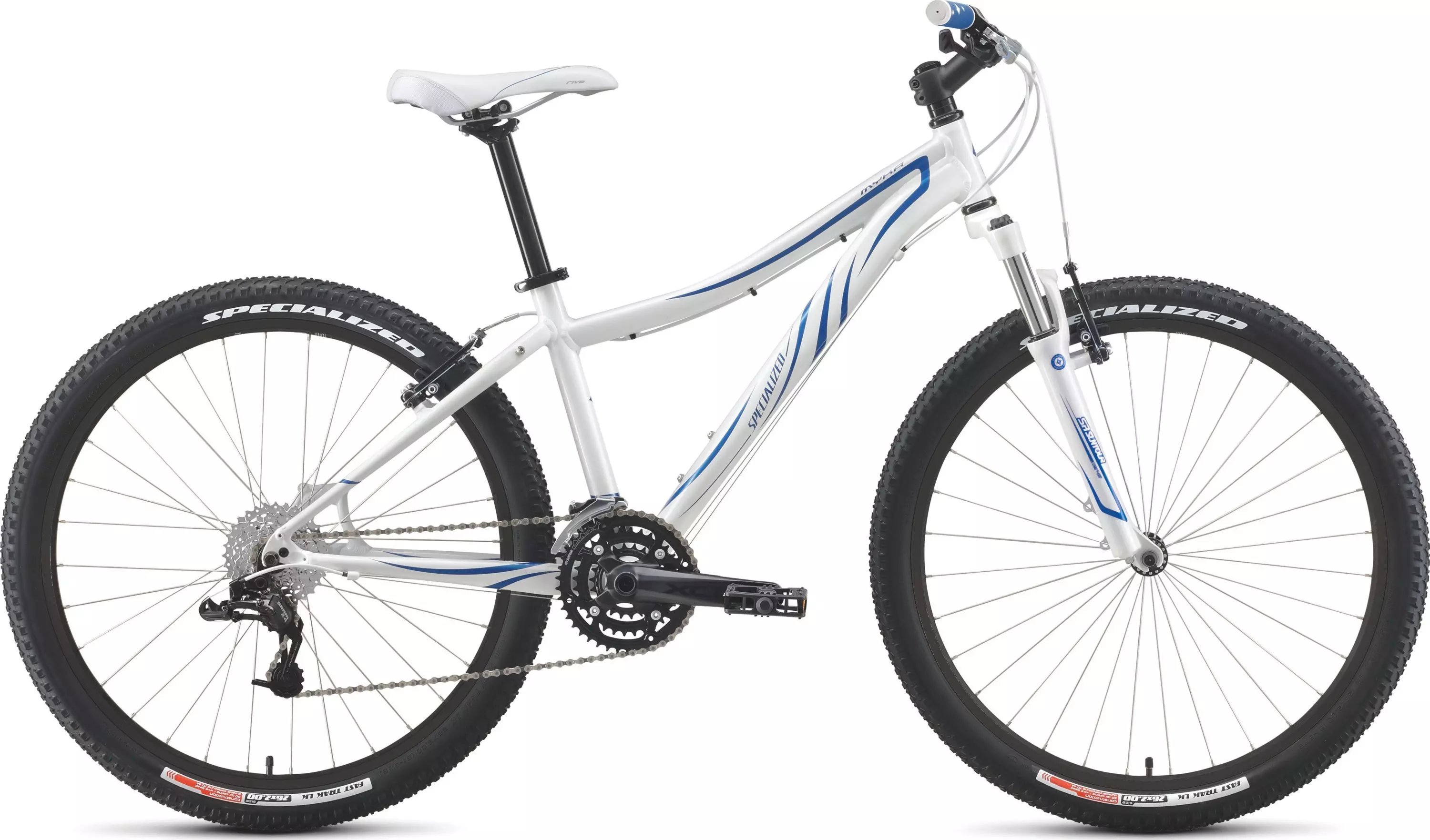

Built for lightweight efficiency with anatomical engineering and components for women, the Myka is the best performing recreational mountain bike at a value everyone can appreciate.
  • Women's-specific dual-compound grips keep hands pain-free and loose on long rides
  • Light and durable double-walled alloy rims are tough enough to handle the rough stuff
  • SRAM X4 rear derailleur and X3 trigger shifters deliver quick, sure-fire gear changes every time
  • SRAM 7-speed, 12/32t cassette replaces the freewheel mechanism of years past for lighter weight and more durability
  • Body Geometry Women's Riva MTB saddle combines generous padding and durable scuff guards for all-day performance and comfort
  • 80mm smooth-travel SR Suntour fork with preload adjustment and custom women's-specific spring weights means the suspension is dialed for your size
  • Specialized Fast Trak LK Sport 60tpi tires use a reduced knob height for lower rolling resistance, but have plenty of grip for confidence on the trail
  • Fully butted A1 Premium Aluminum frame with women's recreational XC geometry and low standover for a confident and lightweight ride, plus disc mounts for upgrading

Technical Specifications

DRIVETRAIN
CHAIN KMC Z7 w/ reuseable Missing Link
BOTTOM BRACKET Sealed cartridge, square taper, 118mm
CRANKSET SR SunTour, square taper spline
CASSETTE SRAM PG-730, 7-speed, 12-32t
FRONT DERAILLEUR Shimano FD-M310 Altus, 34.9mm clamp
SHIFT LEVERS SRAM X.3 7sp trigger
CHAINRINGS 42S x 32S x 22S replaceable outer
REAR DERAILLEUR SRAM X.4 8sp Midcage
SUSPENSION
FORK SR Suntour SF11-XCT-V3-P-26, 80mm, 1pc. alloy lower, 28mm Hi-Ten stanchions, coil/mcu spring w/ preload adj.
COCKPIT
SADDLE Body Geometry Women's Riva MTB, 155mm width
SEATPOST Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm
GRIPS Specialized Myka, dual density Kraton, 130mm
HANDLEBARS Hi-Ten riser bar, 32mm rise, 8 degree back sweep, 6 degree up
STEM Alloy A-head, 4 bolt, 20 degree rise, 25.4mm clamp
WHEELS
FRONT HUB Forged alloy, double sealed, ground race, QR, 32h
REAR HUB Forged alloy, double sealed, ground race, cassette, QR, 32h
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
FRONT TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
RIMS Alex HR 26"", alloy double wall, pinned, 32h
REAR TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
BRAKES
BRAKE LEVERS Alloy, linear pull
FRONT BRAKE ""V"" brake, alloy linear pull, 1pc. pad
REAR BRAKE ""V"" brake, alloy linear pull, 1pc. pad
ACCESSORIES
PEDALS Composite body, reflectors, toe clip compatible, 9/16""
FRAMESET
HEADSET 1-1/8"" threadless, loose ball
SEAT BINDER Alloy QR, nylon washer
FRAME Myka A1 Premium Aluminum, fully butted, women's geometry, low standover TT, ORE DT, externally relieved HT, forged dropouts w/ replaceable alloy hanger

Geometry

Geometry Chart

- Geometry

  13 15 17 19
Reach 363mm 383mm 396mm 413mm
Stack 567mm 567mm 585mm 595mm
Chainstay Length 426mm 426mm 426mm 426mm
Top Tube Length (Actual) 521mm 534mm 553mm 571mm
Ground-Top 867mm 867mm 886mm 895mm
Top Tube Length (Horizontal) 525mm 545mm 575mm 595mm
Head Tube Angle - Low Setting 69.5° 69.5° 69.5° 69.5°
Standover Height 660mm 677mm 744mm 777mm
Head Tube Height 100mm 100mm 120mm 130mm
Wheel Base 1029mm 1048mm 1068mm 1089mm
Seat Tube Angle (Actual) - Low Setting 74° 74° 73° 73°
Seat Tube Length - Center to Top 330mm 381mm 432mm 483mm
Bottom Bracket Height - Low Setting 304mm 304mm 304mm 304mm
