Myka HT Expert
$1,100.00
Part No.

Myka HT Expert

$1,100.00
Part No.  22591
load-spinner

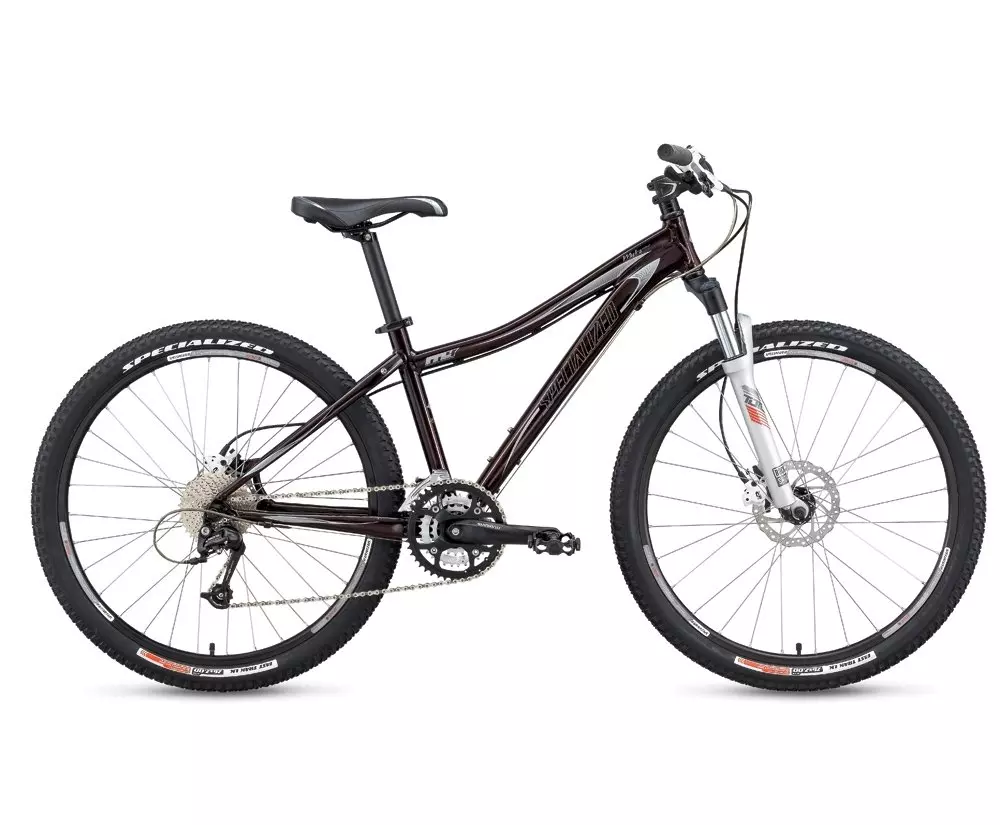

Myka HT Expert
Overview
Technical Specifications
Geometry
Reviews
  • The Myka HT Expert’s M4 manipulated alloy frame is disc-brake only and uses our women’s-specific Designs for Women geometry, with forged dropouts for extra strength.
  • The RockShox Tora 302 La Femme SL features 32mm Cr-Mo stanchions, and comes with rebound and preload adjustments, plus lockout.
  • The oversized-diameter Specialized handlebar is a natural-feeling 620mm wide, and features a comfort-increasing 8-degree upsweep and 8-degree backsweep.
  • The Avid BB-5 mechanical disc brakes, with 160mm G2 Clean Sweep rotors, allow for easily controlled stops in all conditions.
  • Shimano’s Deore Rapidfire trigger shifters feature Dual Control for extra-fast shifts, however you prefer.
  • The Shimano Deore crankset provides quick, easy shifts, the splined Octalink bottom-bracket connection makes for a solid, efficient pedaling platform.
  • The Specialized Fast Track Control 26x2.0-inch tires feature dual compound treads for superior traction and long-term durability, plus, they’re 2Bliss ready, for when you want to go tubeless.
  • The Specialized Windie XC uses our patented Body Geometry design to protect your important parts, tuned-density foam padding adds an extra layer of comfort.

Technical Specifications

FRAMESET
SEAT BINDER Specialized alloy w/ QR
HEADSET Specialized 1-1/8"" threadless
FRAME Myka M4 Manipulated Alloy frame, double-butted ORE, Designs for Women geometry, low standover TT(13/15"" only), forged drop outs w/ replaceable 98954020 alloy hanger
WHEELS
FRONT HUB Specialized Hi Lo disc, 28h, CNC flange and disc mount, polished races, alloy QR
REAR HUB Specialized Hi Lo disc, cassette, 32h, CNC flanges and disc mount, polished races, alloy QR
INNER TUBES Specialized schraeder valve
SPOKES 1.8mm (15g) stainless, alloy nipples
RIMS Specialized/Alex RHD 26, double wall, eyelets, for disc brakes
FRONT TIRE Specialized Fast Track LK, 26x2.0"", DC, 60TPI, 2Bliss ready aramid bead
REAR TIRE Specialized Fast Track LK, 26x2.0"", DC, 60TPI, 2Bliss ready aramid bead
DRIVETRAIN
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing
CHAIN KMC X9, 1/2"" x 3/32"" w/ reusable Missing Link
CRANKSET Shimano FC-M442-8, replaceable rings w/ alloy outer, Octalink Spline
CASSETTE Shimano HG-50, 9-speed, 11-34t
SHIFT LEVERS Shimano Deore SL-M530 trigger
FRONT DERAILLEUR Shimano Deore, 34.9mm clamp
CHAINRINGS 42S x 32S x 22S
REAR DERAILLEUR Shimano Deore RD-M531, SGS cage
COCKPIT
SADDLE Specialized Windie XC, (143mm), women's specific design, Aramid sides, front and rear bumpers, 143mm width
SEATPOST Specialized butted alloy, two bolt micro adjust head, 30.9mm
GRIPS Women's MTB, dual density Kraton
HANDLEBARS Specialized alloy 31.8mm XC rise, 620mm wide, 8 degree back, 8 degree up sweep
STEM Specialized 3D forged alloy, 31.8mm, 10 degree rise
BRAKES
BRAKE LEVERS Avid FR-5, alloy, two-finger, linear pull
FRONT BRAKE Tektro Auriga Comp, full hydraulic w/ 160mm rotor
REAR BRAKE Tektro Auriga Comp, full hydraulic w/ 140mm rotor
ACCESSORIES
PEDALS Specialized alloy 1pc body and cage, 9/16""
SUSPENSION
FORK RockShox Tora S-Lite La Femme, 13/15: 80mm, 17/19"": 100mm, Mag lower, coil spring, alloy steerer, 32mm Cr-Mo stanchions, preload and rebound adj. w/ LO

Geometry

Geometry Chart

Myka - Geometry

  13 15 17 19
Stem Length 60mm 75mm 75mm 90mm
Crank Length 170mm 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm 350mm
Handlebar Width 620mm 620mm 620mm 620mm
Chainstay Length 426mm 426mm 426mm 426mm
Top Tube Length (Actual) 532mm 534mm 544mm 566mm
Top Tube Length (Horizontal) 530mm 545mm 567mm 590mm
Head Tube Angle - Low Setting 69.5° 69.5° 69.5° 69.5°
Standover Height 642mm 677mm 752mm 784mm
Wheel Base 1029mm 1044mm 1058mm 1082mm
Head Tube Height 100mm 100mm 120mm 130mm
Seat Tube Angle (Actual) - Low Setting 74° 74° 73° 73°
Seat Tube Length - Center to Top 330mm 381mm 432mm 483mm
Bottom Bracket Height - Low Setting 304mm 304mm 304mm 304mm
