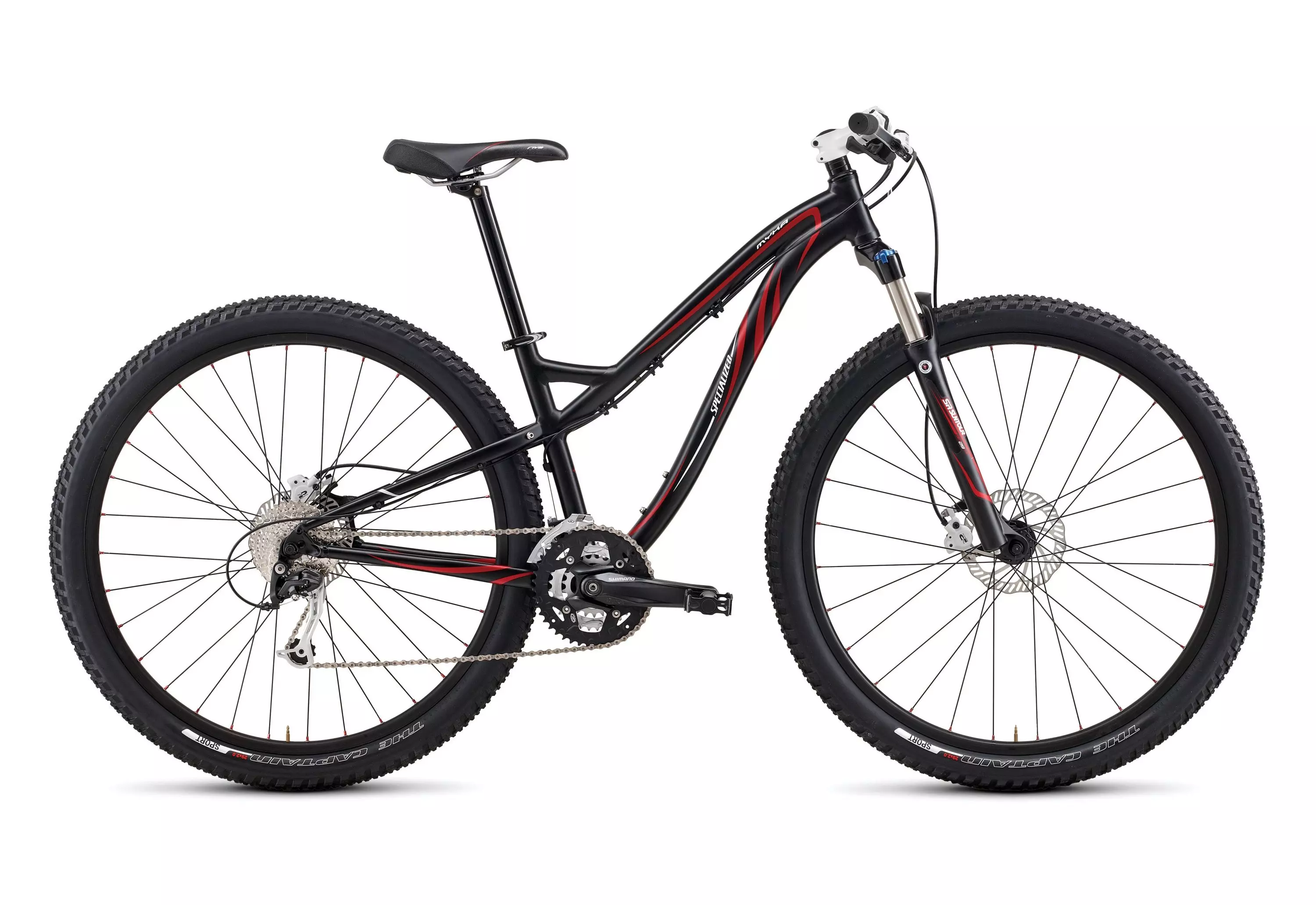

Myka HT Elite 29er
$1,050.00
Part No.

Myka HT Elite 29er

$1,050.00
Part No.  23682
load-spinner
Myka HT Elite 29er
Overview
Technical Specifications
Geometry
Reviews
29
  • Women's-specific dual-compound grips keep hands pain-free and loose on long rides
  • Specialized 29" Captain Sport tires lend a perfect knob pattern for diverse conditions
  • Tektro Draco dual-piston hydraulic disc brakes assure precision braking and durability
  • Light and durable double-walled 29" alloy rims are tough enough to handle the rough stuff
  • Body Geometry Women's Riva MTB saddle combines generous padding and durable scuff guards for all-day performance and comfort
  • Shimano crankset with forged alloy arms and Octalink-splined BB interface means greater durability and better shifting performance
  • Fully butted, smooth-welded M4 alloy 29er frame with women's recreational XC geometry delivers a confident and lightweight ride, with integrated headset for precision handling
  • Custom-tuned 80mm-travel SR Suntour 29" fork with hydraulic damping, lockout, and women's-specific spring weights delivers the supple ride qualities of a much more expensive fork

Technical Specifications

FRAMESET
SEAT BINDER Forged alloy QR, brass washer
HEADSET Integrated 1-1/8"" threadless, Campy type full cartridge bearings
FRAME Myka M4 fully manipulated alloy frame, fully butted, women's 29"" geometry, integrated headset, forged dropouts w/ replaceable hanger, disc only
WHEELS
FRONT HUB Forged alloy, hi/low flange, double sealed, ground race, machined disc mount and flange, QR, 32h
REAR HUB Forged alloy, mid flange, double sealed, ground race, machined disc mount and flanges, cassette, QR, 36h
INNER TUBES Presta valve
SPOKES 2mm (14g) stainless
RIMS Alex RHD 29"", alloy double wall, pinned w/eyelets
FRONT TIRE The Captain Sport, 29x2.0"", 60TPI, wire bead
REAR TIRE The Captain Sport, 29x2.0"", 60TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
CHAIN KMC X9 w/ reusable Missing Link
CRANKSET Shimano FC-M430-8, Octalink spline
CASSETTE Shimano HG30, 9-speed, 11-34t
SHIFT LEVERS Shimano SL-M430 Alivo, 9 sp rapid fire trigger
FRONT DERAILLEUR Shimano FD-M4306 Alivo 9sp, 34.9mm clamp, top swing, dual pull
CHAINRINGS 44S x 32S x 22S replaceable
REAR DERAILLEUR Shimano RD-M430 Alivio, 9sp, long cage
COCKPIT
SADDLE Body Geometry Women's Riva MTB, 155mm width
SEATPOST Alloy two bolt, 12.5mm offset, micro adjust, 30.9mm
GRIPS Specialized Myka, dual density Kraton, 130mm
HANDLEBARS Butted 31.8mm alloy flat bar, 6 degree backsweep
STEM 3D forged alloy, 4 bolt, 7 degree rise, 31.8mm clamp
BRAKES
BRAKE LEVERS Tektro Draco hydraulic w/ Women's specific lever shape
FRONT BRAKE Tektro Draco Hydraulic disc brake, dual piston, 160mm rotor
REAR BRAKE Tektro Draco Hydraulic disc brake, dual piston, 160mm rotor
ACCESSORIES
PEDALS Alloy 1pc. body and cage, refelctor kit, 9/16""
SUSPENSION
FORK SR Suntour SF11-XCR-DS-29-LO-SP, 80mm, 1pc. alloy lower, 30mm steel stanchions, hyd. damping w/ LO and custom tuned spike valve

Geometry

Geometry Chart

Myka - Geometry

15 17 19
  15 17 19
Reach 381mm 398mm 420mm
Stack 597mm 599mm 608mm
Chainstay Length 446mm 446mm 446mm
Top Tube Length (Actual) 569mm 567mm 585mm
Ground-Top 900mm 903mm 912mm
Top Tube Length (Horizontal) 558mm 575mm 600mm
Head Tube Angle - Low Setting 70° 70.5° 70.5°
Standover Height 687mm 730mm 754mm
Wheel Base 1066mm 1078mm 1103mm
Head Tube Height 100mm 100mm 110mm
Seat Tube Angle (Actual) - Low Setting 73.5° 73.5° 73.5°
Seat Tube Length - Center to Top 381mm 432mm 483mm
Seat Tube Angle (Effective) - Low Setting 73° 73° 73°
Bottom Bracket Height - Low Setting 304mm 304mm 304mm
