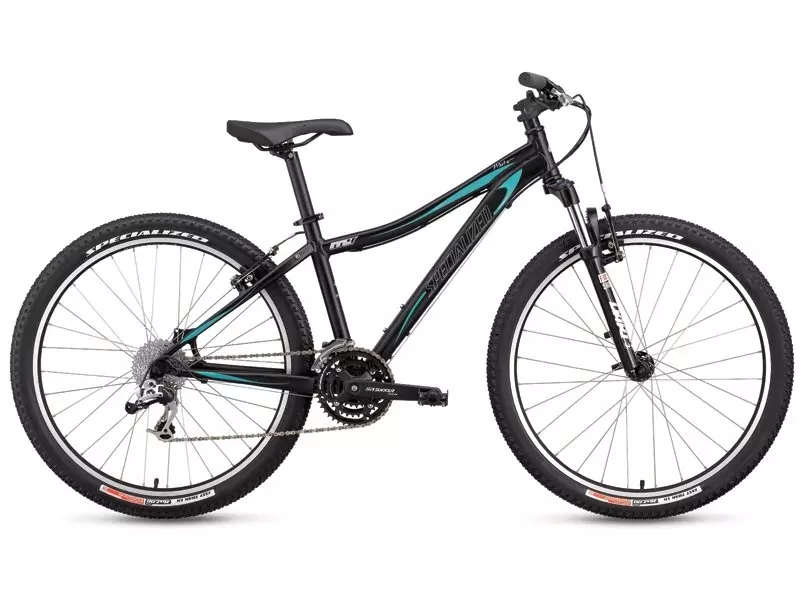

Recreational XC Hardtail Hardwired for the most fun on two off-road wheels, the Myka will quickly make riding your favorite pastime. Built for lightweight efficiency with anatomical engineering and components for women, the Myka is the best performing recreational mountain bike at a value everyone can appreciate.

Useful Links www.D4WGear.com Manuals/Tech Bulletins

  • The Myka HT Comp’s M4 manipulated alloy frame uses our women’s-specific Designs for Women geometry, with a low standover height and maximum on-trail performance.
  • The RockShox Dart 3 La Femme SL is tuned for lighter riders, the 80/100mm-travel fork features rebound and preload adjusters and a lockout.
  • The Specialized Women’s Mountain grips feature dual-density Kraton construction, for a sure handhold on every trail.
  • The Shimano Alivio rear derailleur gives precise gear changes.
  • The Shimano Acera trigger shifters offer quick shifts with a flick of a finger (or thumb).
  • The Shimano bottom bracket uses the Octalink splined interface, for a smooth-turning yet solid connection to the cranks.
  • The Specialized XC Women’s saddle has Aramid-protected sides for abrasion resistance.
  • The high-volume Specialized Fast Trak LK Sport tires have a reduced knob height for lower rolling resistance, without giving up an ounce of traction.

Technical Specifications

DRIVETRAIN
CHAIN KMC X8, 1/2"" x 3/32"" w/ reusable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing
CRANKSET SR-Suntour 8-speed, Octalink spline, 13"": 165mm, 15-17"": 170mm, 19"": 175mm
FRONT DERAILLEUR Shimano Altus , top swing, 34.9mm clamp
SHIFT LEVERS SRAM x4, 8-speed trigger
CASSETTE SRAM PG-830, 8-speed, 11-32t
CHAINRINGS 42S x 32S x 22S
REAR DERAILLEUR SRAM X-5, med. cage
SUSPENSION
FORK RockShox Dart 3 S-Lite La Femme SL, 13/15"": 80mm, 17/19"": 100mm, 28.6mm Cr-Mo stanchions with alloy steerer, coil spring, preload and rebound adj. w/ LO
WHEELS
FRONT HUB Specialized, forged alloy, 28h, polished races, steel QR
REAR HUB Specialized forged alloy, 32h, polished races, steel QR
INNER TUBES Specialized schraeder valve
SPOKES 1.8mm (15g) stainless, alloy nipples
FRONT TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
RIMS Specialized/Alex RH 26, double wall, CNC sidewalls, 28h
REAR TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
COCKPIT
SADDLE Specialized XC Women's, Aramid sides, front and rear bumpers, 155mm width
SEATPOST Specialized alloy two bolt micro adjust head, 30.9mm
STEM Specialized 3D forged alloy, 31.8mm, 10 degree rise
HANDLEBARS Specialized alloy 31.8mm XC rise, 620mm wide, 8 degree back, 8 degree up sweep
GRIPS Women's MTB, dual density Kraton
BRAKES
FRONT BRAKE Pro Max, alloy linear pull
BRAKE LEVERS Pro-Max alloy two finger w/ adj. reach
REAR BRAKE Pro Max, alloy linear pull
ACCESSORIES
PEDALS Steel cage, composite body, 9/16""
FRAMESET
HEADSET Specialized 1-1/8"" threadless
SEAT BINDER Specialized alloy w/ QR, brass washer
FRAME Myka M4 manipulated alloy frame, double-butted ORE, Designs for Women geometry, low standover TT(13/15"" only), forged drop outs w/ replaceable 98954020 alloy hanger

Geometry

Geometry Chart

Myka - Geometry

  13 15 17 19
Stem Length 60mm 75mm 75mm 90mm
Crank Length 170mm 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm 350mm
Handlebar Width 620mm 620mm 620mm 620mm
Chainstay Length 426mm 426mm 426mm 426mm
Top Tube Length (Actual) 533mm 534mm 546mm 566mm
Top Tube Length (Horizontal) 530mm 545mm 567mm 590mm
Head Tube Angle - Low Setting 69.5° 69.5° 69.5° 69.5°
Standover Height 639mm 674mm 740mm 773mm
Wheel Base 1029mm 1044mm 1057mm 1081mm
Head Tube Height 100mm 100mm 120mm 130mm
Seat Tube Angle (Actual) - Low Setting 74° 74° 73° 73°
Seat Tube Length - Center to Top 330mm 381mm 432mm 483mm
Bottom Bracket Height - Low Setting 299mm 299mm 299mm 299mm
