Myka FSR Expert
$1,900.00
Part No.

Myka FSR Expert

$1,900.00
Part No.  22588
load-spinner

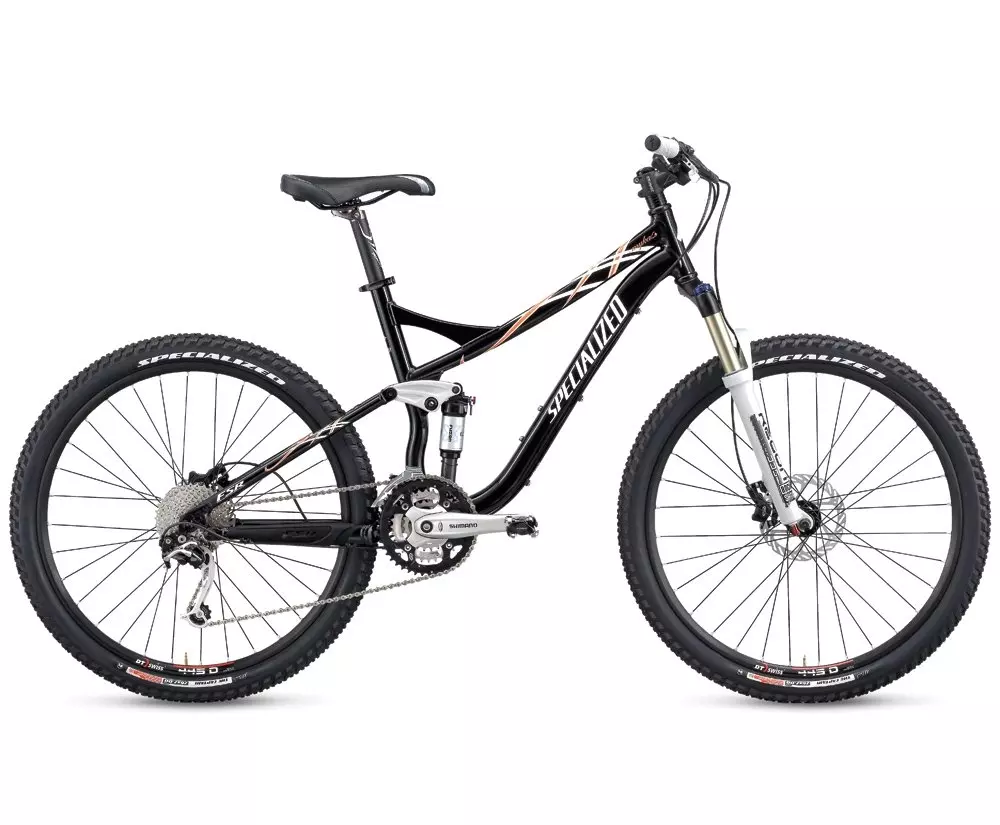

Myka FSR Expert
Overview
Technical Specifications
Geometry
Reviews
Easily the most versatile XC Trail bikes on the market, these models are known for their smooth riding, trail-tuned suspension and all-day flow. Handling rocky descents and serpentine singletrack with a sweet blend of power, control, efficiency and superior handling.
  • M4 manipulated alloy frame with women's-specific tubing and geometry and updated '09 rocker design delivers a lightweight and proportional ride for women.
  • Specialized-exclusive X-Fusion shock offers adjustable rebound and lockout control for fine-tuned performance.
  • The RockShox Recon fork delivers 100mm of travel with lockout control and a Turn Key damper for adjustable rebound.
  • Specialized alloy adjustable rise stem is lightweight and 3D-forged with a stiff four-bolt face plate for tuned fit and perfect steering precision.
  • Avid Juicy hydraulic brakes provide exceptional stopping power and reliability, with tool-less reach adjust, alloy-backed pads and size-specific CleanSweep rotors.
  • The long-cage Shimano Deore Shadow rear derailleur shifts smoothly and reliably, with a new low-profile design that improves durability.

Technical Specifications

FRAMESET
SEAT BINDER Alloy collar with QR, 34.9mm clamp ID
HEADSET 1-1/8"" Threadless, loose ball bearings w/ seals, black steel cups
FRAME Myka FSR M4 Manipulated Alloy tubing w/ new rocker design, Designs for Women geometry and women's specific TT & DT, W/O canti boss, disk only routing, bolt on cable guides, 100mm travel
WHEELS
FRONT HUB Specialized Hi Lo disc, CNC flange, QR, 32h
REAR HUB Specialized disc, sealed cartridge bearing, high/low flange w/ OS contact side, 32h
INNER TUBES Specialized Ultralight 26x2.0"", presta
SPOKES 1.8mm (15g) stainless, black, alloy nipples
RIMS DT Swiss 445D, disc, 24mm, double wall, pin joint, eyelets, 32h
FRONT TIRE Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
REAR TIRE Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing
CHAIN KMC X9, 9-speed w/ reusable Missing Link
CRANKSET Shimano FC-M521, Hollowtech, Octalink spline, replacable rings w/ alloy outer, S/M: 170mm, L: 175mm
CASSETTE Shimano HG-50, 9-speed, 11-34t
SHIFT LEVERS Shimano SL-M531 Deore, trigger
FRONT DERAILLEUR Shimano Deore, 34.9mm clamp, top swing, bottom pull
CHAINRINGS Shimano 22S x 32S x 44A
REAR DERAILLEUR Shimano RD-M772 Deore XT Shadow, long cage
COCKPIT
SADDLE Specialized Windie XC Women's, 143mm width
SEATPOST Specialized 6061 alloy, black, 30.9x350, setback head, 2-bolt micro adjust
GRIPS Specialized thin lock on grip
HANDLEBARS Specialized XC low rise, butted alloy, 620mm wide, 6 degree up, 8 degree backsweep
STEM Specialized adjustable rise, four bolt 31.8mm clamp, 3D forged, S:75mm, M/L:90mm
BRAKES
BRAKE LEVERS Avid Juicy 4RSL Hydraulic
FRONT BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic brake pads, tool-less reach adj., cleansweep 160mm rotor
REAR BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic brake pads, tool-less reach adj., cleansweep 140mm rotor
ACCESSORIES
PEDALS Shimano 505 SPD, reflectors and cleats
SUSPENSION
FORK RockShox Recon 335 SL, 100mm travel, 32mm alloy stanchions, alloy steerer, disc only, Turn Key damper, rebound adj. w/ LO, air spring
REAR SHOCK X Fusion 02RC, Specialized Designs for Women tuned, rebound and compression adj. w/ LO, 7.5x1.5"", 2 bearing upper shock mount

Geometry

Geometry Chart

Myka - Geometry

S M L
  S M L
Stem Length 75mm 90mm 90mm
Crank Length 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm
Handlebar Width 620mm 620mm 620mm
Chainstay Length 424mm 424mm 424mm
Top Tube Length (Actual) 540mm 559mm 600mm
Top Tube Length (Horizontal) 540mm 555mm 600mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5°
Standover Height 687mm 692mm 698mm
Wheel Base 1067mm 1084mm 1130mm
Head Tube Height 100mm 120mm 130mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71°
Seat Tube Length - Center to Top 350mm 445mm 483mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 330mm 330mm 330mm
