Myka FSR Comp
Part No.

Myka FSR Comp

Part No.  35047
Myka FSR Comp
Overview
Technical Specifications
Geometry
Reviews
Back To Top

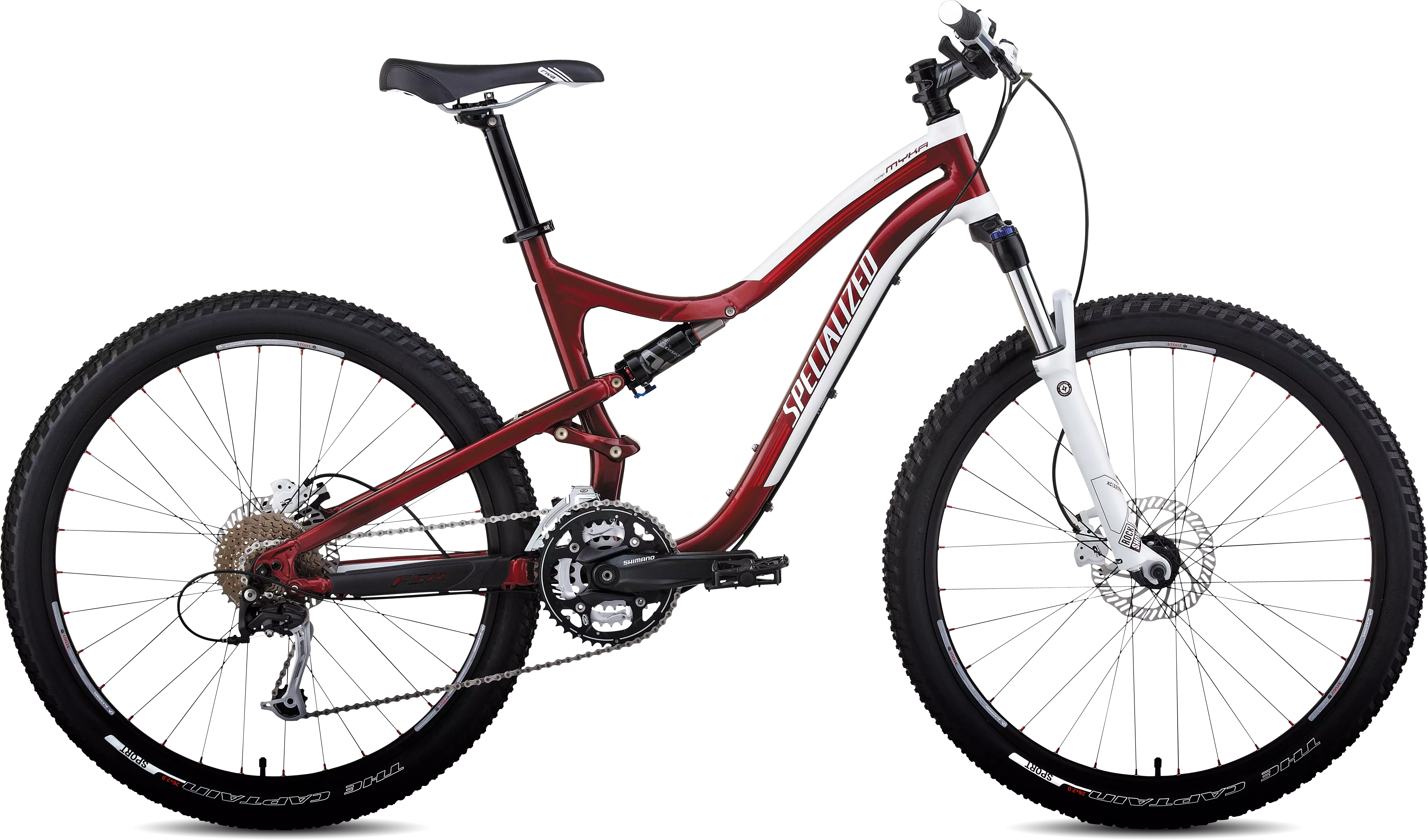

Featuring a women's custom-tuned RockShox suspension, and Tektro Draco hydraulic disc brakes, plus the Myka FSR Comp's 100mm of FSR suspension creates the total package for all-day trail adventures.
  • M4 alloy hydroformed FSR frame with 100mm of travel, Direct Mount Derailleur, integrated headset, women's XC Trail geometry and tubesets makes this a lightweight and capable bike for off-road adventures
  • RockShox Ario RL rear shock with adjustable rebound and lockout tuned specifically for women means efficient climbing and plush descending
  • RockShox XC32 100mm travel fork has custom women's spring rates, alloy steerer, lockout and external preload and rebound adjustment for versatile trail performance
  • Specialized The Captain Sport 26 x 2.0" tires have versatile tread pattern ideal for varying trail conditions
  • Shimano Alivio crankset with Octalink-splined BB interface means greater durability and better shifting performance
  • Tektro Draco hydraulic disc brakes/levers with Light Wave rotors create increased control and superior stopping power for more confident descents
  • Specialized Body Geometry women's Riva saddle uses lightweight foam and rear bumpers for off-road comfort and durability

Technical Specifications

Technical Specifications

DRIVETRAIN
CHAIN KMC X-9, 9-speed, reusable Missing Link
BOTTOM BRACKET Shimano, Octalink spline, cartridge bearing, 73mm
CRANKSET Shimano Alivio, Octalink spline, replaceable rings, S/M: 170mm, L: 175mm
FRONT DERAILLEUR Shimano SLX, E-type for DMD, top-swing, bottom-pull, M660E
SHIFT LEVERS Shimano Alivio M430, 9-speed, trigger, M430
CASSETTE Shimano 9-speed, 11-34t, HG20
CHAINRINGS 42/32/22
REAR DERAILLEUR Shimano Alivio, 9-speed, SGS cage, M430
SUSPENSION
FORK RockShox XC32, custom coil spring weights, alloy steerer, disc only mag lower, LO and rebound adj., preload adj., 100mm travel
REAR SHOCK RockShox Ario RL, custom women's tune, rebound adj. and LO, 6.5x1.5""
WHEELS
FRONT HUB Specialized Hi Lo disc, loose ball, machined disc, 32h, QR
REAR HUB Specialized Hi Lo disc, double-sealed cartridge bearing, QR, 32h
INNER TUBES Schrader valve
SPOKES Stainless, 1.8mm (15g)
FRONT TIRE Specialized The Captain Sport, 60 TPI, wire bead, 26x2.0""
RIMS Alex RHD 26"", alloy disc, double-wall, pin joint, eyelets, 24mm, 32h
REAR TIRE Specialized The Captain Sport, 60 TPI, wire bead, 26x2.0""
COCKPIT
SADDLE Specialized Women's Body Geometry Riva, 143mm
SEATPOST 6061 alloy, 2-bolt micro adjust, setback head, 30.9mm, 350mm
STEM Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise
HANDLEBARS Specialized low-rise, 6061 butted alloy, 660mm wide, 8º backsweep, 6º upsweep, 31.8mm
GRIPS Specialized XC lock-on
BRAKES
FRONT BRAKE Tektro Draco, hydraulic disc, ceramic pad compound, Caliper/Adapter w/Light Wave rotor, 160mm rotor
BRAKE LEVERS Tektro Draco hydraulic
REAR BRAKE Tektro Draco, hydraulic disc, ceramic pad compound, Caliper/Adapter w/Light Wave rotor,160mm rotor
ACCESSORIES
PEDALS Alloy platform, 9/16""
FRAMESET
HEADSET 1-1/8"" upper and lower Campy-style cartridge bearings for integrated alloy HT
SEAT BINDER 34.9mm clamp ID, 7050 hard anodized alloy collar w/ QR, black
FRAME M4 hydroformed women's tubesets, XC Trail geometry, sealed cartridge bearings, bolt-on cable guides, replaceable derailleur hanger, DMD mount, disc only, 100mm travel
* Specifications are subject to change without notice

Geometry

Geometry Chart

Myka - Geometry

S M L
  S M L
Stem Length 60mm 75mm 75mm
Crank Length 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm
Handlebar Width 640mm 640mm 660mm
Reach 392mm 410mm 448mm
Stack 540mm 558mm 568mm
Chainstay Length 420mm 420mm 420mm
Top Tube Length (Actual) 509mm 529mm 567mm
Ground-Top 870mm 888mm 898mm
Top Tube Length (Horizontal) 542mm 565mm 605mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5°
Standover Height 674mm 676mm 682mm
Wheel Base 1063mm 1088mm 1129mm
Head Tube Height 110mm 130mm 140mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71°
Seat Tube Length - Center to Top 394mm 431mm 470mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 330mm 330mm 330mm
