Myka Disc SE 29
$520.00
Part No.

Myka Disc SE 29

$520.00
Part No.  50910
load-spinner
Myka Disc SE 29
Overview
Technical Specifications
Geometry
Reviews

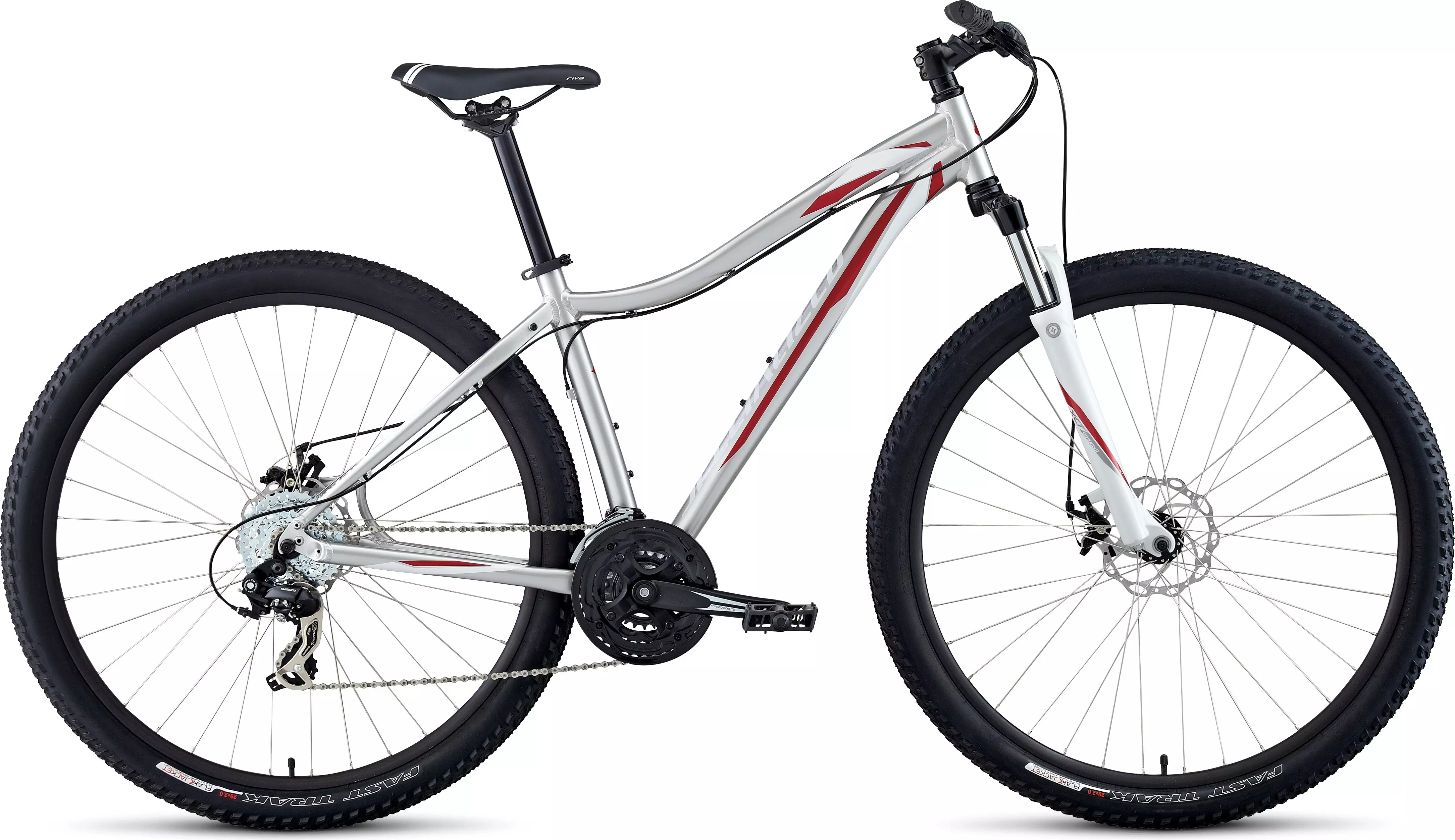

Built for lightweight efficiency with anatomical engineering and components for women, the Myka is the best-performing recreational mountain bike at a value everyone can appreciate. Myka component highlights include an 80mm-travel SR Suntour fork, Tektro disc brakes and Shimano trigger shifters.
  • A1 Premium Aluminum frame with Women's Recreational XC 29er Geometry and low standover for a confident and lightweight ride
  • 80mm smooth-travel SR Suntour fork with preload adjustment, lockout, and custom women's spring weights delivers size-appropriate tunability for varying terrain
  • Shimano Tourney 7-speed rear derailleur for crisp shifting
  • Women's Body Geometry Riva Plus saddle features a women's cutout and plush seating area for all-day riding comfort
  • Tektro Novela mechanical disc brakes with women's shorter reach levers assure precise braking and durability

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 34.9mm, QR, nylon washer, anti-corrosion bolt
HEADSET 1-1/8"" threadless, loose ball
FRAME Specialized Myka A1 Premium Aluminum, Women's Recreational XC 29er Geometry and tubesets, forged dropouts w/ replaceable alloy hanger
WHEELS
FRONT HUB Disc, alloy, Hi Lo flange, double-sealed, loose ball, steel axle, QR, 36h
REAR HUB Disc, alloy, Hi Lo flange, double-sealed, loose ball, steel axle, steel cassette body, QR, 36h
INNER TUBES Standard Schrader valve
SPOKES Stainless, 14g (2.0mm)
RIMS Specialized Disc 29"", alloy double-wall, 25mm, pin joint, 36h
FRONT TIRE Specialized Fast Trak Sport, 29x2.0"", wire bead, 40TPI
REAR TIRE Specialized Fast Trak Sport, 29x2.0"", wire bead, 40TPI
DRIVETRAIN
BOTTOM BRACKET Square taper, cartridge bearings, 68mm shell
CHAIN KMC X8
CRANKSET Alloy, 7/8-speed, square taper, w/ chainguard
CASSETTE Sunrace, 7-speed, 11-34
SHIFT LEVERS Shimano ST-EF51, 7-speed trigger, integrated brake lever, w/ optical display
FRONT DERAILLEUR Shimano Tourney, 7-speed, 34.9mm clamp, low-mount, top-swing, dual-pull
CHAINRINGS 42/34/24, steel
REAR DERAILLEUR Shimano Tourney, 7-speed
COCKPIT
SADDLE Specialized Body Geometry Riva Plus Women's, steel rails, 155mm
SEATPOST Alloy, 2-bolt, 12.5mm offset, 30.9mm
GRIPS Specialized Women's Myka, dual-density, Kraton
HANDLEBARS Specialized flat bar, alloy, 620mm/640mm wide, 8-degree backsweep, 4-degree upsweep, 25.4mm
STEM Specialized alloy, 4-bolt clamp, 10-degree rise, 25.4mm, anti-corrosion hardware
BRAKES
BRAKE LEVERS Included w/ shifter
FRONT BRAKE Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
REAR BRAKE Tektro Novela, mechanical disc, dual pad angle adjustment, 160mm rotor
ACCESSORIES
PEDALS Composite platform, w/ reflectors, 9/16""
SUSPENSION
FORK SR Suntour XCT 29"", custom women's coil/MCU spring, 1-1/8"" steel steerer, preload adj., 28mm steel stanchions, disc only lowers, 80mm travel

Geometry

Geometry Chart

Myka - Geometry

15 17 19
  15 17 19
Stem Length 75mm 75mm 90mm
Crank Length 170mm 170mm 175mm
Seatpost Length 350mm 350mm 400mm
Handlebar Width 660mm 680mm 680mm
Seat Tube Angle (Effective) 73.5° 73.5° 73.5°
Reach 378mm 392mm 414mm
Stack 607mm 618mm 628mm
Chainstay Length 450mm 450mm 450mm
Bottom Bracket Drop 64.5mm 64.5mm 64.5mm
Head Tube Angle 70° 70.5° 70.5°
Head Tube Length 100mm 110mm 120mm
Top Tube Length (Actual) 572mm 571mm 587mm
Top Tube Length (Horizontal) 558mm 575mm 600mm
Seat Tube Length, Center to Top 381mm 432mm 483mm
Standover Height 694mm 738mm 762mm
Wheel Base 1070mm 1082mm 1108mm
Seat Tube Angle (Actual) 73° 73° 73°
Bottom Bracket Height 309mm 309mm 309mm
