Whether you're racing friends on the weekend, snagging a new KOM or PR, or mixing it up in a local road race, the Tarmac Disc Pro it the purpose-built to do it with.

In order cut some grams from the Tarmac, but to also ensure that it's stiff and compliant in exactly the right places, we took major steps to improving our Rider-First Engineered™ technology. From different layup schedules and materials, to visibly different forks, we scrutinized every single aspect of the Tarmac to ensure you're getting the perfect ride. With this revamp, we also updated the geometry, basing it on countless Retül data points and professional rider input. This enabled us to develop a Performance Road Geometry that perfects the combination of a responsive front-end and short wheelbase, which delivers instantaneous response and optimal power transfer.

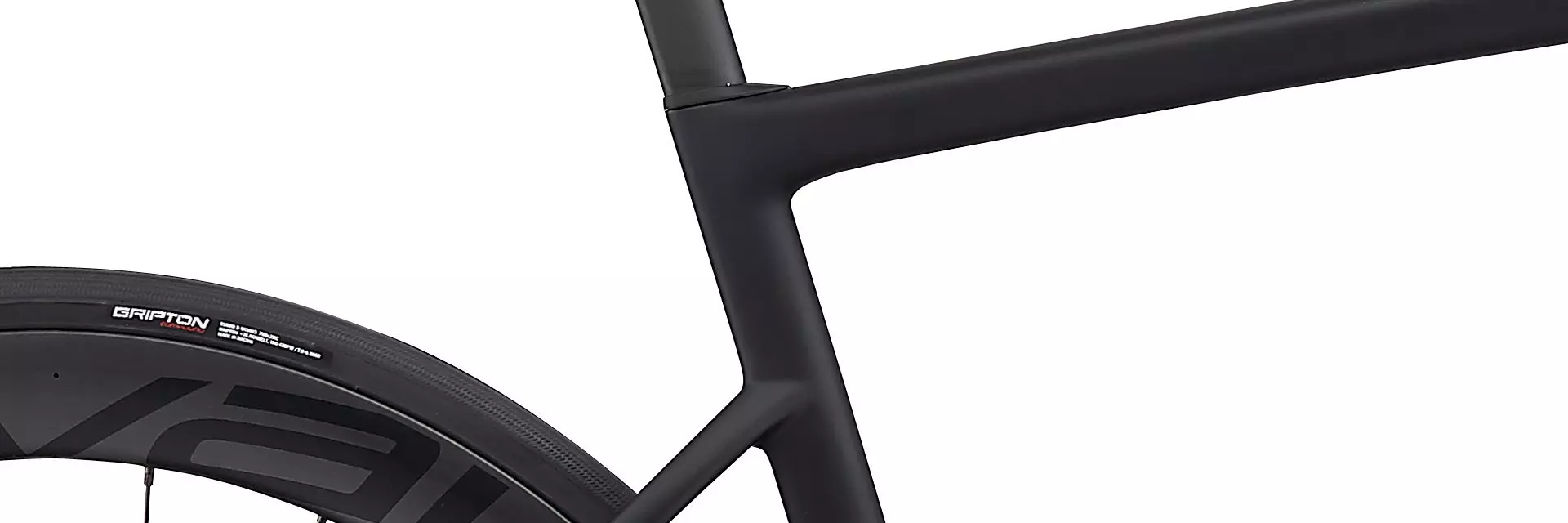

And while stiffness aids in the aforementioned, compliance must also be utilized for an optimal ride quality. That's why we designed a seatpost that builds compliance into the upper 120mm where clamping doesn't happen, dropped the seatstays, and altered the seat tube shape. We also added tire clearance up to 30mm, which translates to a 28mm Turbo Cotton on a Roval CL 50 Disc wheel. This allows lower pressures for decreased rolling resistance, increased traction, and more comfort. Altogether, these additions still have the Tarmac riding like a true race-machine, but it also takes a bit of the sting out of road imperfections. You'll thank us on your next long ride.

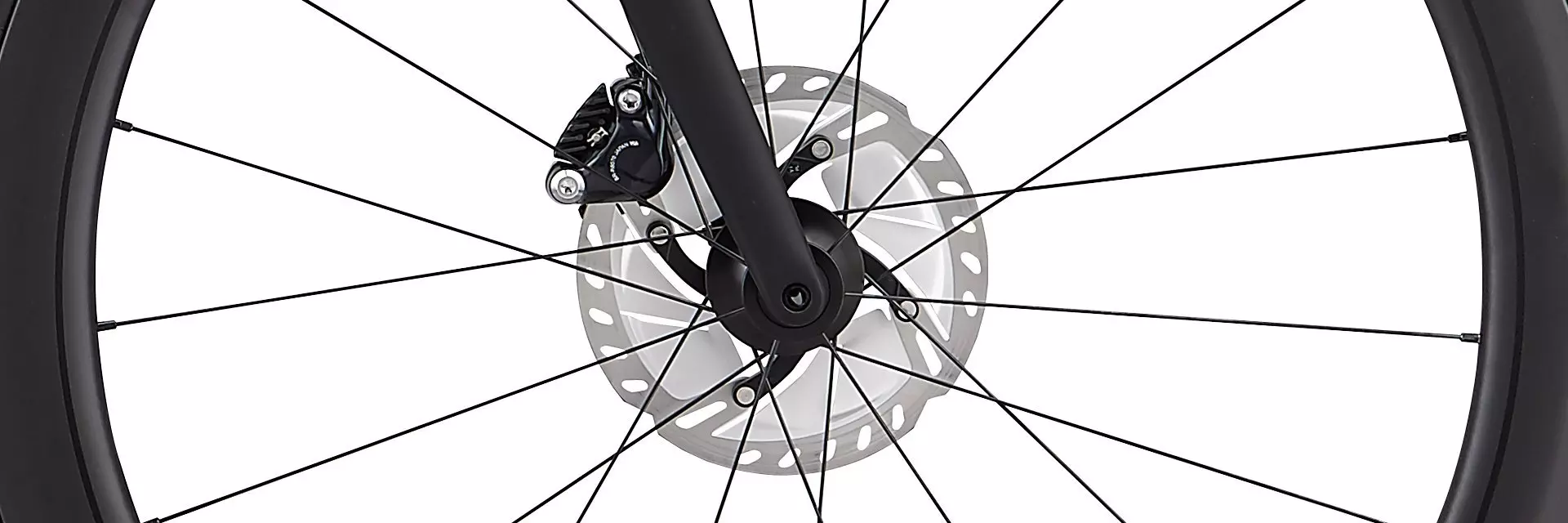

But why disc brakes? The real question is "why not?" They offer superior braking power and modulation, work exceptionally well in wet weather, and offer a very, very minor weight addition. All this means that you have more control and can go faster with more confidence.

We also know, however, that aerodynamic improvements are the most important thing we can do to make you faster. Our Bora-Hansgrohe and Quick-Step Floors Pro Tour riders, after all, are demanding aero improvements on every bike. With this, the aero goal was to discover where we could essentially "add aero for free," by not taking anything away from the hallmarks of the Tarmac design. During the six-month iterative process, three areas were discovered where we could do this—a new fork shape, dropped seatstays with aero tubes, and a D-shaped seatpost and seat tube. The result? A bike that's approximately 45 seconds faster over 40km compared to other lightweight bikes in the same category.

The spec on this Tarmac means business, with Shimano Ultegra Di2 handling shifting duties, powerful hydraulic disc brakes, and lightweight and aerodynamic Roval CL 50 Disc carbon wheels.

  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary climbing responsiveness and descending prowess you'd expect from a Tarmac. The FACT 10r frame is the perfect blend of value and performance.
  • Featuring our Rider-First Engineered™ design that ensures every frame size has the same legendary climbing responsiveness and descending prowess you'd expect from a Tarmac. The FACT 10r frame is the perfect blend of value and performance.

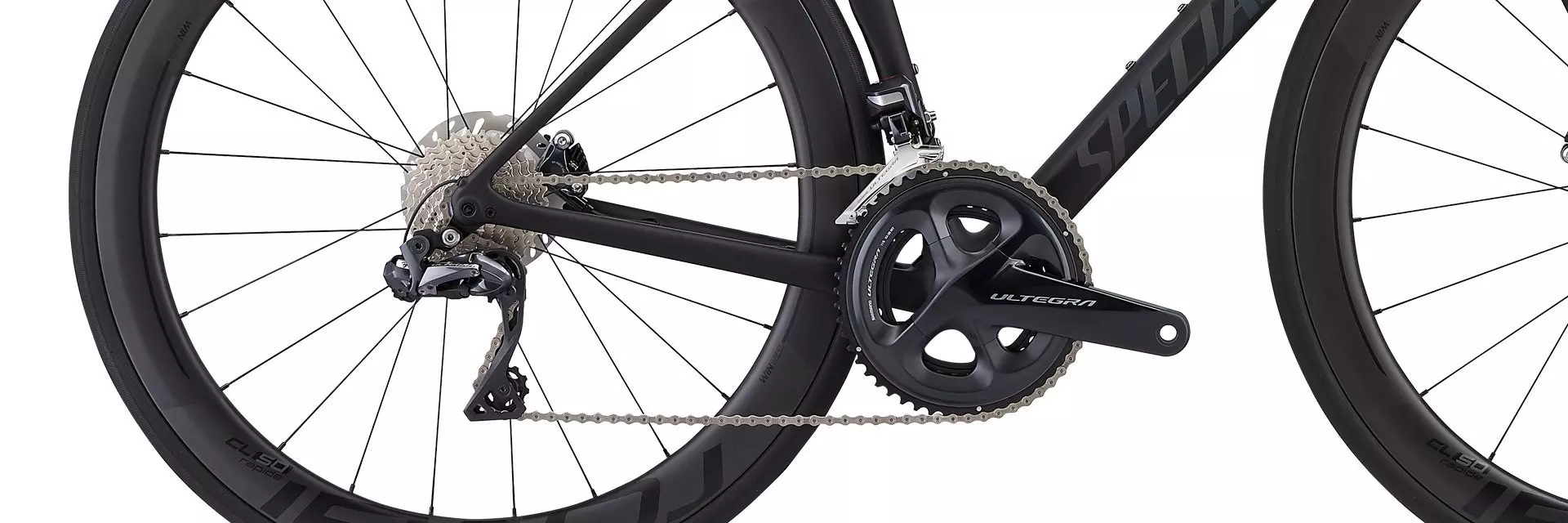

  • Shimano's new Ultegra Di2 with hydraulic disc brakes not only offers exceptionally smooth and crisp shifts, but it also provides incredible stopping power and modulation.
  • The Roval CL 50 Disc wheelset utilizes the same rim as its older sibling the CLX 50 Disc, but pairs it with traditional bearings and round spokes to keep value at an all-time high.
  • The Roval CL 50 Disc wheelset utilizes the same rim as its older sibling the CLX 50 Disc, but pairs it with traditional bearings and round spokes to keep value at an all-time high.
  • Shimano's new Ultegra Di2 with hydraulic disc brakes not only offers exceptionally smooth and crisp shifts, but it also provides incredible stopping power and modulation.

Technical Specifications

Technical Specifications

DRIVETRAIN
BOTTOM BRACKET Praxis, BB30 for Shimano
CHAIN Shimano Ultegra, 11-speed

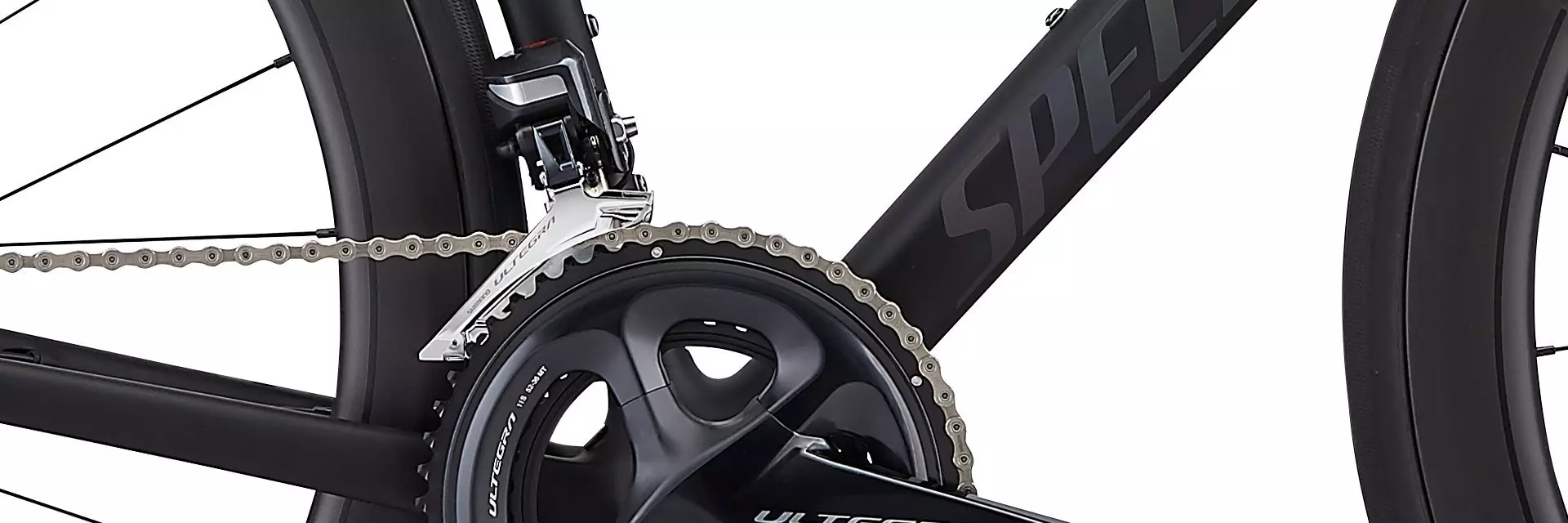

CRANKSET Shimano Ultegra R8000, HollowTech 2, 11-speed
SHIFT LEVERS Shimano Ultegra Di2 Disc R8070
FRONT DERAILLEUR Shimano Ultegra Di2 R8050, braze-on
CASSETTE Shimano Ultegra R8000, 11-speed, 11-30t
CHAINRINGS 52/36T
REAR DERAILLEUR Shimano Ultegra Di2 R8050, GS medium cage
SUSPENSION
FORK FACT 10r carbon, 12x100mm thru-axle, flat-mount disc
COCKPIT
SADDLE Toupé Pro, Body Geometry shape, 143mm width, carbon rails
SEAT BINDER Tarmac SL6 clamp assembly
TAPE S-Wrap HD Tape - Reflective
SEATPOST S-Works FACT Carbon Tarmac seatpost, 20mm offset
HANDLEBARS Specialized Expert Shallow Drop, alloy, 125mm drop x 75mm reach
STEM Specialized Pro SL, alloy, 4-bolt
WHEELS & TIRES
REAR WHEEL Roval CL50 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 50mm depth, DT Swiss 350 internals, 24h
INNER TUBES Turbo Ultralight, 60mm Presta valve

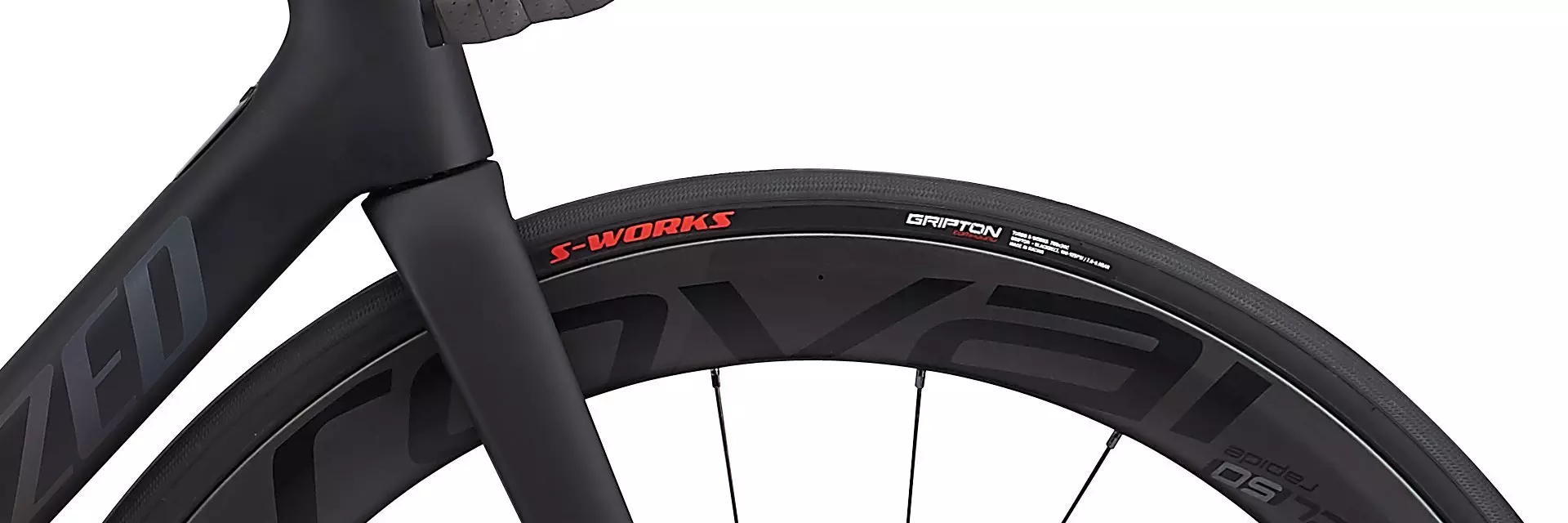

FRONT TIRE S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
REAR TIRE S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
FRONT WHEEL Roval CL50 Disc, carbon, tubeless-ready, Win Tunnel Engineered, 50mm depth, 21h
BRAKES
FRONT BRAKE Shimano Ultegra R8070, hydraulic disc
REAR BRAKE Shimano Ultegra R8070, hydraulic disc
ACCESSORIES
PEDALS Nylon, 105x78x28mm, loose ball w/ reflectors
FRAMESET
FRAME Tarmac SL6, FACT 10r carbon, Rider-First Engineered™, OSBB, clean routing, internally integrated seat clamp, 12x142mm thru-axle, flat-mount disc

Geometry

Geometry Chart

Tarmac - Geometry

  49 52 54 56 58 61
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Stem Length 80mm 90mm 100mm 100mm 110mm 110mm
Seatpost Length 320mm 320mm 380mm 380mm 380mm 380mm
Saddle Width 143mm 143mm 143mm 143mm 143mm 143mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 375mm 380mm 384mm 395mm 402mm 408mm
Top Tube Length, Horizontal 508mm 531mm 540mm 562mm 577mm 595mm
Stack 514mm 527mm 544mm 565mm 591mm 612mm
Wheelbase 973mm 975mm 978mm 990mm 1005mm 1012mm
Chainstay Length 410mm 410mm 410mm 410mm 410mm 410mm
Front Center 574mm 577mm 579mm 591mm 606mm 613mm
BB Drop 74mm 74mm 72mm 72mm 72mm 72mm
BB Height 266mm 266mm 268mm 268mm 268mm 268mm
Seat Tube Angle 75.5° 74° 74° 73.5° 73.5° 73°
Head Tube Angle 71.75° 72.5° 73° 73.5° 73.5° 74°
Seat Tube Length 431mm 462mm 481mm 501mm 522mm 553mm
Head Tube Length 115mm 126mm 143mm 163mm 190mm 210mm
Bike Standover Height 740mm 755mm 775mm 795mm 826mm 850mm
Fork Rake/Offset 47mm 47mm 44mm 44mm 44mm 44mm
Fork Length, Full 363mm 363mm 363mm 363mm 363mm 363mm
Trail 63mm 58mm 58mm 55mm 55mm 52mm
