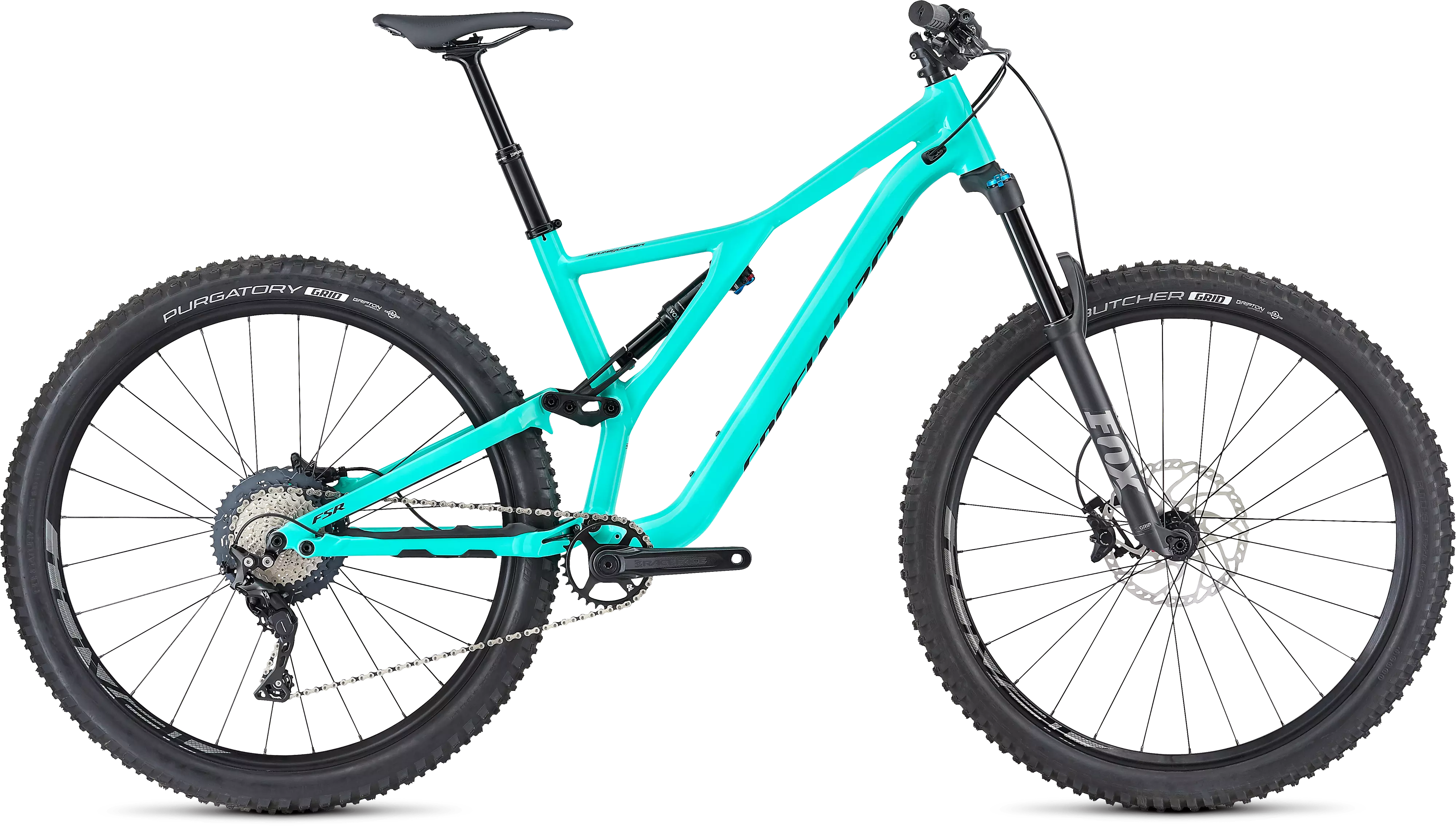

Men's Stumpjumper Comp Alloy 29
Overview
Technical Specifications
Geometry
Reviews

No need to fret—we haven’t forgotten about all you alloy fans out there. In fact, the new Stumpjumper Comp Alloy 29 may be the most radically designed alloy bike ever made. For real, though. And with new tube shapes and an asymmetrical design, it's going to exceed all of your expectations of how a trail bike should ride.

Our design goal for the new Stumpjumper was simple—build the ultimate trail bike, one that feels telepathic. And it turns out that this feeling all comes down to stiffness. Think of it this way: when the frame's telling your hands one thing and your feet another, your brain gets confused with the imbalance and the bike feels unstable. In order to fix this, we had to get to work on dialing-in the material and shapes.

We continued down the suspension path with a custom Rx Trail Tune on both the fork and rear shock. Suspension performance is highly dependent on frame, wheel, and rider size, so we use our Rx Tune to get each bike to land in the middle of the adjustment spectrum, and this gives you the biggest possible range to fine-tune your ride. Another focal point of the tune was matching the suspension characteristics between wheel sizes—we developed a specific Rx Tune for each platform. So, no matter what wheel size you prefer, you’ll get perfectly linear suspension.

Steps were also taken to make this bike easy to live with. Threaded bottom brackets make a triumphant return, and we made room for up to a 3.0'' tire. You're also free to run whatever aftermarket rear shock you want, since we're using standard metric shocks. And customization is furthered with a Flip Chip that lets you to dial-in your Stumpy to your riding style. Switch it from High to Low and it drops your bottom bracket 6mm and slackens the head tube by half-a-degree. Little details also jump out to surprise you, like a newly designed ribbed chainstay protector that makes chain slap a thing of the past and nearly silences the drivetrain.

The build here is no-nonsense with a focus on dependable, high-performing parts, like a Shimano SLX drivetrain with RaceFace cranks, Shimano SLX disc brakes, FOX front and rear suspension, and Roval Traverse 29 alloy wheels.

  • The completely redesigned alloy Stumpjumper frame features an M5 alloy front- and rear-end, an asymmetrical design, and our 29 Trail Geometry, so it's just the right amount of both capable and comfortable.
  • The FOX DPS Performance rear shock features our Rx Trail Tune, ensuring that no matter the wheel or frame size, your bike is dialed-in perfectly.
  • A FOX 34 Rhythm fork handles suspension duties up front, with stiff stanchions and plenty of adjustability.

Technical Specifications

DRIVETRAIN
CHAIN KMC X11, 11-speed w/ Missing Link™
BOTTOM BRACKET Threaded BB, 24mm spindle
CRANKSET RaceFace Aeffect, 24mm spindle, 170mm crankarm
SHIFT LEVERS Shimano SLX, 11-speed
CASSETTE Shimano SLX, 11-speed, 11-46t
CHAINRINGS 30T
REAR DERAILLEUR Shimano XT, Shadow Plus, GS cage, 11-speed
SUSPENSION
FORK FOX FLOAT Rhythm 34, GRIP Damper, 51mm offset, 2-position sweep adjust, 15x110mm, tapered alloy steerer, 150mm of travel
REAR SHOCK FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 210x50mm
WHEELS
FRONT HUB Specialized, sealed cartridge bearings, 15x110mm spacing, 28h
REAR HUB Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
INNER TUBES Presta, 40mm valve
SPOKES DT Swiss Industry
RIMS Roval Traverse 29, hookless alloy, 29mm inner width, tubeless ready, 28h
FRONT TIRE Butcher, GRID casing, GRIPTON® compound, 2Bliss Ready, 29x2.6"
REAR TIRE Purgatory, GRID casing, GRIPTON® compound, 2Bliss ready, 29 x2.6"
COCKPIT
SADDLE Body Geometry Phenom Comp, Adaptive Edge design, hollow Cr-Mo rails, 143mm
SEATPOST X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SRL LE lever, 34.9mm, S: 125mm, M/L/XL: 150mm of travel
STEM Specialized Trail, 3D forged alloy, 4-bolt, 6-degree rise
HANDLEBARS Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 27mm rise, 780mm width
GRIPS Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
BRAKES
FRONT BRAKE Shimano SLX, hydraulic disc, resin pads, 200mm rotor
REAR BRAKE Shimano SLX, Hydraulic Disc, Resin Pad
ACCESSORIES
PEDALS Specialized Dirt
FRAMESET
SEAT BINDER Specialized bolt-type, alloy, 38.6mm
FRAME M5 alloy chassis and rear end, asymmetrical design, 29 Trail Geometry, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm of travel
The All-New Stumpjumper
The All-New Stumpjumper

Geometry

Geometry Chart

Stumpjumper - Geometry

S M L XL
  S M L XL
Crank Length 170mm 170mm 170mm 170mm
Stem Length 45MM 45MM 45MM 45MM
Seatpost Length 376mm 438mm 438mm 438mm
Saddle Width 143mm 143mm 143mm 143mm
Handlebar Width 780mm 780mm 780mm 780mm
Reach 405mm 425mm 445mm 470mm
Top Tube Length, Horizontal 573mm 597mm 628mm 662mm
Stack 619mm 619mm 642mm 656mm
Wheelbase 1151mm 1171mm 1201mm 1232mm
Chainstay Length 437mm 437mm 437mm 437mm
Front Center 716mm 736mm 766mm 797mm
BB Drop 33mm 33mm 33mm 33mm
BB Height 341mm 341mm 341mm 341mm
Seat Tube Angle 74.8° 74.5° 74.1° 73.7°
Head Tube Angle 66.5° 66.5° 66.5° 66.5°
Seat Tube Length 380mm 410mm 455mm 505mm
Head Tube Length 100mm 100mm 125mm 140mm
Bike Standover Height 756mm 762mm 775mm 776mm
Fork Rake/Offset 51mm 51mm 51mm 51mm
Fork Length, Full 560mm 560mm 560mm 560mm
Trail 107mm 107mm 107mm 107mm
