With the Diverge Sport, you'll be prepared for anything, from smooth tarmac to the…

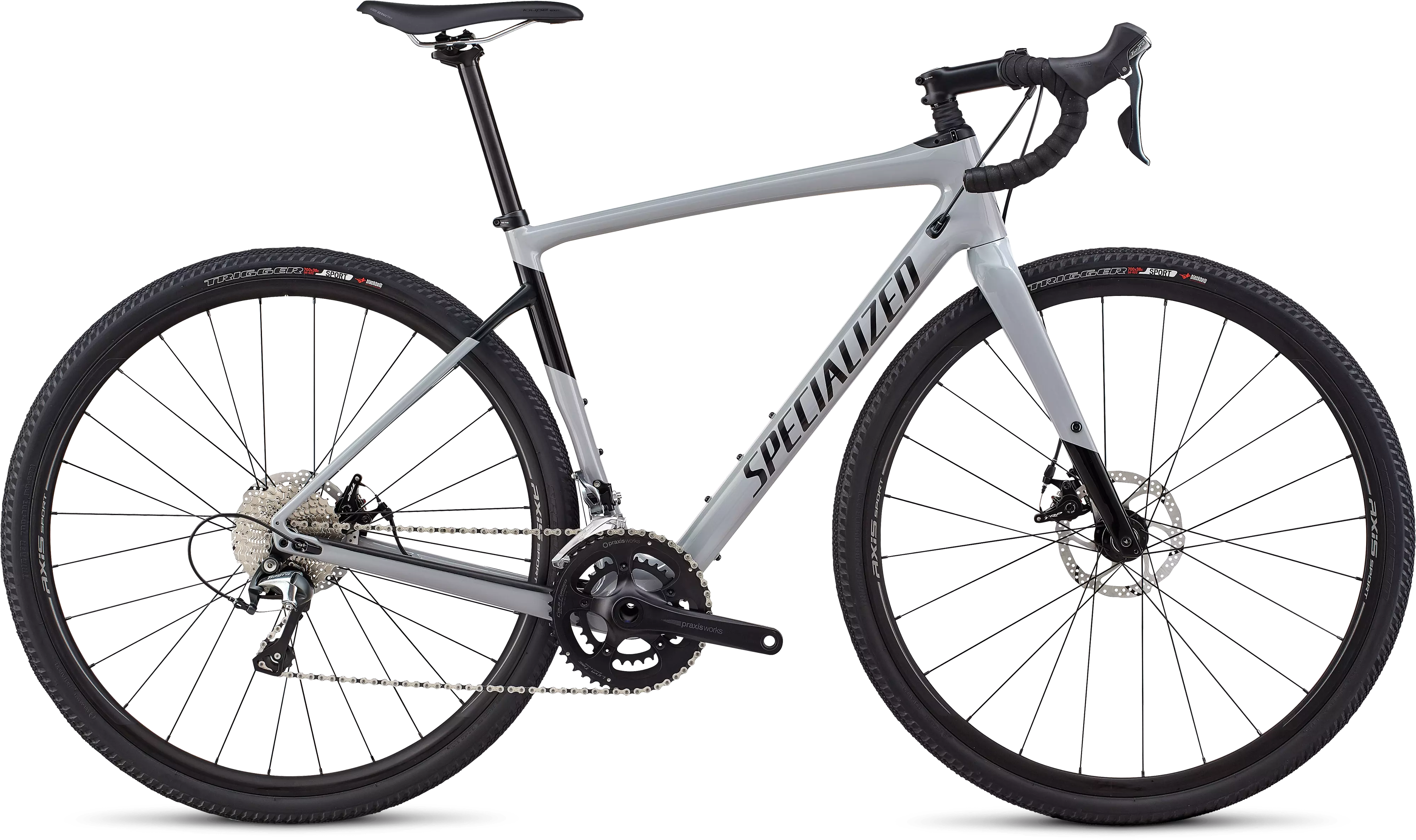

With the Diverge Sport, you'll be prepared for anything, from smooth tarmac to the loosest, roughest tracks out there. It's packed with all the same technologies as its pricier cousins, only its spec places an emphasis on reliable performance, not components so flashy you'll be eating nothing but top ramen for months.
With a completely redesigned frame, the new Diverge is more capable than ever. And with the constant goal to best meet your needs, we took your number one request into account—tire clearance. The new frame will comfortably fit up to 700x42mm tires with plenty of room for mud, too. Along with tire clearance, weight was a large factor in the development, and taking some design cues from the development of the Roubaix, we developed a FACT 9r carbon frame that's one of the lightest in the category.
Next up, we moved away from a traditional 'cross geometry, instead opting for something that hasn't been seen before—Open Road Geometry. We know what you're thinking, "it's just another marketing term," but for the Diverge, we truly did develop an entirely new geometry. With a touch less hyperbole, you can think of it as a road version of modern trail bike geometry. It provides playful handling and predictable steering for endless dirt skids and mid-corner drifts. The geo features a bottom bracket that's over a half-centimeter lower than the previous Diverge, a slacked-out head tube angle, short chainstays, and a short wheelbase. These changes make for a bike that's not only fun in the dirt, but also performs well on the road.
And while riding gravel and dirt roads on a road bike may add to the adventure, there's only so much that wider tires with lower pressures can absorb, in terms of bumps. With this in mind, we implemented a new version of our Future Shock into the Diverge design. It not only soaks up bumps with ease, but also adds the benefit of extremely predictable handling. That's because the wheelbase isn't lengthening when you hit a bump, so the front end of the Diverge keeps the same effective head tube angle. In other words, when you dive hard into a turn, you won't be surprised by under steer or sloppy handling. Unlike the original Future Shock, the Diverge's version features a progressive spring that makes this technology more suitable for off-road applications, where stiffer suspension is often needed to soak-up larger bumps and obstacles.
Adding to its multifaceted talents, we topped it off with three water bottle mounts, plus mounts for racks and fenders. So while it's one of the most smile-inducing bikes you'll ever shred fire roads on, it's equally adept at bike packing, commuting, or even a spin to your local brewery.
The Diverge Sport spec hits right on the money with a sturdy Shimano Sora groupset, hassle-free mechanical disc brakes, and a strong Axis Sport wheelset.
The FACT 9r carbon frame features our adventure-bound Open Road Geometry, Future Shock Progressive suspension with 20mm of travel, and front/rear thru-axles, making it the ultimate tool for your next adventure.
The lightweight FACT carbon fork is plenty stiff, aiding in handling, rigidity, and an overall light weight.
The Praxis Alba 2D is an incredibly stiff crankset with supreme ramping for precise shifts between the rings.
FRAME
Specialized FACT 9r carbon, Open Road Geometry, 12x142mm thru-axle, Future Shock Progressive suspension, 20mm of travel, flat mount disc, BB386
FORK
Specialized FACT carbon, flat mount disc, 12x100mm thru-axle
HANDLEBARS
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
STEM
Specialized, 3D forged alloy, 4-bolt, 7-degree rise
TAPE
Specialized S-Wrap
SADDLE
Body Geometry Toupé Sport, steel rails, 143mm
SEATPOST
Alloy, 2-bolt clamp
SEAT BINDER
Alloy, 31.2mm
FRONT WHEEL
Axis Sport Disc
REAR WHEEL
Axis Sport Disc
FRONT TIRE
Specialized Trigger Sport, 60 TPI, BlackBelt protection, 700x38mm
REAR TIRE
Specialized Trigger Sport, 60 TPI, BlackBelt protection, 700x38mm
INNER TUBES
700x28/38mm, 48mm Presta valve
SHIFT LEVERS
Shimano Tiagra
FRONT DERAILLEUR
Shimano Tiagra, braze-on
REAR DERAILLEUR
Shimano Tiagra, long cage, 10-speed
CASSETTE
Shimano Tiagra, 10-speed, 11-34t
CRANKSET
Praxis Alba 2D, BB386
CHAINRINGS
48/32T
CHAIN
KMC X10, 10-speed w/ Missing Link™
REAR BRAKE
Tektro Spyre, flat mount, mechanical disc
FRONT BRAKE
Tektro Spyre, flat mount, mechanical disc
PEDALS
Nylon, 105x78x28mm, loose balls w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
48 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
Handlebar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
Stem Length | 70mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Saddle Width | 143mm | 143mm | 143mm | 143mm | 143mm | 143mm |
Seatpost Length | 350mm | 350mm | 400mm | 400mm | 400mm | 400mm |
Stack | 569mm | 574mm | 592mm | 613mm | 639mm | 662mm |
Reach | 360mm | 367mm | 373mm | 379mm | 385mm | 392mm |
Head Tube Length | 108mm | 128mm | 155mm | 178mm | 90mm | 95mm |
Head Tube Angle | 70.8° | 71° | 71.9° | 72.5° | 72.5° | 72.8° |
BB Height | 265mm | 265mm | 265mm | 265mm | 265mm | 265mm |
BB Drop | 85mm | 85mm | 85mm | 85mm | 85mm | 85mm |
Trail | 56mm | 58mm | 58mm | 62mm | 62mm | 64mm |
Fork Length, Full | 390mm | 390mm | 390mm | 390mm | 390mm | 390mm |
Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 55mm | 55mm |
Front Center | 593mm | 597mm | 599mm | 604mm | 618mm | 629mm |
Chainstay Length | 419mm | 419mm | 421mm | 421mm | 421mm | 421mm |
Wheelbase | 1004mm | 1004mm | 1011mm | 1025mm | 1036mm | 997mm |
Top Tube Length, Horizontal | 524mm | 532mm | 549mm | 561mm | 575mm | 589mm |
Bike Standover Height | 704mm | 726mm | 752mm | 776mm | 801mm | 815mm |
Seat Tube Length | 405mm | 440mm | 473mm | 500mm | 525mm | 555mm |
Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 74° | 74° |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
