Men's Chisel Comp X1
$1,620.00
Part No.

Men's Chisel Comp X1

$1,620.00
Part No.
Please select an option
load-spinner
Men's Chisel Comp X1
Overview
Technical Specifications
Geometry
Reviews

If you're thinking about taking the plunge into XC racing, do it with the Chisel Comp. It embodies all of the qualities you'd expect from an XC race bike, like light overall weight, incredible stiffness, and a race-oriented geometry—all with one-by gearing, too. Consider it the vessel that's bringing performance to the masses.

Traditional welding methods create frame joints by connecting tubes to cylinders, leaving the performance and security of the connection up to the skill of the welder. D'Aluisio (DSW), however, allows us to move the joint away from the area of the highest stress, making for a lighter frameset that's stiff, compliant, and incredibly strong—the optimal characteristics of a hardtail XC rig. So what does this mean for you? You'll be powering up climbs, shredding singletrack, and everything in between on a bike that has you questioning why alloy's gotten such a bad rap.

And to further improve this feel, the Chisel also features our XC geometry, which took our previous XC race geo and added some trail DNA to the mix. This equates to a longer top tube, a shortened head tube, and a slacked out front-end, the result of which is a tremendous increase in downhill stability, plus a wider range of fit. And just as importantly, this doesn't require any sacrifice of climbing proficiency.

The build on this Chisel features a Shimano SLX one-by setup for ease of use along with a wide-range of gears. You'll also find powerful MT500 Deore hydraulic disc brakes, the renowned RockShox Judy fork with up to 100mm of travel (size-specific), and 25-millimeter-wide alloy wheels that are optimized for weight and traction.

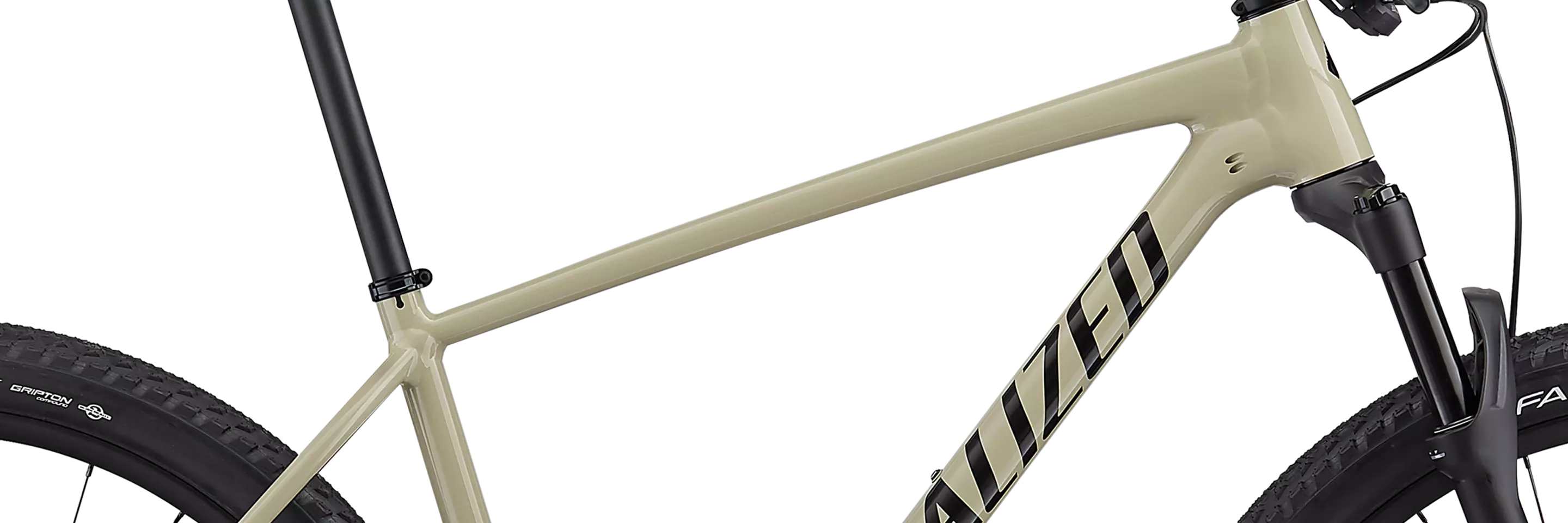

  • Given its lightweight and ultra-stiff characteristics, M5 aluminum was the natural choice for the frame's construction. And when complemented with our speed-focused XC 29 Geometry, D'Aluisio Smartweld technology, and internal cable routing, you get a bike that compromises nothing in delivering explosive speed, confident handling, and hassle-free maintenance.

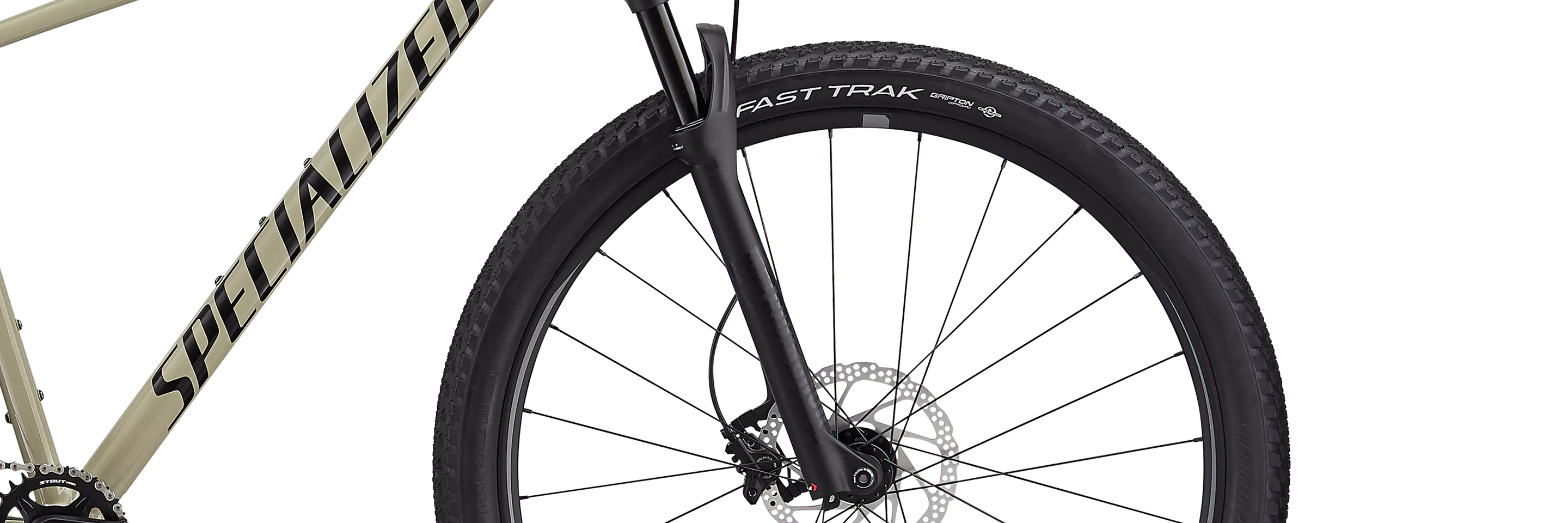

  • Rocks and bumps are soaked up via the RockShox Judy Gold fork with 90/100 millimeters of travel (size-specific). It features proprietary technology from RockShox, like its Solo Air™ spring, that maintains an ideal equilibrium, as well as being one of the lightest air springs on the market.

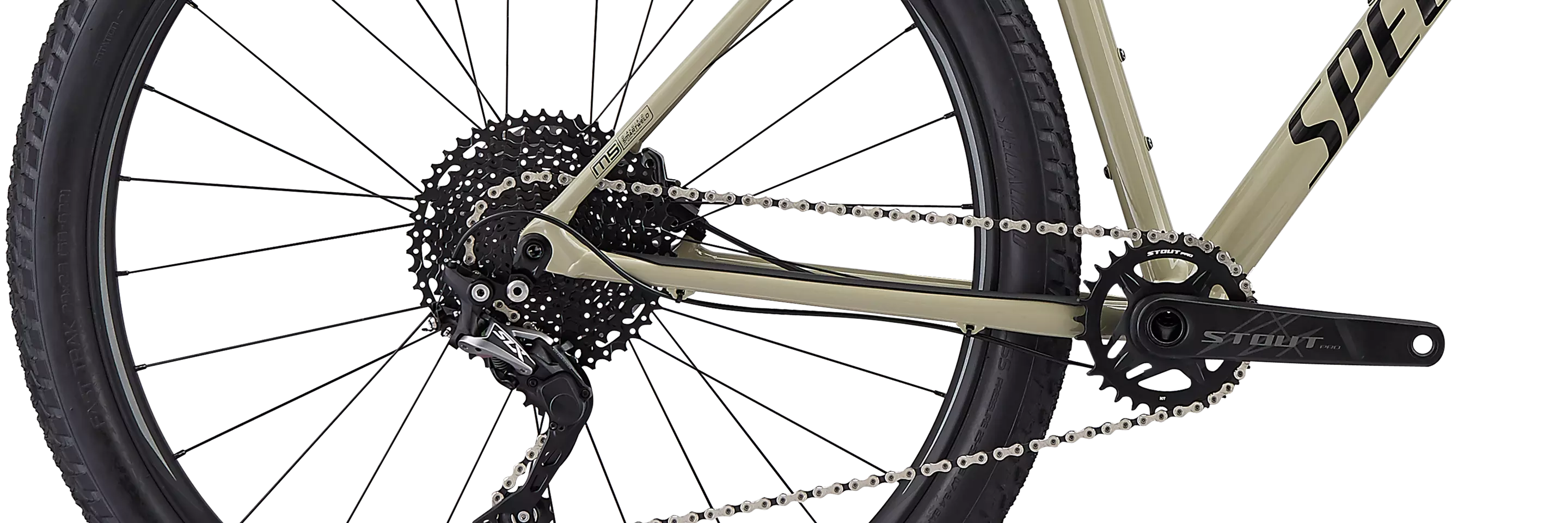

  • The Shimano Deore SLX rear derailleur is durable, precise, and will keep you shifting crisply for miles to come.

Technical Specifications

DRIVETRAIN
CHAIN KMC X11, 11-speed w/ Missing Link™
BOTTOM BRACKET BSA for 24mm spindle
CRANKSET Stout Pro, forged alloy
SHIFT LEVERS Shimano SLX, 11-speed
CASSETTE SunRace, 11-speed, 11-46t
CHAINRINGS 30T
REAR DERAILLEUR Shimano SLX, Shadow Plus, 11-speed
SUSPENSION
FORK RockShox Judy Gold 29, Solo Air, 51mm offset, 15x110mm thru-axle (S: 90mm, M-XL: 100mm of travel)
COCKPIT
SEAT BINDER Alloy, 30.8mm
SADDLE Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST Alloy, 2-bolt clamp
STEM Specialized Alloy, 3D forged, 4-bolt, 6-degree
HANDLEBARS Specialized Alloy Minirise, 10mm rise, 750mm, 31.8mm clamp
GRIPS Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
WHEELS & TIRES
FRONT HUB Specialized, sealed cartridge bearings, 15x110mm thru-axle, 24h
REAR HUB Specialized, sealed cartridge bearings, 12x148mm thru-axle, 28h
INNER TUBES Standard, Presta valve
SPOKES Stainless, 14g
RIMS Stout XC 29, 25mm internal width, disc-specific
FRONT TIRE Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
REAR TIRE Fast Trak, GRIPTON® compound, 60 TPI, 2Bliss Ready, 29x2.3"
BRAKES
FRONT BRAKE Shimano MT-501, hydraulic disc, resin pad
REAR BRAKE Shimano MT-501, hydraulic disc, resin pad
ACCESSORIES
PEDALS Specialized Dirt
FRAMESET
FRAME Specialized D'Aluisio Smartweld M5 Alloy, XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, triangulated post-mount 160mm brake

Geometry

Geometry Chart

Chisel - Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 60MM 70MM 80MM 90MM
Seatpost Length 350MM 400MM 400MM 400MM
Saddle Width 143mm 143mm 143mm 143mm
Handlebar Width 750mm 750mm 750mm 750mm
Reach 395mm 418mm 441mm 462mm
Top Tube Length, Horizontal 567mm 594mm 622mm 648mm
Stack 595mm 605mm 619mm 633mm
Wheelbase 1073mm 1100mm 1128mm 1154mm
Chainstay Length 430mm 430mm 430mm 430mm
Front Center 650mm 676mm 704mm 730mm
BB Drop 57.5mm 57.5mm 57.5mm 57.5mm
BB Height 312.5mm 312.5mm 312.5mm 312.5mm
Seat Tube Angle 74° 74° 74° 74°
Head Tube Angle 69.8° 69.8° 69.8° 69.8°
Seat Tube Length 400mm 430mm 470mm 520mm
Head Tube Length 95mm 95mm 110mm 125mm
Bike Standover Height 760mm 790mm 814mm 845mm
Fork Rake/Offset 51mm 51mm 51mm 51mm
Fork Length, Full 496mm 506mm 506mm 506mm
Trail 82mm 82mm 82mm 82mm
