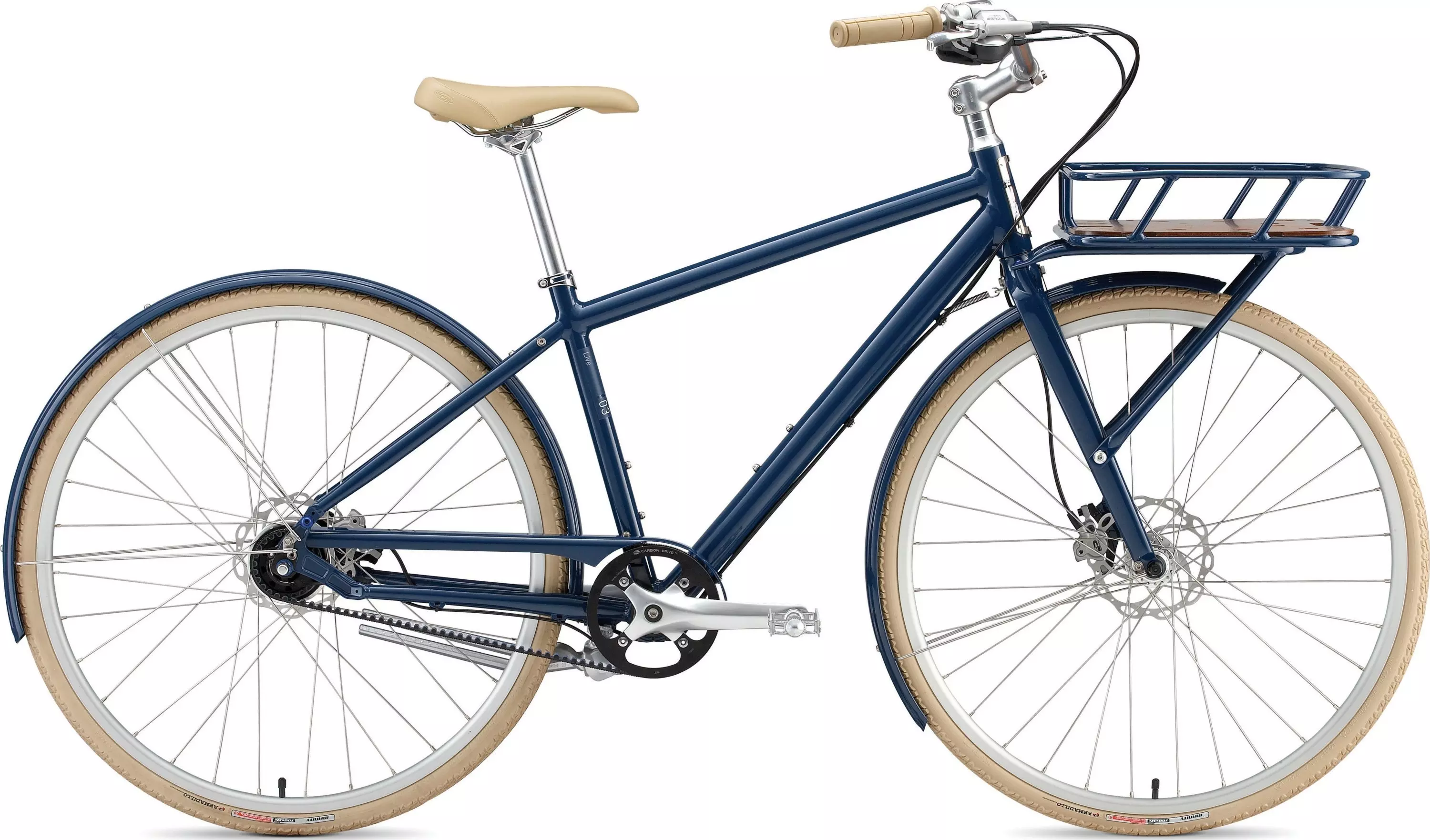

For riders who want an option for every whim, the LIVE promises classic urban style + functionality. Carry groceries, a laptop, art supplies or anything that suits your mood with this light-duty utility bike.
  • Pletscher double leg kickstand for easy loading
  • Hydraulic brakes supply all-weather stopping performance
  • Slim and effective color-matched alloy chainguard keeps your duds clean
  • Globe classic aluminum fenders are color matched with custom chevron detail
  • Shimano Alfine 8-speed internal hub for quality, versatility and simplicity
  • Belt drive for ultra low maintenance and triple the longevity of a standard chain
  • Body Geometry Fitness saddle with front and rear bumpers for comfort where it counts
  • Globe A1 Premium Aluminum frame with custom tubing and butting profiles is strong and lightweight
  • Integrated front porteur basket with wood bottom lets you carry all your goods comfortably - 25kg max load

Technical Specifications

FRAMESET
SEAT BINDER Globe Chevron forged alloy, chrome plated
HEADSET 1-1/8"" threadless, integrated, semi-cartridge campy style bearings
FORK Globe Live straight-blade aluminum fork w/ custom forged crown and porteur basket/rack system
FRAME Globe A1 Premium Aluminum cargo design, fully manipulated custom tubing w/ fender and rack braze-ons, integrated kickstand mount
WHEELS
FRONT HUB Hi Lo flange, loose ball, QR, 36h
REAR HUB Shimano Alfine internal 8-speed, 36h
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
RIMS Globe RHD 700c, alloy double wall disc specific, 36h
FRONT TIRE Specialized Infinity Armadillo, 700x32c, 60TPI
REAR TIRE Specialized Infinity Armadillo, 700x32c, 60TPI
DRIVETRAIN
BOTTOM BRACKET Cartridge bearing, square spindle with crank stop right side and capless bolts
CHAIN Belt drive, 122 links
CRANKSET Sugino EX-1 aluminum, w/ alloy chainguard
CASSETTE Gates belt drive cog, 24t
SHIFT LEVERS Shimano Alfine tap fire, 8-speed
CHAINRINGS Belt drive, 50t
COCKPIT
SADDLE Specialized Body Geometry Fitness, 143mm width, front and rear bumpers
TAPE Globe City 140mm
SEATPOST Alloy, 2-bolt forged head, 12.5mm offset, 27.2mm
HANDLEBARS Alloy, 25.4mm, 610mm wide, 43 degree up, 57 degree back sweep
STEM Forged alloy, 2-bolt, 15 degree rise, 25.4mm clamp
BRAKES
BRAKE LEVERS Auriga Comp brake levers
FRONT BRAKE Tektro Auriga Comp, hydraulic dual piston, w/160mm rotors
REAR BRAKE Tektro Auriga Comp, hydraulic dual piston, w/160mm rotors
ACCESSORIES
PEDALS Classic full alloy pedal

Geometry

Geometry Chart

Live - Geometry

  SM MD LG XL
Wheelbase 1068mm 1068mm 1077mm 1089mm
Seat-Tube Length, B-B Center to Top 385mm 435mm 485mm 535mm
Head-Tube Length 120mm 135mm 155mm 175mm
Top-Tube Length, Horizontal 560mm 575mm 590mm 605mm
Front-Center 621mm 621mm 630mm 642mm
Head-Tube Angle 73° 74° 74° 74°
Fork Rake 59mm 59mm 59mm 59mm
Trail 46mm 40mm 40mm 40mm
Stand-Over Height 707mm 744mm 780mm 816mm
Chain-Stay Length 455mm 455mm 455mm 455mm
Seat-Tube Angle 74.5° 74° 73.5° 73.25°
B-B Drop 65mm 65mm 65mm 65mm
Seat-Post Length 0mm 0mm 0mm 0mm
