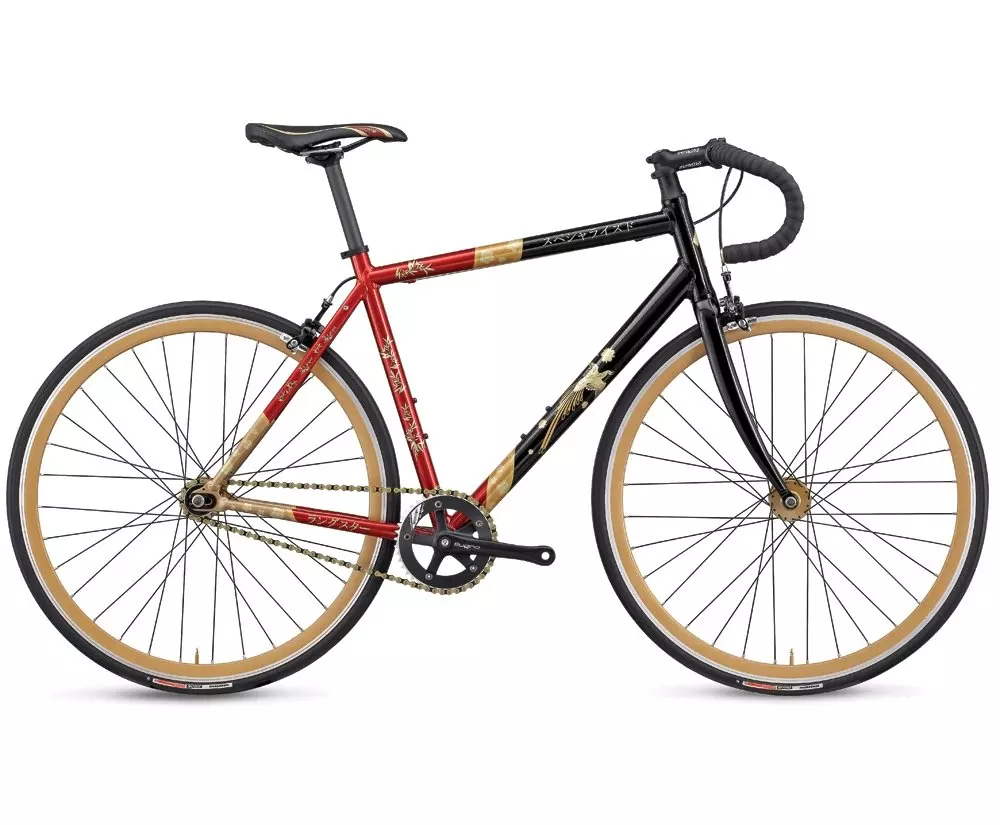

2009 Langster Tokyo

0 Reviews

BUILT FOR RALLYING CITY STREETS and lapping racers at the velodrome, the light and…

Color:

Tokyo

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

BUILT FOR RALLYING CITY STREETS and lapping racers at the velodrome, the light and lean Langster is as gutsy a ride as it gets—pure and simple, yet fast as hell. Sometimes one speed is all you need.

The Compact Track Design of the Langster’s A1 Premium Aluminum frame is all about converting power into controlled speed.
The Langster carbon fiber fork offers a stiff yet vibration-damping ride.
The 3D-forged alloy Road Stem uses a 31.8mm bar clamp area for an extra-precise steering connection.
The S-Works Track handlebar is nicely rounded and super strong.
The straightforward, one-speed crankset features an alloy 42-tooth chainring.
The carbon-wrapped Specialized seatpost absorbs vibration.
The scientifically proven design of the Body Geometry Toupé makes it easy on your soft parts.

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminum, fully manipulated tubing, compact design, integrated headset

FORK

Specialized FACT carbon, carbon fiber legs, aluminum crown and steerer

HEADSET

Specialized Mindset, 1-1/8"" integrated threadless, steel cage bearings, 20mm alloy cone w/ 10mm alloy spacer

SEAT BINDER

Specialized alloy 31.8mm

WHEELS

FRONT TIRE

Specialized Mondo Sport, 700x23c, wire bead, 60TPI, Flak Jacket

REAR TIRE

Specialized Mondo Sport, 700x23c, wire bead, 60TPI, Flak Jacket

INNER TUBES

Specialized standard presta tube

RIMS

Alex Race 32, sleeve joint, CNC sidewall 32h

FRONT HUB

Track, bolt-on w/ track axle nuts, 32h

REAR HUB

Track bolt-on w/ track axle nuts, 32h

SPOKES

Stainless 14g

DRIVETRAIN

CASSETTE

Shimano Freewheel, 16t

CHAIN

KMC Z-510HX 1 Speed

CRANKSET

Sugino Zen Messenger

CHAINRINGS

42t

BOTTOM BRACKET

Sealed cartridge, square taper, 68mm x 103mm

COCKPIT

STEM

Specialized Sport, 3D forged alloy, 6 degree rise, 31.8mm clamp

HANDLEBARS

S-Works Track, 31.8mm, 2014 alloy

TAPE

Body Geometry cork ribbon

SADDLE

Specialized Comp Road, full padding

SEATPOST

Specialized carbon wrapped, two-bolt clamp, 27.2mm

BRAKES

FRONT BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

REAR BRAKE

Ultralight dual pivot brakes, Teflon pivots, forged alloy w/ cartridge pads

BRAKE LEVERS

Specialized secondary brake levers, 31.8mm clamp, with inner cable compatibility

ACCESSORIES

PEDALS

Silver cage, black body, w/ toe clip and strap

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	49	52	54	56	58	61
Ground-Top	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Seat-Tube Angle	60°	65°	60°	59°	56°	59°
Head-Tube Length	170mm	170mm	170mm	170mm	172.5mm	172.5mm
Head-Tube Angle	580°	580°	587°	595°	610°	617°
Chain-Stay Length	45mm	45mm	45mm	43mm	43mm	43mm
Top-Tube Length, Horizontal	74mm	75.5mm	73.5mm	73.25mm	72.5mm	73mm
Front-Center	110mm	130mm	155mm	180mm	205mm	230mm
Handle-Bar Width	300mm	350mm	350mm	350mm	350mm	350mm
Stand-Over Height	80mm	90mm	100mm	100mm	110mm	120mm
Seat-Tube Length, B-B Center to Top	405mm	405mm	405mm	405mm	407mm	410mm
Fork Rake	974mm	975mm	982mm	991mm	1008mm	1018mm
B-B Drop	71.75mm	72.5mm	72.5mm	73mm	73.5mm	73mm
Stack	430mm	480mm	500mm	520mm	540mm	580mm
Reach	518mm	537mm	548mm	565mm	582mm	600mm
Trail	708mm	742mm	764mm	786mm	808mm	839mm
Wheelbase	400mm	400mm	400mm	400mm	420mm	420mm
