Langster Street
Part No.

Langster Street

Part No.
Langster Street
Technical Specifications

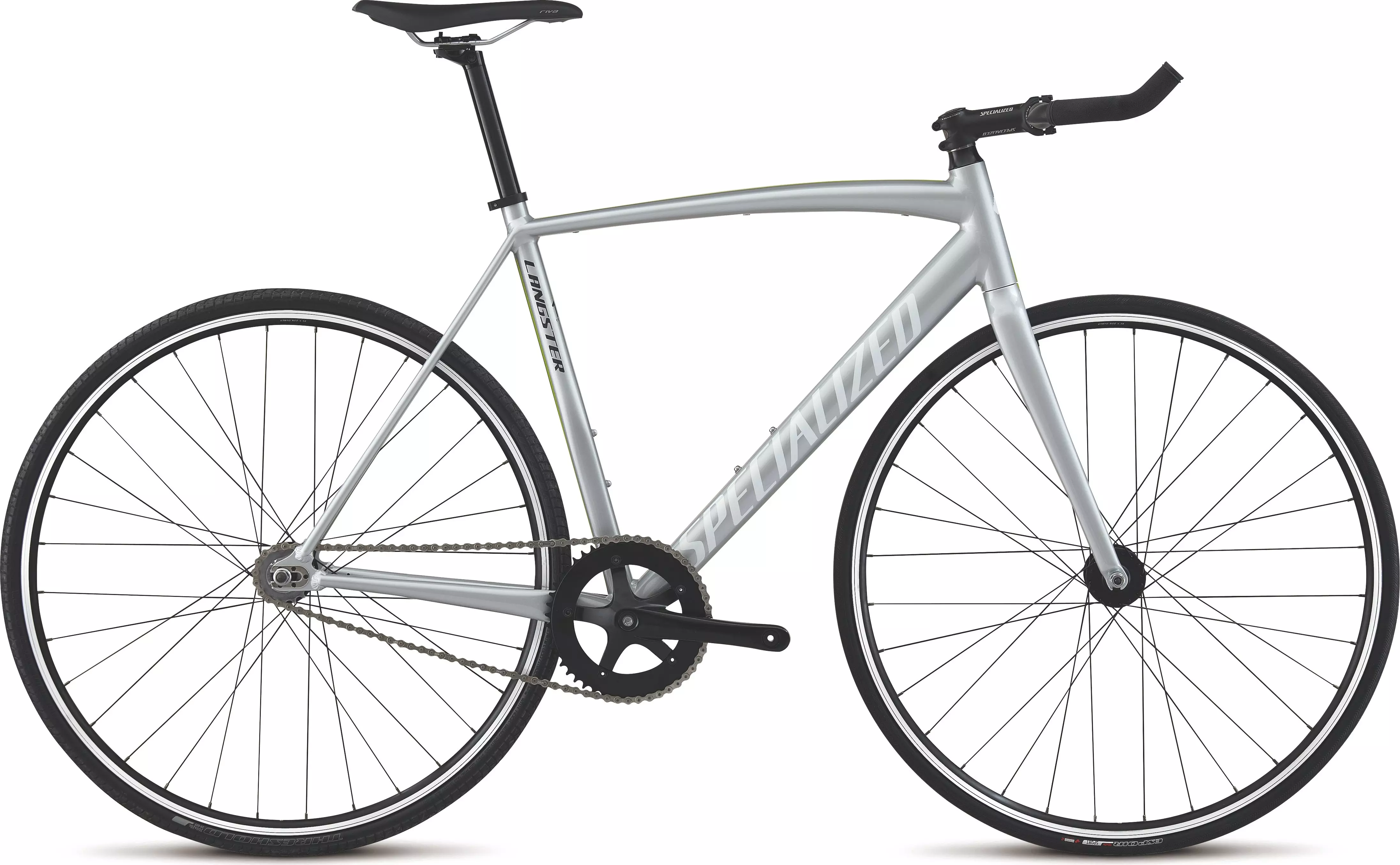

With a sleek, minimalist aesthetic, and an A1 Premium Aluminum frame designed for raw speed, the Langster Street can tear through the city.
  • Track-specific, square taper alloy crankarm for acceleration and power
  • Bulletproof bottom bracket w/ Cr-Mo axle delivers stiffness and reliability
  • AXIS Classic Track wheelset for speed on the boards or the road
  • Body Geometry Toupé Sport saddle w/ steel rails for all-day comfort
  • Specialized Sport, alloy seatpost w/ 2-bolt adjustment for any position
  • Specialized Espoir and Threshold tire combo for optimal city-street handling

Technical Specifications

BOTTOM BRACKET Cr-Mo axle, 68mm
CRANKSET Alloy, square taper
CASSETTE 17T track cog, thread-on w/ steel lock ring
INNER TUBES Standard, presta valve
FRONT TIRE Specialized Espoir Sport, 60TPI, wire bead, double BlackBelt protection, 700x25c
REAR TIRE Specialized Threshold, 60TPI, wire bead, BlackBelt protection, 700x28c
SADDLE Body Geometry Toupé Sport, steel rails, 143mm
TAPE Keirin, Kraton, 175mm
SEATPOST Specialized Sport, alloy, 2-bolt, 27.2mm
HANDLEBARS Specialized Cowhorn, alloy
STEM Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise, anti-corrosion hardware
FRONT BRAKE Tektro, dual-pivot, long reach
BRAKE LEVERS Tektro TL720, aero TT
REAR BRAKE Tektro, dual pivot, long reach
PEDALS Nylon flat test ride, loose-ball, w/ reflectors
HEADSET 1-1/8"" upper, 1-3/8” lower, steel bearings, 20mm alloy cone spacer, w/ 20mm spacers
SEAT BINDER Alloy, 31.8mm
FORK Specialized FACT carbon, alloy crown/steerer
FRAME Specialized A1 Premium Aluminum, Track Geometry, fully manipulated tubing, compact design, integrated headset


Geometry Chart

Langster - Geometry

  46.0 49.0 52.0 54.0 56.0 58.0 61.0
Crank Length 165mm 165mm 165mm 167.5mm 170mm 170mm 172.5mm
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Handle-Bar Width 400mm 400mm 400mm 400mm 420mm 420mm 420mm
Reach 362mm 372mm 384mm 390mm 403mm 409mm 420mm
Stack 478mm 487mm 504mm 518mm 540mm 559mm 576mm
Wheelbase 955mm 957mm 959mm 969mm 973mm 985mm 1000mm
Seat-Tube Length, B-B Center to Top 410mm 440mm 480mm 500mm 520mm 540mm 570mm
Head-Tube Length 95mm 100mm 115mm 130mm 150mm 170mm 190mm
Top-Tube Length, Horizontal 501mm 512mm 529mm 539mm 558mm 569mm 585mm
Front-Center 565mm 568mm 569mm 580mm 584mm 596mm 612mm
Head-Tube Angle 71° 72° 73° 73° 74° 74° 74°
Stand-Over Height 713mm 733mm 763mm 780mm 802mm 821mm 846mm
Fork Rake 45mm 45mm 45mm 45mm 45mm 45mm 45mm
Trail 63mm 59mm 58mm 58mm 58mm 58mm 58mm
Chain-Stay Length 396mm 396mm 395mm 395mm 394mm 394mm 393mm
Seat-Tube Angle 74° 74° 74° 74° 74° 74° 74°
B-B Drop 55mm 55mm 52.5mm 52.5mm 50mm 50mm 47.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
