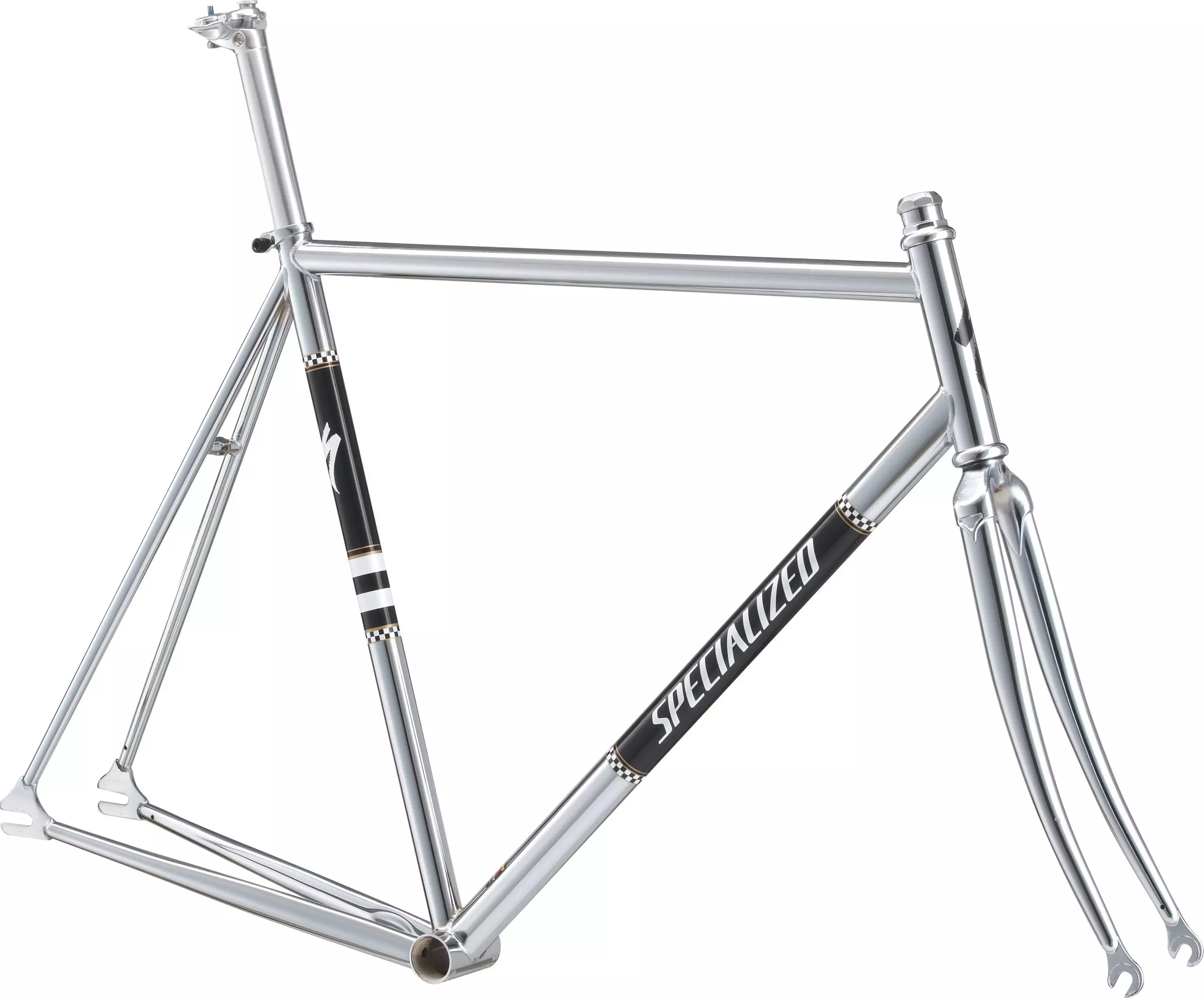

Langster Steel Frameset
Part No.

Langster Steel Frameset

Part No.  23453
load-spinner
Langster Steel Frameset
Overview
Technical Specifications
Geometry
Reviews
Reynolds 520 Cr-Mo frame offers the decades-proven performance and reliability of a well-made steel frame.
  • Reynolds 520 steel tubing gives this frame a classic look and that signature steel feel
  • Timeless steel fork delivers durability and accurate handling while negotiating even the roughest road or track

Technical Specifications

COCKPIT
SEATPOST Specialized Sport, alloy, two-bolt clamp, 27.2mm
FRAMESET
HEADSET Steel, cage bearings, 1"" threaded
SEAT BINDER Integrated w/ frame
FORK Langster Steel
FRAME Specialized Steel, Reynolds 520 tubing, classic track geo, 1"" headset

Geometry

Geometry Chart

Langster - Geometry

  47 49 52 54 56 58 61
Stem Length 60mm 80mm 80mm 100mm 100mm 100mm 100mm
Crank Length 165mm 165mm 167.5mm 170mm 170mm 172.5mm 172.5mm
Handle-Bar Width 400mm 400mm 400mm 400mm 420mm 420mm 420mm
Wheelbase 961mm 974mm 975mm 982mm 991mm 1008mm 1018mm
Seat-Tube Length, B-B Center to Top 490mm 510mm 540mm 560mm 580mm 600mm 630mm
Head-Tube Length 77mm 77mm 97mm 122mm 147mm 172mm 197mm
Top-Tube Length, Horizontal 505mm 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 580mm 580mm 580mm 587mm 595mm 610mm 617mm
Head-Tube Angle 71° 71.75° 72.5° 72.5° 73° 73° 73.5°
Fork Rake 45mm 45mm 45mm 45mm 43mm 43mm 43mm
Trail 60mm 65mm 60mm 60mm 59mm 59mm 56mm
Stand-Over Height 767mm 746mm 767mm 791mm 817mm 841mm 866mm
Chain-Stay Length 392mm 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 76° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 350mm 350mm 350mm 350mm 350mm 350mm
