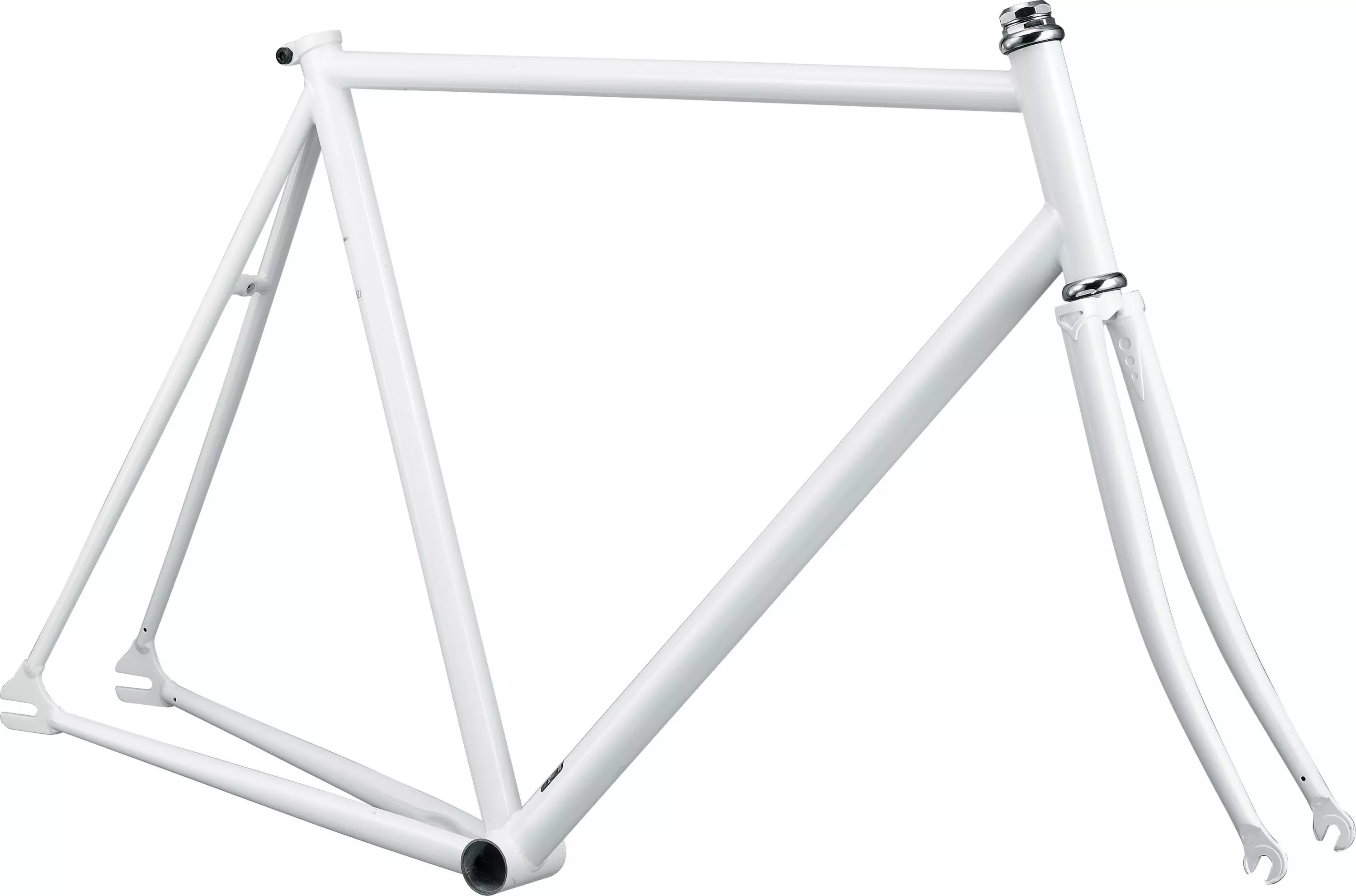

Langster Steel Frameset
Part No.

Langster Steel Frameset

Part No.
load-spinner
Langster Steel Frameset
Overview
Technical Specifications
Geometry
Reviews
Designed for everyone from competitive track racers to hard core urban commuters, the singlespeed Langster™ is an icon for pure and ruthless efficiency and unforgiving speed. If one of our A1 Premium Aluminum models isn't enough to satisfy those in search of their perfect track missile, maybe our new steel Langster with classic track geometry will do the trick.
  • Sleek steel fork provides solid and reassuring steering response
  • Timeless Reynolds 520 steel frame with classic track geometry makes friends wherever it goes

Technical Specifications

FRAMESET
HEADSET Steel, cage bearings, 1"" threaded
SEAT BINDER Integrated w/ frame
FORK Langster Steel
FRAME Specialized Langster Steel, Reynolds 520 tubing

Geometry

Geometry Chart

- Geometry

  47 49 52 54 56 58 61
Crank Length 165mm 165mm 165mm 167.5mm 170mm 170mm 172.5mm
Stem Length 80mm 80mm 90mm 100mm 100mm 110mm 120mm
Handle-Bar Width 400mm 400mm 400mm 400mm 400mm 420mm 420mm
Wheelbase 961mm 974mm 975mm 982mm 991mm 1008mm 1018mm
Seat-Tube Length, B-B Center to Top 490mm 510mm 540mm 560mm 580mm 600mm 630mm
Head-Tube Length 77mm 77mm 97mm 122mm 147mm 172mm 197mm
Top-Tube Length, Horizontal 505mm 518mm 537mm 548mm 565mm 582mm 600mm
Front-Center 580mm 580mm 580mm 587mm 595mm 610mm 617mm
Head-Tube Angle 71° 71.75° 72.5° 72.5° 73° 73° 73.5°
Stand-Over Height 767mm 746mm 767mm 791mm 817mm 841mm 866mm
Fork Rake 45mm 45mm 45mm 45mm 43mm 43mm 43mm
Trail 60mm 65mm 60mm 60mm 59mm 59mm 56mm
Chain-Stay Length 392mm 405mm 405mm 405mm 405mm 407mm 410mm
Seat-Tube Angle 76° 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Post Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
