Langster Rio
$950.00
Part No.

Langster Rio

$950.00
Part No.  106573
load-spinner
Langster Rio
Overview
Technical Specifications
Geometry
Reviews

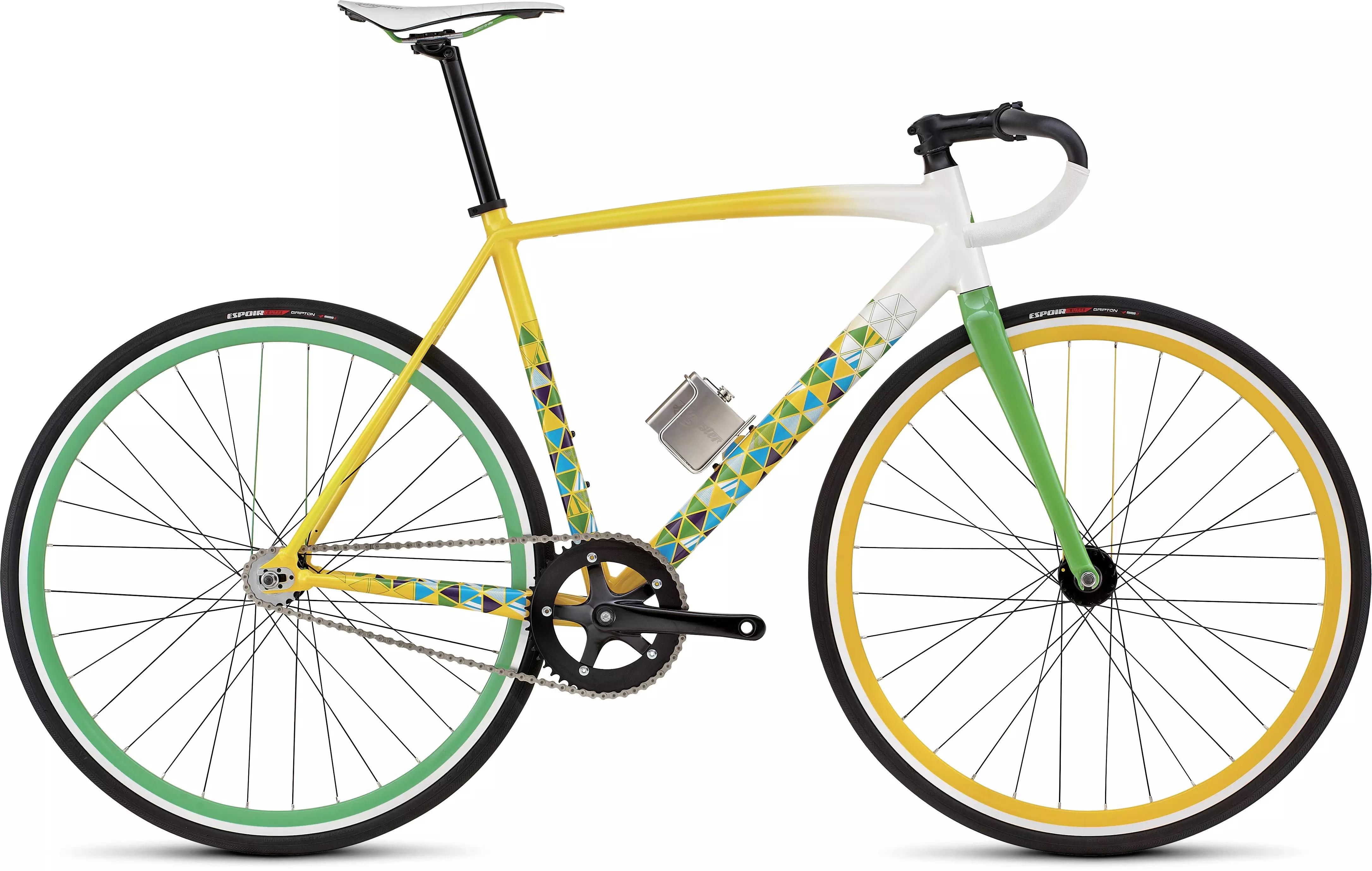

The Langster Rio has everything that you'd expect from a purpose-built track bike, only with a little Brazilian flair cooked in. It features a special Brazilian-themed paint job and an integrated flask on the down tube, while also incorporating a FACT carbon fiber fork that increases front end rigidity and steering response. Carnival tickets sold separately.
  • Alloy square taper crankset with 48T chainring has plenty of stiffness, and it's built tough to last for years to come.
  • A1 Premium Aluminum frame with track-specific geometry has fully manipulated tubing and impressive overall stiffness, making the Langster a formidable threat on both the track and the streets.
  • Specialized FACT carbon fiber fork increases front end rigidity, while also providing excellent steering response for the unique demands of the track.

Technical Specifications

FRAMESET
SEAT BINDER Alloy, 31.8mm
HEADSET 1-1/8"", integrated sealed Cr-Mo cartridge bearings, 20mm alloy cone spacer, w/ 20mm spacers
FORK Specialized FACT carbon, alloy crown/steerer
FRAME Specialized A1 Premium Aluminum, Track Geometry, fully-manipulated tubing, compact design, integrated headset
DRIVETRAIN
BOTTOM BRACKET Cr-Mo axle, 68mm
CHAIN KMC Z510HX, singlespeed
CRANKSET Alloy, square taper, 48T
CASSETTE Joytech, track cog, 17t
COCKPIT
SADDLE Body Geometry Toupé Comp Gel, hollow Cr-Mo rails, 143mm
TAPE Keirin, Kraton, 175mm
SEATPOST Specialized Sport, alloy, 2-bolt, 27.2mm
HANDLEBARS Specialized Langster Comp, short drop
STEM Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise
BRAKES
BRAKE LEVERS Tektro, forged alloy, ergo design
FRONT BRAKE Tektro, dual-pivot, long reach
REAR BRAKE Tektro, dual pivot, long reach
ACCESSORIES
PEDALS Nylon, loose ball bearings, w/ reflectors
WHEELS
REAR WHEEL AXIS Classic Track Deep
INNER TUBES Standard, Presta valve
FRONT TIRE Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25mm
REAR TIRE Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25mm
FRONT WHEEL AXIS Classic Track Deep

Geometry

Geometry Chart

Langster - Geometry

  46 49 52 54 56 58 61
Stem Length 75mm 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 165mm 165mm 165mm 167.5mm 170mm 170mm 172.5mm
Seatpost Length 300mm 300mm 350mm 350mm 350mm 350mm 350mm
Handlebar Width 400mm 400mm 400mm 400mm 420mm 420mm 420mm
Reach 362mm 372mm 384mm 390mm 403mm 409mm 420mm
Stack 480mm 488mm 503mm 517mm 537mm 557mm 573mm
Wheelbase 948mm 952mm 960mm 971mm 980mm 992mm 1008mm
Bike Stand-Over Height 713mm 733mm 763mm 780mm 802mm 821mm 846mm
Head-Tube Length 95mm 100mm 115mm 130mm 150mm 170mm 190mm
Front-Center 559mm 563mm 571mm 582mm 592mm 603mm 619mm
Fork Rake/Offset 45mm 45mm 45mm 45mm 45mm 45mm 45mm
Head-Tube Angle 71° 72° 73° 73° 74° 74° 74°
Trail 69mm 63mm 57mm 57mm 51mm 51mm 51mm
B-B Height 285mm 285mm 287.5mm 287.5mm 290mm 290mm 292.5mm
Chain-Stay Length 396mm 396mm 395mm 395mm 394mm 394mm 393mm
Fork Length (full) 369mm 369mm 369mm 369mm 369mm 369mm 369mm
Seat-Tube Angle 74° 74° 74° 74° 74° 74° 74°
B-B Drop 55mm 55mm 53mm 53mm 50mm 50mm 48mm
Seat-Tube Length 410mm 440mm 480mm 500mm 520mm 540mm 570mm
Top-Tube Length (horizontal) 500mm 512mm 528mm 538mm 557mm 569mm 584mm
