Langster Pro Frameset Ltd
$940.00
Part No.

Langster Pro Frameset Ltd

$940.00
Part No.  23642
load-spinner
Langster Pro Frameset Ltd
Overview
Technical Specifications
Geometry
Reviews

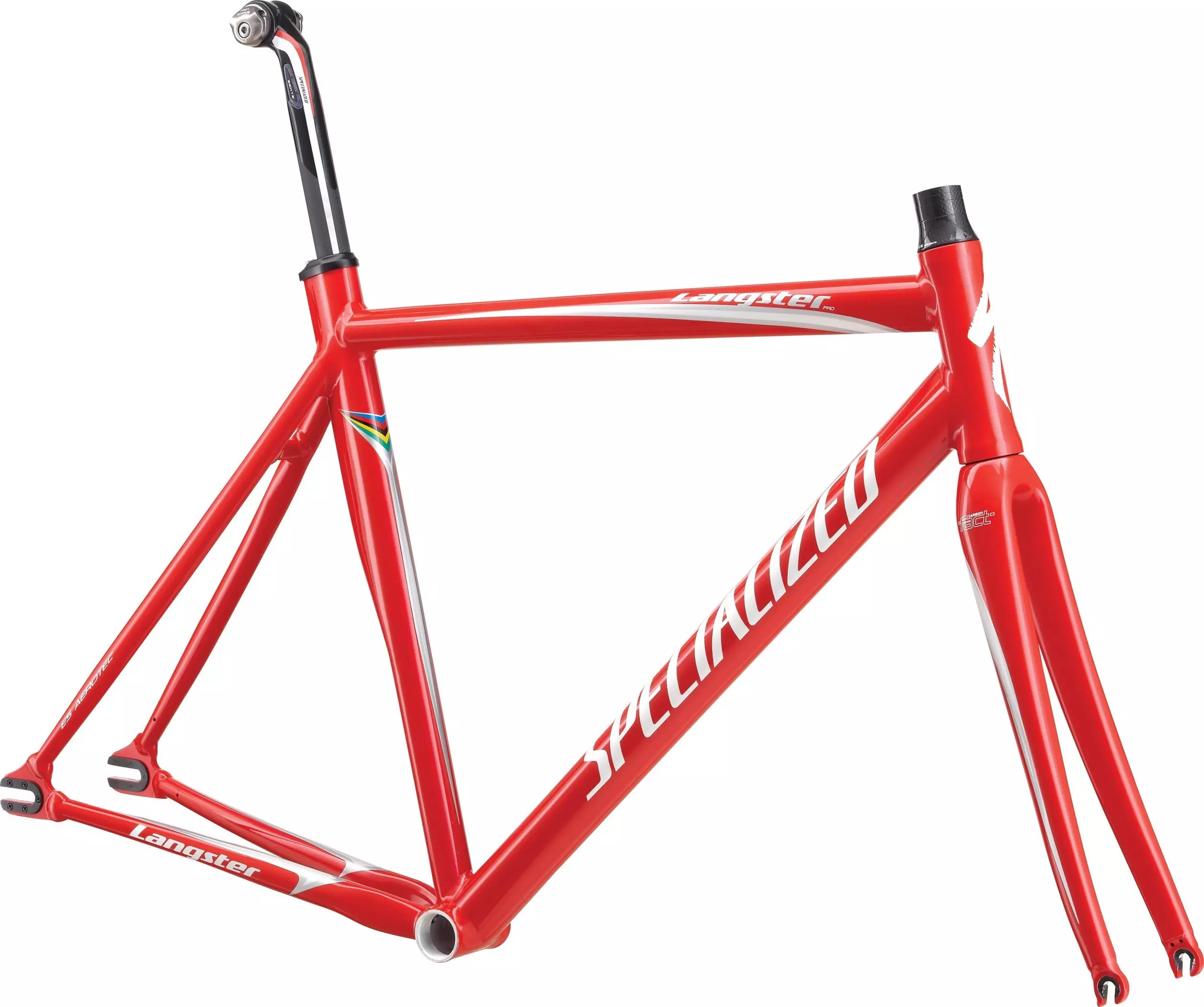

The Langster Pro frameset is an ideal way to start building the perfect track bike. E5 aluminum frame and S-Works FACT carbon fork are ultra-light, super-stiff.
  • Ultralight S-Works FACT carbon monocoque fork with is stiff, responsive and durable
  • FACT carbon seatpost with Zertz insert is stiff enough for the track, but also helps absorb bumps in the road
  • E5 alloy compact frame with integrated headset and fully manipulated tubing excels - and stands out - in the city or at the track

Technical Specifications

COCKPIT
SEATPOST Specialized Pro, FACT carbon w/ Zertz insert
FRAMESET
HEADSET 1-1/8"" Cr-Mo cartridge bearings with carbon 20mm cone spacer and 20mm of carbon spacers
SEAT BINDER Forged alloy, wedge-style
FORK S-Works FACT carbon full monocoque
FRAME Specialized E5 aluminum, fully manipulated tubing, smooth welded, integrated headset

Geometry

Geometry Chart

Langster - Geometry

  49 52 54 56 58 61
Wheelbase 948mm 960mm 963mm 971mm 979mm 992mm
Seat-Tube Length, B-B Center to Top 420mm 480mm 500mm 520mm 540mm 570mm
Head-Tube Length 100mm 110mm 130mm 150mm 170mm 195mm
Top-Tube Length, Horizontal 510mm 530mm 540mm 555mm 570mm 588mm
Front-Center 566mm 579mm 580mm 588mm 596mm 608mm
Head-Tube Angle 73° 73° 73.5° 74° 74.5° 74.5°
Fork Rake 43mm 43mm 43mm 43mm 43mm 43mm
Trail 59mm 59mm 56mm 53mm 50mm 50mm
Stand-Over Height 711mm 739mm 760mm 779mm 800mm 826mm
Chain-Stay Length 390mm 390mm 390mm 390mm 390mm 390mm
Seat-Tube Angle 76° 75° 74.5° 74.25° 74° 73.5°
B-B Drop 61mm 61mm 59mm 59mm 57mm 57mm
Seat-Post Length 0mm 0mm 0mm 0mm 0mm 0mm
