Jynx Sport 650b
Overview
Technical Specifications
Geometry
Reviews

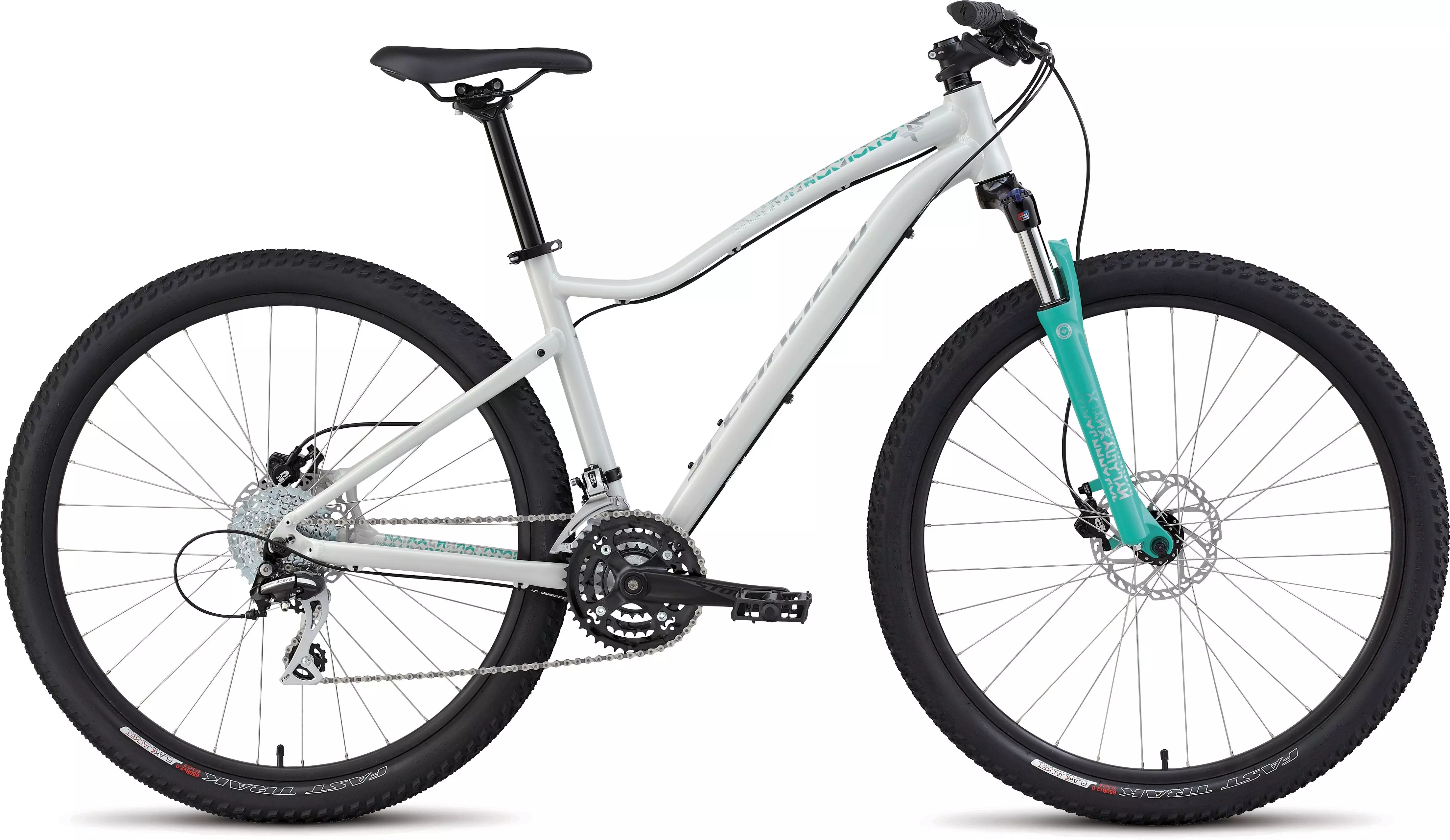

The Jynx is an all-new 650b hardtail mountain bike anatomically engineered for women, equipped for trail and neighborhood adventures. The Jynx Sport features a custom-tuned 80mm-travel SR Suntour fork, Tektro Auriga hydraulic disc brakes, and fast-rolling Specialized Fast Trak tires.
  • Women's Body Geometry XCT, lock-on grips provide reliable bar control
  • Tektro Auriga, hydraulic disc brakes w/ women's short-reach levers for maximum stopping power
  • Body Geometry Women's Riva Sport Plus saddle features generous padding for all-day comfort
  • Specialized Stout, disc brake-specific wheels are strong and durable
  • Shimano Acera, 8-speed rear derailleur for reliable, crisp shifting
  • Custom SR Suntour XCT 80mm-travel fork w/ exclusive Multi-Circuit Damping
  • Specialized Stout, 8-speed crankset for efficient and precise shifting
  • A1 Premium Aluminum frame w/ Women's Recreational XC Geometry for stability and control

Technical Specifications

FRAMESET
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 34.9mm
HEADSET 1-1/8"" upper/lower, Zerostack 44, steel cups, loose ball bearings
FRAME Specialized A1 Premium Aluminum, Women's Recreational XC Geometry, women's butted tubesets, forged dropouts, replaceable derailleur hanger, kickstand mount
WHEELS
FRONT HUB Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h
REAR HUB Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
INNER TUBES Standard, Schrader valve
SPOKES Stainless, 14g, w/ brass nipple
FRONT TIRE Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0""
RIMS Specialized Stout, 650b disc, alloy double-wall, pin joint, 25mm inner width, 32h
REAR TIRE Specialized Fast Trak Sport, 40TPI, wire bead, Flak Jacket protection, 650bx2.0""
DRIVETRAIN
BOTTOM BRACKET Square taper, cartridge bearings
CHAIN KMC X8, 8-speed, reusable Missing Link
CRANKSET Specialized Stout, forged alloy, 8-speed, square taper spindle
CASSETTE Sunrace, 8-speed, 11-34
SHIFT LEVERS Shimano Altus Rapidfire Plus, SL type, w/ optical display
FRONT DERAILLEUR Shimano Altus, high mount, bottom swing, dual-pull
REAR DERAILLEUR Shimano Acera, 8-speed, SGS cage
COCKPIT
SADDLE Body Geometry Women's Riva Sport Plus, steel rails, 155mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware
GRIPS Specialized Body Geometry XCT Women's, Kraton w/ gel, lock-on, closed end, 121.5mm
HANDLEBARS Specialized, low rise, double butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 31.8mm
STEM Specialized 3D forged alloy, 4-bolt, 7-degree rise, anti-corrosion hardware
BRAKES
BRAKE LEVERS Tektro Auriga, hydraulic, women's short reach
FRONT BRAKE Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust
REAR BRAKE Tektro Auriga, hydraulic disc, resin/metallic pads, tooled women's reach adjust
ACCESSORIES
PEDALS Composite platform, w/ reflectors, 9/16""
SUSPENSION
FORK Custom SR Suntour XCT 650b, w/ custom Multi-Circuit Damping, alloy lowers, custom coil/MCU spring weights, Hi-Ten 28mm stanchions, 1-1/8"" steerer, hydraulic lockout w/ preload adjust, disc mount, 80mm travel

Geometry

Geometry Chart

Jynx - Geometry

  XS SM MD LG
Stem Length 60mm 60mm 80mm 80mm
Crank Length 170mm 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm 350mm
Handlebar Width 640mm 640mm 660mm 660mm
Reach 362mm 382mm 390mm 407mm
Stack 576mm 576mm 587mm 597mm
Chainstay Length 426mm 426mm 426mm 426mm
Bottom Bracket Drop 48mm 48mm 48mm 48mm
Front Center 606mm 626mm 633mm 653mm
Seat Tube Angle 74° 74° 73° 73°
Head Tube Angle 69.5° 69.5° 70° 70°
Head Tube Length 100mm 100mm 110mm 120mm
Top Tube Length (Actual) 527mm 537mm 548mm 565mm
Top Tube Length (Horizontal) 527mm 547mm 569mm 589mm
Seat Tube Length, Center to Top 330mm 371mm 417mm 463mm
Standover Height 668mm 686mm 715mm 745mm
Wheel Base 1027mm 1047mm 1054mm 1075mm
Bottom Bracket Height 301mm 301mm 301mm 301mm
