Jett Expert
$1,150.00
Part No.

Jett Expert

$1,150.00
Part No.  65476
load-spinner
Jett Expert
Overview
Technical Specifications
Geometry
Reviews

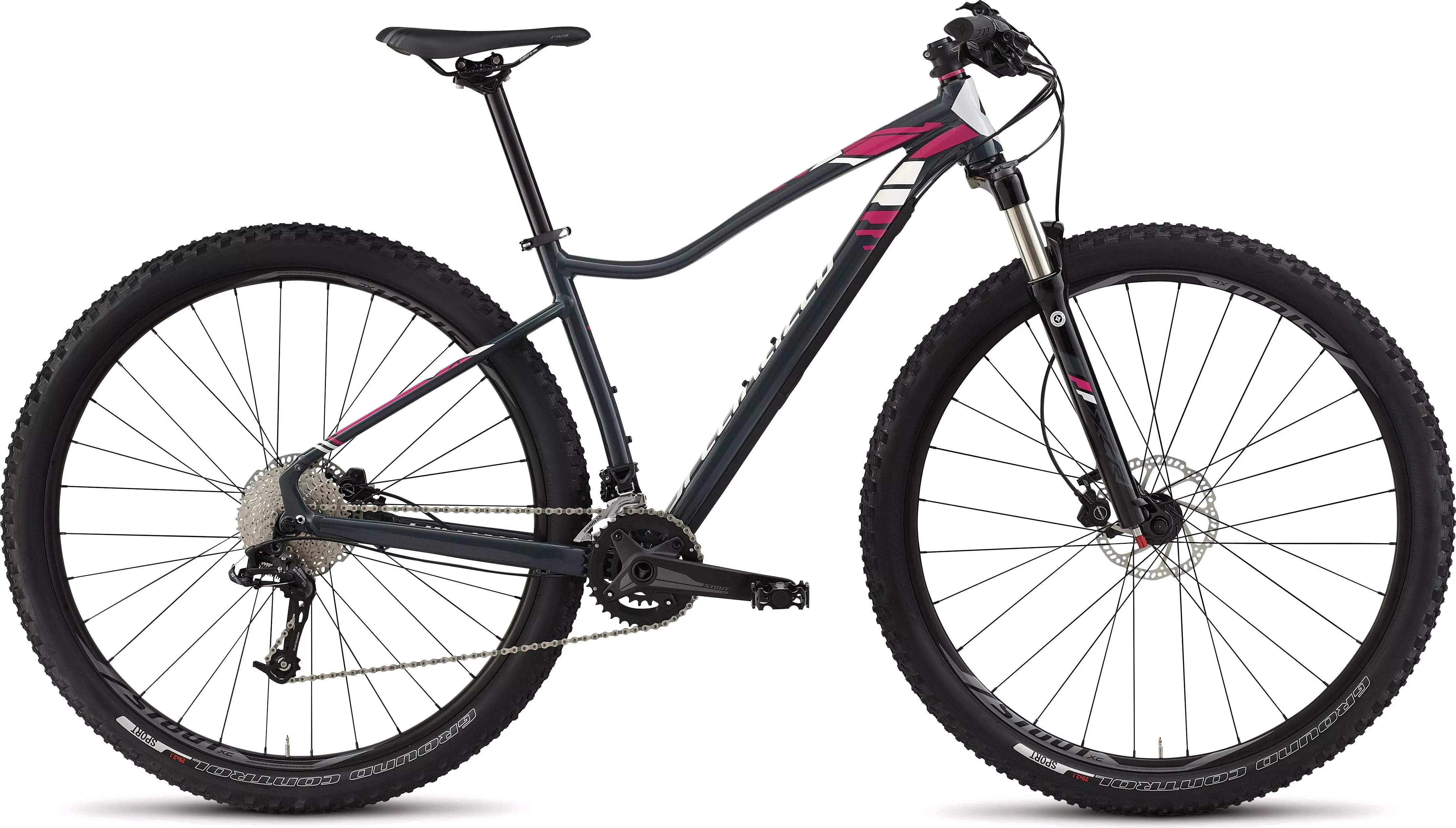

Jett provides the smooth ride and improved handling of 29" wheels in an A1 SL Premium Aluminum XC trail bike for women. The Jett Expert features Women's XC 29er Geometry, custom SR Suntour XCR-AIR 29 fork, and Tektro Gemini hydraulic disc brakes.
  • Body Geometry Women's Riva Comp saddle features generous padding for all-day comfort
  • Custom SR Suntour XCR-AIR 80mm-travel fork w/ exclusive Multi-Circuit Damping
  • Specialized Stout XC, 2x10 crankset for efficient and precise shifting
  • Women's Body Geometry XC Contour, lock-on grips provide slip-free bar control
  • Tektro Gemini, hydraulic disc brakes for all-weather stopping power
  • SRAM X5, 10-speed rear derailleur for lightweight and crisp shifting
  • A1 SL Premium Aluminum frame w/ Women's XC 29er Geometry is lightweight and efficient

Technical Specifications

FRAMESET
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 34.9mm
HEADSET 1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
FRAME Specialized A1 SL Aluminum, Women's XC 29er Geometry, women's fully butted tubesets, tapered headtube, forged post-mount 160mm dropouts, replaceable derailleur hanger
WHEELS
FRONT HUB Specialized Stout XC disc, alloy, RCC bearing system, QR, 28h
REAR HUB Specialized Stout XC disc, alloy, RCC bearing system, QR, 32h
INNER TUBES Standard, presta valve
SPOKES Stainless, 14g, black
FRONT TIRE Specialized Ground Control Sport, 60TPI, wire bead, 29x2.1""
RIMS Specialized Stout XC, 29"" disc, alloy double-wall, pin joint, 26mm inner width, 28/32h
REAR TIRE Specialized Ground Control Sport, 60TPI, wire bead, 29x2.1""
DRIVETRAIN
BOTTOM BRACKET 24mm BSA for 2 pc. design, 73mm
CHAIN KMC X10, 10-speed, w/ reusable MissingLink
CRANKSET Specialized Stout XC, 2x10, 2 pc., 24mm spindle, 36/22, anti-corrosion hardware
CASSETTE Sunrace, 10-speed, 11-36
SHIFT LEVERS SRAM X5, 2x10, trigger
FRONT DERAILLEUR SRAM X5, 2x10, high mount
REAR DERAILLEUR SRAM X5, 10-speed, long cage
COCKPIT
SADDLE Body Geometry Women's Riva Sport, steel rails, 155mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm, anti-corrosion hardware
GRIPS Specialized Body Geometry XC Contour Women's, Kraton w/ gel, lock-on, closed end
HANDLEBARS Specialized Stout XC, flat bar, double butted 6061 alloy, 9-degree backsweep, 4-degree upsweep, 31.8mm
STEM Specialized 3D forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware
BRAKES
BRAKE LEVERS Tektro Gemini, hydraulic, short reach adjust
FRONT BRAKE Tektro Gemini, hydraulic disc, resin pads
REAR BRAKE Tektro Gemini, hydraulic disc, resin pads
ACCESSORIES
PEDALS Alloy, 1 pc. body, 9/16"", w/ reflectors
SUSPENSION
FORK Custom SR Suntour XCR-AIR 29, w/ custom Multi-Circuit Damping, custom women's air spring, Hi-Ten 32mm stanchions, tapered alloy steerer, remote hydraulic lockout w/ preload adjust, disc mount, 80mm travel

Geometry

Geometry Chart

Jett - Geometry

SM MD LG
  SM MD LG
Stem Length 60mm 70mm 70mm
Crank Length 170mm 170mm 175mm
Seatpost Length 350mm 350mm 350mm
Handlebar Width 660mm 660mm 660mm
Reach 377mm 396mm 412mm
Stack 589mm 601mm 615mm
Chainstay Length 442mm 442mm 442mm
Bottom Bracket Drop 63.5mm 63.5mm 63.5mm
Front Center 615mm 633mm 654mm
Seat Tube Angle 73.5° 73.5° 73.5°
Head Tube Angle 70.5° 71° 71°
Head Tube Length 90mm 100mm 115mm
Top Tube Length (Actual) 531mm 548mm 567mm
Top Tube Length (Horizontal) 552mm 574mm 594mm
Seat Tube Length, Center to Top 381mm 432mm 483mm
Standover Height 711mm 746mm 768mm
Wheel Base 1049mm 1067mm 1088mm
Bottom Bracket Height 305mm 305mm 305mm
