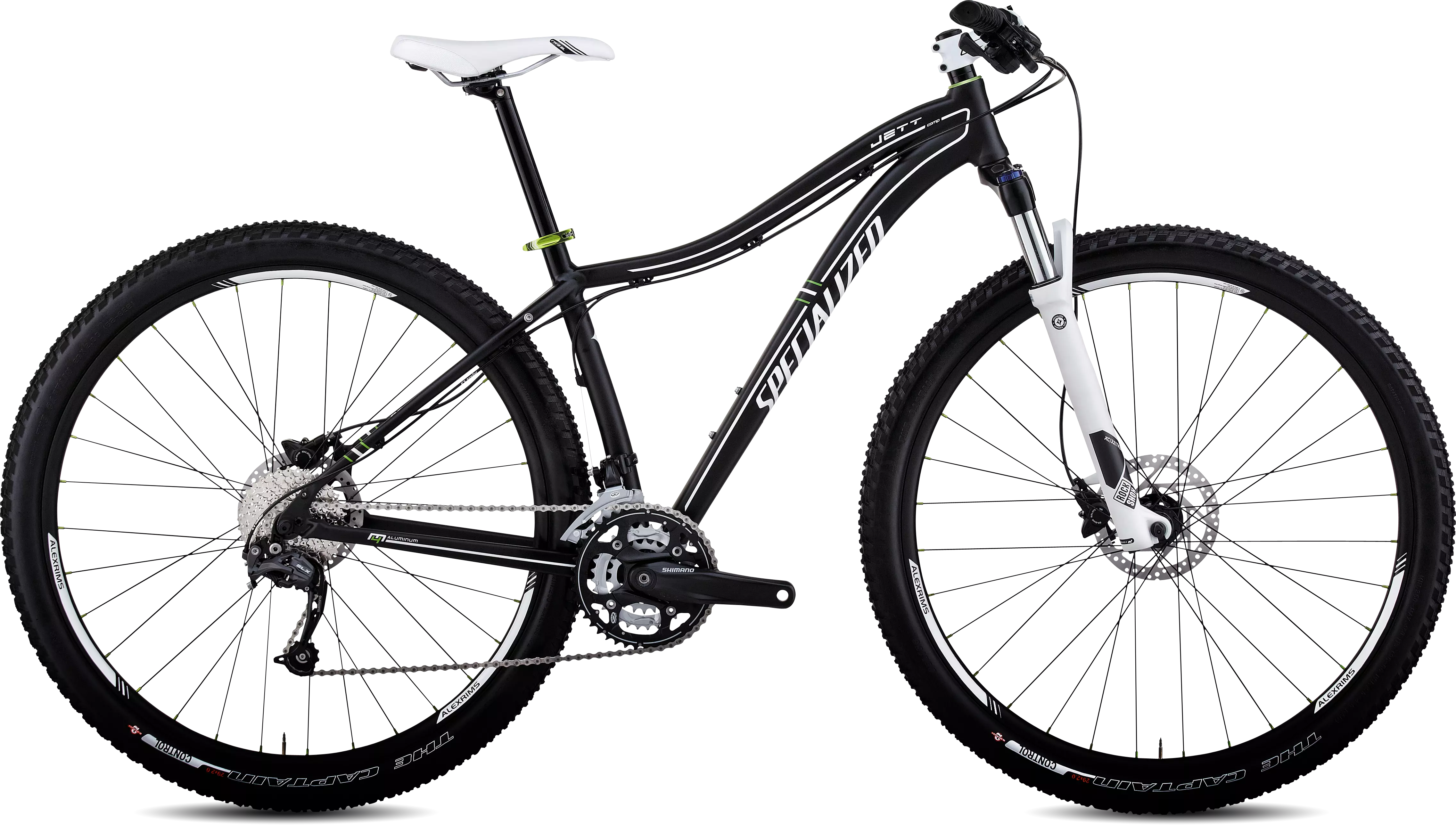

Jett Comp 29
2012 Jett Comp 29
Technical Specifications
FRAMESET
FRAME
M4 29"" fully manipulated alloy frame, fully butted w/ smooth welding, women's performance 29"" geometry and tubesets, integrated headset, forged post-mount 160mm dropouts w/ replaceable hanger, disc only
HEADSET
Integrated 1-1/8"" threadless, Campy-style, full cartridge bearings
SEAT BINDER
31.8mm, forged alloy, extruded QR lever
SUSPENSION
FORK
RockShox XC32 TK SL 29, magnesium lower, 32mm Cr-Mo stanchions, 1-1/8"" alloy steerer, coil spring w/ preload adj., custom women's spring rates, TurnKey damping w/ LO & external reb. adj., 80mm travel
WHEELS
RIMS
Alex RH Disc 29"", alloy double-wall, 28mm, pin joint, 32h
FRONT HUB
Formula disc hub, alloy 7075 axle, high-low flange, double-sealed cartidge bearings, machined disc mount and flange, QR, 32h
REAR HUB
Formula rear disc hub, cassette, double-sealed loose ball, polished races, machined disc mount and flanges, 19mm contact, QR, 32h
SPOKES
Stainless, 2.0mm (14g)
FRONT TIRE
Specialized The Captain Control, 60 TPI, 2Bliss Ready, aramid bead, dual compound, 29x2.0""
REAR TIRE
Specialized The Captain Control, 60 TPI, 2Bliss Ready, aramid bead, dual compound, 29x2.0""
INNER TUBES
Presta valve
DRIVETRAIN
FRONT DERAILLEUR
Shimano Alivo, 9-speed, 34.9mm clamp, bottom-swing, dual-pull
REAR DERAILLEUR
Shimano SLX Shadow, 9-speed, SGS cage
SHIFT LEVERS
Shimano Alivio, 9-speed Rapidfire plus, SL type w/ optical display
CASSETTE
Shimano 9-speed, 11-34t
CHAIN
KMC X-9, 9-speed, reusable Missing Link
CRANKSET
Shimano Alivio, 3pc, 9-speed, Octalink spline
CHAINRINGS
44/32/22, replaceable
BOTTOM BRACKET
Shimano, Octalink spline, cartridge bearing, 73mm
COCKPIT
STEM
Specialized 3D forged 6061 alloy, 4 bolt clamp, 7º rise, 31.8mm
HANDLEBARS
XC flat bar, double butted alloy, 10º backsweep, 4º upsweep, 31.8mm
GRIPS
Women's Body Geometry XCT, dual density Kraton, closed end, 120mm
SADDLE
Women's Body Geometry Riva SL, 155mm width
SEATPOST
Forged 6061 alloy, 2 bolt head, 27.2mm, 12.5mm offset, micro adjust
BRAKES
FRONT BRAKE
Shimano BR-M446 hydraulic disc brake, post mount, 160mm 6-bolt rotor
REAR BRAKE
Shimano BR-M446 hydraulic disc brake, post mount, 160mm 6-bolt rotor
BRAKE LEVERS
Shimano BR-M446, hydraulic lever
ACCESSORIES
PEDALS
Alloy 1pc. body and cage, reflector kit, 9/16""
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 15.0 | 17.0 | 19.0 | |
|---|---|---|---|
| Top Tube Length (Horizontal) | 552mm | 575mm | 595mm |
| Seat Tube Angle (Effective) | 73.5° | 73.5° | 73.5° |
| Top Tube Length (Actual) | 530mm | 549mm | 570mm |
| Seat Tube Angle (Actual) | 71° | 71° | 71° |
| Seat Tube Length, Center to Top | 381mm | 431.8mm | 482.6mm |
| Bottom Bracket Drop | 63.5mm | 63.5mm | 63.5mm |
| Bottom Bracket Height | 305mm | 305mm | 305mm |
| Wheel Base | 1056mm | 1068mm | 1089mm |
| Standover Height | 710mm | 741mm | 775mm |
| Stack | 590mm | 604mm | 618mm |
| Reach | 377mm | 396mm | 412mm |
| Head Tube Length | 90mm | 100mm | 115mm |
| Head Tube Angle | 70.5° | 71° | 71° |
| Chainstay Length | 442mm | 442mm | 442mm |
| Crank Length | 170mm | 170mm | 175mm |
| Handlebar Width | 660mm | 680mm | 680mm |
| Stem Length | 75mm | 75mm | 90mm |
| Seatpost Length | 350mm | 350mm | 400mm |
