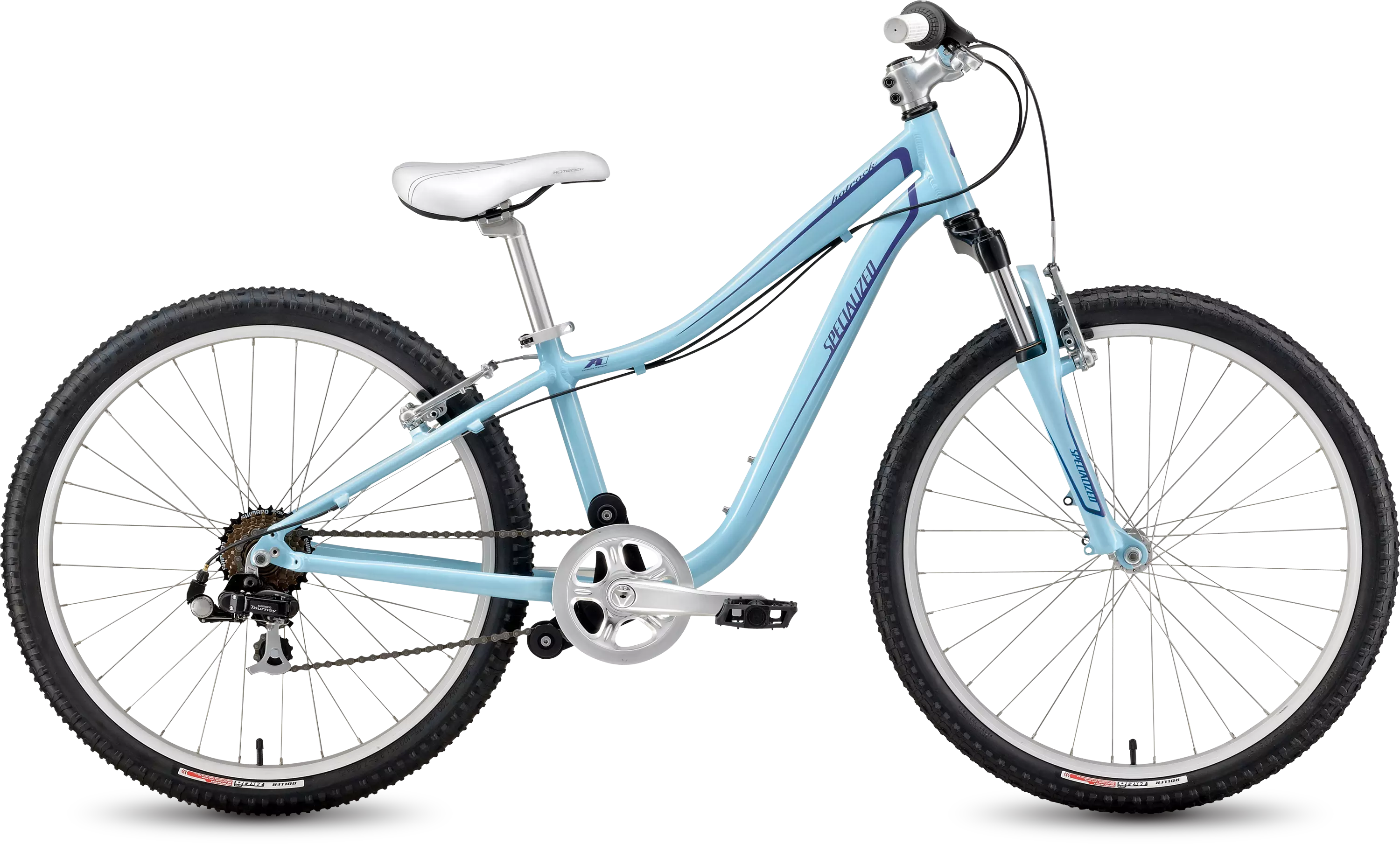

Hotrock 24 7-Speed Girls
Overview
Technical Specifications
Geometry
Reviews
7-speeds on the Hotrock 24 make it perfect for zipping around the campground or the out-n-back ride on the bike path.
  • 24" A1 Premium Aluminum frame with low standover height for care-free starts and stops plus room for full-sized water bottle
  • 50mm-travel SR Suntour suspension fork with lightweight alloy lowers and pre-load adjust takes the edge off bumps for more control
  • Specialized Roller tires provide a knobby grip for dirt, but roll easily on pavement
  • Forged alloy crank arms give big kids more power, and a chainguide keeps pant legs clean on the way to school
  • Kid's Body Geometry saddle is durable and comfortable and fits young riders perfectly
  • Shimano Revo 7-speed twist shifters allow easy, safe gear changes without switching hand position on the bars
  • Shimano Revo 7-speed twist shifters allow easy, safe gear changes without switching hand position on the bars
  • Shimano 7-speed, 14-28t freewheel offers kid-friendly gearing options optimized for smooth shifts
  • Lightweight 32-spoke alloy rims are durable and provide a stable platform for learning

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-50, 1/2"" x 3/32""
BOTTOM BRACKET Water sealed, loose ball, 68mm x 128mm
CRANKSET Forged alloy arms, steel single ring, w/ dual roller chainguide
SHIFT LEVERS Shimano RS-31, 6-speed, Revo Twist
CASSETTE Shimano 7-speed, 14-28t
CHAINRINGS 36T, w/ chainguard
REAR DERAILLEUR Shimano FT-30, 7-speed, direct mount
WHEELS
FRONT HUB Forged alloy, loose ball, nutted axle, 32h
REAR HUB Forged alloy, freewheel type, 32h, nutted axle
INNER TUBES Schrader valve
SPOKES Stainless, 2.0mm (14g)
FRONT TIRE Specialized Roller Sport, 30 TPI, wire bead, 24x2.125""
RIMS Alex C-1000, alloy single-wall, 32h
REAR TIRE Specialized Roller Sport, 30 TPI, wire bead, 24x2.125""
COCKPIT
SADDLE Specialized Kids Body Geometry, 1pc., 7mm rail w/ clamp
SEATPOST Alloy, 27.2mm, micro adjust
STEM Alloy Ahead, 4 bolt, 20º rise, 25.4mm clamp
HANDLEBARS Hi-Ten riser bar, 40mm rise, 10º backsweep, 6º upsweep, 25.4mm
GRIPS Specialized Revo type
BRAKES
FRONT BRAKE Die cast, alloy ""V"" brake, 1pc. pad
BRAKE LEVERS Tektro junior reduced-reach ""V"", alloy, linear pull compatible
REAR BRAKE Die cast, alloy ""V"" brake, 1pc. pad
ACCESSORIES
PEDALS Composite platform w/ reflectors, loose ball, 9/16""
FRAMESET
HEADSET 1-1/8"" threadless, loose ball
SEAT BINDER 34.9mm, alloy, extruded QR lever/collar
FORK SR Suntour SF11-XCT-JR-24, 1pc. alloy lower, 25.4mm Hi-Ten stanchions, 1-1/8"" Hi-Ten steerer, coil/mcu w/ preload adj., 50mm travel
FRAME Specialized A1 Premium Aluminum, 24"" frame, suspension fork geo w/ low standover TT, formed DT/TT, forged dropouts w/ replaceable hanger

Geometry

Geometry Chart

Hotrock - Geometry

  7-SPD 21-SPD
Top Tube Length (Actual) 498mm 498mm
Top Tube Length (Horizontal) 507mm 507mm
Seat Tube Length, Center to Top 312mm 312mm
Standover Height 586mm 586mm
Wheel Base 978mm 992mm
Chainstay Length 410mm 420mm
Front Center 572mm 572mm
Bottom Bracket Height 262mm 262mm
Seat Tube Angle 73° 73°
Head Tube Angle 69° 69°
Rake 40mm 40mm
Head Tube Length 120mm 120mm
