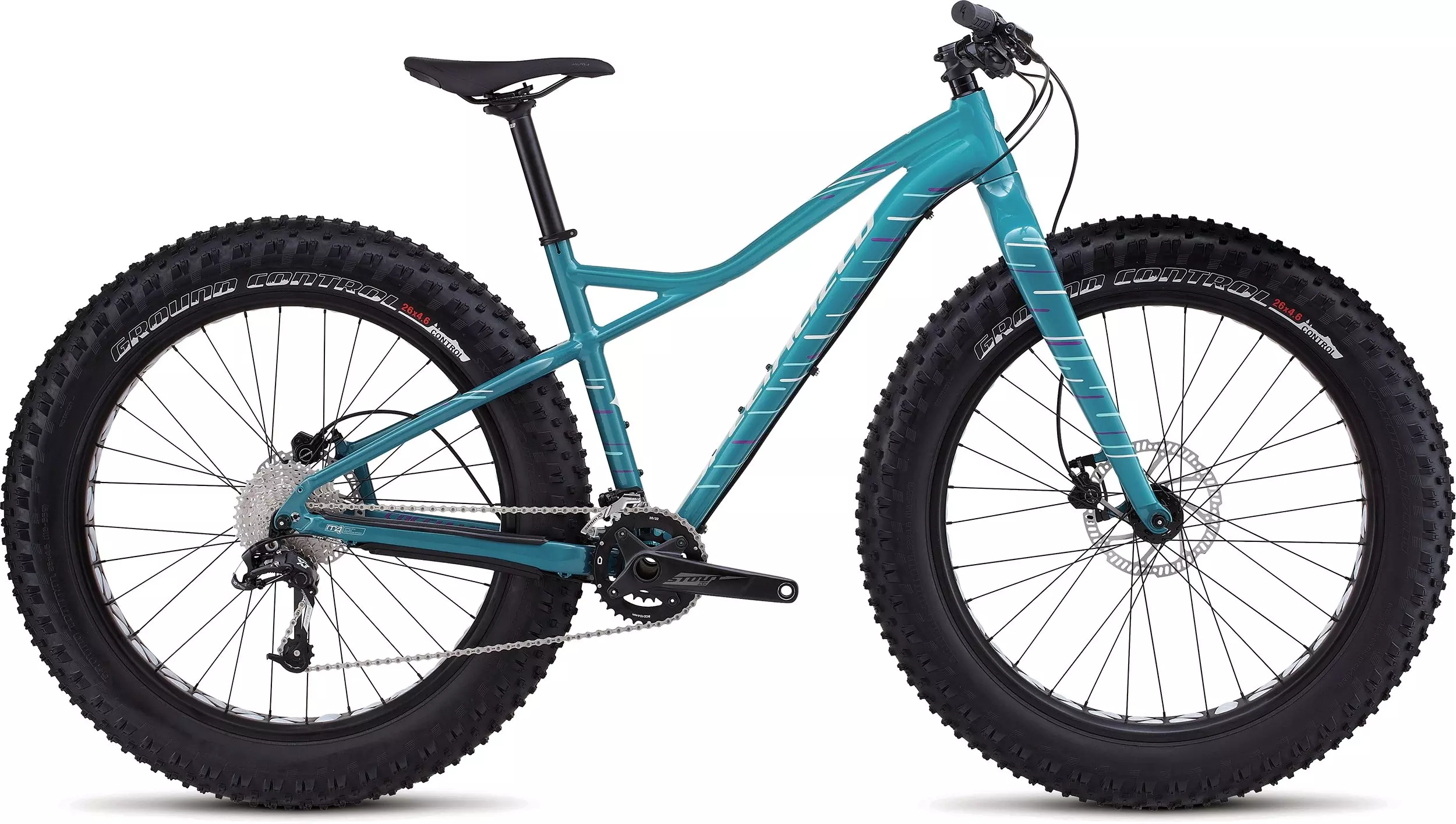

2017 Hellga Comp

0 Reviews

Fat bikes are for more than just the snow—they're for anyone that wants the confidence…

Color:

Pearl Turquiose/Light Turquiose/Deep Fuschia

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Choose the color and size you're looking for to search nearby store inventory.

Unavailable

This item is not available for Find Nearby

Product Details

Fat bikes are for more than just the snow—they're for anyone that wants the confidence that comes from the superb traction, floatation, and control of the Hellga Comp. Consider it a recipe for having a blast out on the trail—whether it's loose hero dirt or packed-in snow. To make sure you have a good time, the bike features a durable aluminum frame, a carbon fork, an ultra-low standover, plus a super reliable groupset and hydraulic brakes. It's all the ingredients needed to turn heads and to dish out fun wherever she goes.

Hellga’s M4 Aluminum frame with ultra-low standover is lightweight, durable, and provides a confident and maneuverable ride, both up and down the trail.
The lightweight FACT carbon fork delivers superb handling and control while absorbing trail chatter.
Tackle dirt, sand, and snow with equal confidence, thanks to the Hellga’s 26x4.6” Ground Control Fat tires, featuring a custom tread pattern for great traction, acceleration and control.

Technical Specifications

FRAMESET

FRAME

Specialized M4 Aluminum, smooth welds, tapered head tube, forged post-mount disc dropouts, 190mm rear hub spacing, replaceable alloy derailleur hanger

SEAT BINDER

Alloy, 31.8mm

SUSPENSION

FORK

Specialized FACT carbon, full monocoque, tapered steerer, 135mm hub spacing, open QR dropouts

WHEELS

SPOKES

Stainless, 14g, black

INNER TUBES

Standard, Presta valve

RIMS

Stout XC, hookless alloy, single wall, 90mm inner width, sleeve joint, 32h

FRONT HUB

Specialized Stout XC 135, disc, sealed cartridge bearings, QR, 32h

REAR HUB

Specialized Stout XC 190, Hi Hi disc, alloy, sealed cartridge bearings, QR, 32h

FRONT TIRE

Ground Control Fat, Control casing, 26x4.6"", 120TPI, Aramid folding bead, 2Bliss Ready

REAR TIRE

Ground Control Fat, Control casing, 26x4.6"", 120TPI, Aramid folding bead, 2Bliss Ready

DRIVETRAIN

FRONT DERAILLEUR

SRAM X5, bottom pull, 2x10

REAR DERAILLEUR

SRAM X7 Type 2.1, long cage, 10-speed

SHIFT LEVERS

SRAM X7, 10-speed, trigger

CASSETTE

Sunrace, 10-speed, 11-36t

CHAIN

KMC X10L, 10-speed w/reusable MissingLink

CRANKSET

Custom Samox, forged alloy, 2x10, 104mm BCD spider

CHAINRINGS

36/22T

BOTTOM BRACKET

BB30, sealed cartridge bearings

COCKPIT

HANDLEBARS

Specialized Stout, double-butted 6061 alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 740mm width, 31.8mm

STEM

Specialized Stout, 3D-forged alloy, 4-bolt, 6-degree rise, anti-corrosion hardware

GRIPS

Specialized Sip Grip, lock-on, half-waffle, regular thickness

SADDLE

Women's Body Geometry Myth Sport, steel rails, 155mm

SEATPOST

Alloy, 2-bolt clamp, 12.5mm offset, 30.9mm, anti-corrosion hardware

BRAKES

FRONT BRAKE

Tektro Gemini, hydraulic disc, resin pads

REAR BRAKE

Tektro Gemini, hydraulic disc, resin pads, I-spec compatible

ACCESSORIES

PEDALS

Nylon platform w/reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Seat-Tube Angle	73.5°	73.5°	73.5°
Head-Tube Length	100mm	110mm	125mm
Head-Tube Angle	70.5°	70.5°	70.5°
Chain-Stay Length	455mm	455mm	455mm
Front-Center	617mm	640mm	660mm
B-B Drop	60mm	60mm	60mm
B-B Height	316mm	316mm	316mm
Bike Stand-Over Height	676mm	702mm	728mm
Fork Length (full)	467mm	467mm	467mm
Top-Tube Length (horizontal)	552mm	575mm	594mm
Seat-Tube Length	381mm	430mm	470mm
Stack	580mm	590mm	604mm
Reach	380mm	400mm	415mm
Trail	83mm	83mm	83mm
Fork Rake/Offset	47mm	47mm	47mm
Wheelbase	1065mm	1088mm	1108mm
