Hardrock Sport
$500.00
Part No.

Hardrock Sport

$500.00
Part No.  22410
load-spinner
Hardrock Sport
Overview
Technical Specifications
Geometry
Reviews

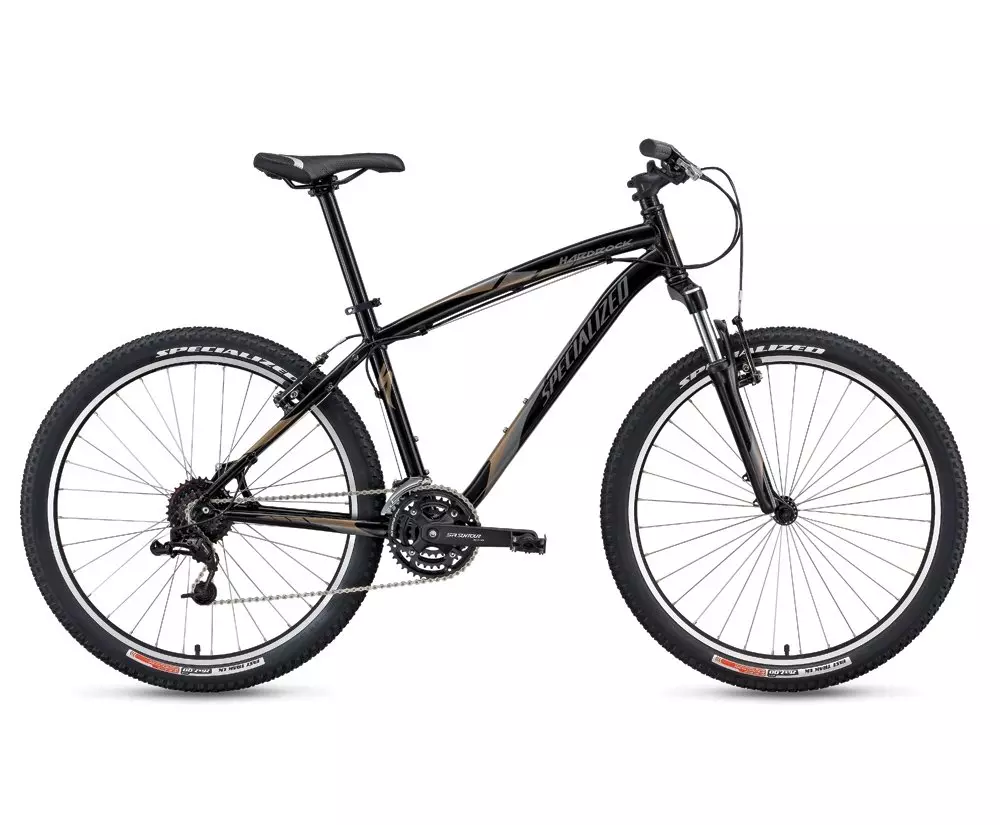

AN OLD FAVORITE MADE NEW, the Hardrock is still the most versatile hardtail for kicking around town, but its lighter weight, more efficient alloy chassis and category-leading specifications make it the perfect introduction to XC Trail riding.
  • This fully butted A1 Premium Aluminum frame offers improved fatigue life and comfort in a high performance and lightweight chassis, with an ORE top/down tube, externally relieved headtube and reinforced disc-brake mount.
  • An SR Suntour suspension fork lends 80mm of travel, with external preload adjustment for quick fine-tuning and a mechanical lockout for minimizing power-robbing movement.
  • The Specialized 3D-forged alloy stem offers a 10-degree rise for perfect bar positioning.
  • A Sram X4 rear derailleur and X4 8-speed trigger shifters allow sure, precise and quick shifts with the flick of a finger.
  • The crankset utilizes Shimano’s Octalink splined bottom-bracket interface for maximum power transfer.
  • Specialized Fast Trak LK Sport tires have a low knob height for efficiency and shoulder knobs for precise cornering.
  • The Specialized XC saddle features abrasion-resistant side patches for enhanced durability.

Technical Specifications

FRAMESET
SEAT BINDER Specialized alloy w/ QR
HEADSET Specialized 1-1/8"" threadless, loose ball
FRAME Specialized A1 Premium Aluminum, fully butted, formed TT, double ORE DT, externally relieved HT, reinforced disc mount, forged dropouts w/ replaceable 98954020 hanger
WHEELS
FRONT HUB Specialized Hi Lo, forged alloy, double sealed, ground race, 32h
REAR HUB Shimano FH-RM30 forged alloy, cassette, QR, 32h
INNER TUBES Specialized schraeder valve
SPOKES 1.8mm (15g) stainless
RIMS Specialized RH, 26"", pinned, alloy double wall, CNC sidewalls, 32h
FRONT TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
REAR TIRE Specialized Fast Trak LK Sport, 26x2.0"", 60TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 113mm
CHAIN KMC X8 w/ reuseable Missing Link
CRANKSET SR SunTour, Octalink spline
CASSETTE SRAM PG-820, 8-speed, 11-32t
SHIFT LEVERS SRAM X-4, 8-speed trigger
FRONT DERAILLEUR Shimano Altus, 34.9mm clamp
CHAINRINGS 42S x 32S x 22S, replaceable
REAR DERAILLEUR SRAM X-4, midcage
COCKPIT
SADDLE Specialized XC, Body Geometry, 143mm width, front and rear bumpers
SEATPOST Specialized alloy two bolt, no offset, micro adjust, 30.9mm
GRIPS Specialized Enduro, dual compound Kraton, no flange, 131mm
HANDLEBARS Specialized alloy, 25mm rise, 640mm wide, 8 degree back sweep, 8 degree up sweep, 3.2mm thick
STEM Specialized 3D forged, 10 degree rise, 25.4mm clamp
BRAKES
BRAKE LEVERS Specialized linear pull
FRONT BRAKE Alloy linear pull, 1pc. pad
REAR BRAKE Alloy linear pull, 1pc. pad
ACCESSORIES
PEDALS Steel cage, composite body, 9/16""
SUSPENSION
FORK SR Suntour SF8-XCT-V2, 80mm, 1pc. alloy lower, 28mm Hi-Ten stanchions, 13-15"": standard spring, all others: ""stiff"" spring, coil/mcu spring w/ preload adj., spring assisted seals, disc only

Geometry

Geometry Chart

Hardrock - Geometry

  13 15 17 19 21 23
Stem Length 60mm 60mm 75mm 75mm 90mm 90mm
Crank Length 170mm 170mm 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 350mm 400mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm 640mm 640mm
Chainstay Length 424mm 424mm 424mm 424mm 424mm 424mm
Top Tube Length (Actual) 534mm 538mm 557mm 581mm 608mm 638mm
Top Tube Length (Horizontal) 540mm 555mm 580mm 605mm 630mm 655mm
Head Tube Angle - Low Setting 70.25° 70.25° 70.25° 70.25° 70.25° 70.25°
Standover Height 696mm 727mm 766mm 794mm 830mm 865mm
Wheel Base 1017mm 1032mm 1058mm 1083mm 1109mm 1135mm
Head Tube Height 100mm 100mm 120mm 120mm 140mm 160mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73° 73° 73°
Seat Tube Length - Center to Top 330mm 381mm 432mm 483mm 533mm 584mm
Bottom Bracket Height - Low Setting 299mm 299mm 299mm 299mm 299mm 299mm
