Hardrock Pro Disc
Part No.

Hardrock Pro Disc

Part No.
load-spinner
Hardrock Pro Disc
Overview
Technical Specifications
Geometry
Reviews

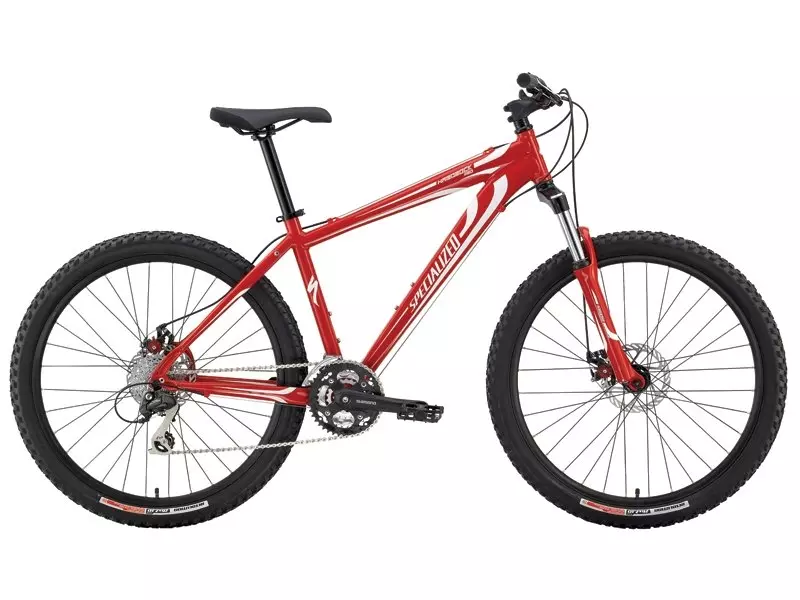

ATB - All Terrain Bike SOLID AS A... From the mean streets to demanding dirt trails, the Hardrock® delivers performance and durability in a package that looks good and is built to be solid as a rock.

Inside Tech Building a hardtail frame that'll last a lifetime and is still light enough to ride isn't easy, but in the 25-plus years that we've been building mountain bikes, we've learned a thing or two. For the Hardrock we use a 100% proprietary, butted A1 alloy tubeset that is light, but still tough because we put the material only where it needs to be. Optimized Radius Engineering top and down tubes add even more brawn and still manage to shave weight.

  • A1 Premium Aluminum frame, disc only, double butted TT, ORE DT, externally relieved head tube, reinforced disc mount, forged dropouts
  • SR Suntour SF7-XCM-HLO Fork, with 100mm travel, lockout, abd 30mm Hi-Ten stanchions
  • Avid BB5 brakes, mechanical disc, 6" G2 Clean Sweep rotor
  • Shimano FCM-341-8 crankset, Octalink Spline, replaceable rings
  • Specialized/Alex HRD 26 rims, double wall disc w/ eyelets
  • Specialized Resolution tires, 26x2.1", 60TPI, wire bead

Technical Specifications

DRIVETRAIN
CHAIN KMC X8, 1/2"" x 3/32"" w/ reusable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing, 68 x 126mm for 50mm chainline
CRANKSET Shimano FC-M341-8, replaceable rings, Octalink Spline
FRONT DERAILLEUR Shimano Altus FD-M310-6, top swing, 34.9mm clamp
SHIFT LEVERS Shimano Acera SL-MC40
CHAINRINGS 42S/32S/22S
REAR DERAILLEUR Shimano Alivio RD-M410
SUSPENSION
FORK SR Suntour SF7-XCM-HLO, 100mm, 12"": 80mm, 30mm Hi-Ten stanchions and steerer, coil spring mcu w/ preload adj., hydraulic LO, spring assisted seals, custom paint/graphics, disc only
WHEELS
FRONT HUB Specialized Hi Lo disc, 32h, CNC flange and disc mount, polished races, alloy QR
REAR HUB Specialized Hi Lo disc, cassette, 32h, CNC flanges and disc mount, polished races, alloy QR
SPOKES 1.8mm (15g) stainless
FRONT TIRE Specialized Resolution, 26x2.1"", 30TPI, wire bead
RIMS Specialized/Alex HRD 26, double wall disc w/ eyelets
REAR TIRE Specialized Resolution, 26x2.1"", 30TPI, wire bead
COCKPIT
SADDLE Specialized Aggro, Aramid sides, front and rear bumpers, 143mm width
STEM Specialized 3D forged alloy, two bolt, 31.8mm, 10 degree rise
HANDLEBARS Specialized alloy 31.8mm, Enduro rise, 640mm wide, 8 degree back, 8 degree up sweep
BRAKES
FRONT BRAKE Avid BB-5, mechanical disc, 6"" G2 Clean Sweep rotor
BRAKE LEVERS Avid FR-5
REAR BRAKE Avid BB-5, mechanical disc, 6"" G2 Clean Sweep rotor
ACCESSORIES
PEDALS Specialized alloy platform, 9/16""
FRAMESET
HEADSET 1 1/8"" threadless
SEAT BINDER Specialized alloy w/ QR
FRAME A1 Premium Aluminum, double-butted, ORE DT, externally relieved HT, reinforced disc mount, forged dropouts w/ replaceable 98954020 alloy hanger, disc only

Geometry

Geometry Chart

- Geometry

  12 15 17 19 21 24
Crank Length 165mm 170mm 170mm 175mm 175mm 175mm
Stem Length 60mm 60mm 75mm 75mm 90mm 90mm
Seatpost Length 350mm 350mm 350mm 400mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm 640mm 640mm
Chainstay Length 427mm 427mm 427mm 427mm 427mm 427mm
Top Tube Length (Actual) 535mm 550mm 569mm 590mm 616mm 647mm
Top Tube Length (Horizontal) 535mm 565mm 590mm 615mm 640mm 665mm
Head Tube Angle - Low Setting 69° 70° 70° 70° 70° 70°
Standover Height 670mm 723mm 758mm 790mm 823mm 871mm
Head Tube Height 100mm 100mm 120mm 120mm 140mm 160mm
Wheel Base 1029mm 1050mm 1076mm 1101mm 1127mm 1153mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73° 73° 73°
Seat Tube Length - Center to Top 305mm 381mm 432mm 483mm 533mm 610mm
Bottom Bracket Height - Low Setting 300mm 300mm 300mm 300mm 300mm 300mm
