Hardrock Disc SE 26
$480.00
Part No.

Hardrock Disc SE 26

$480.00
Part No.  95194
load-spinner
Hardrock Disc SE 26
Overview
Technical Specifications
Geometry
Reviews

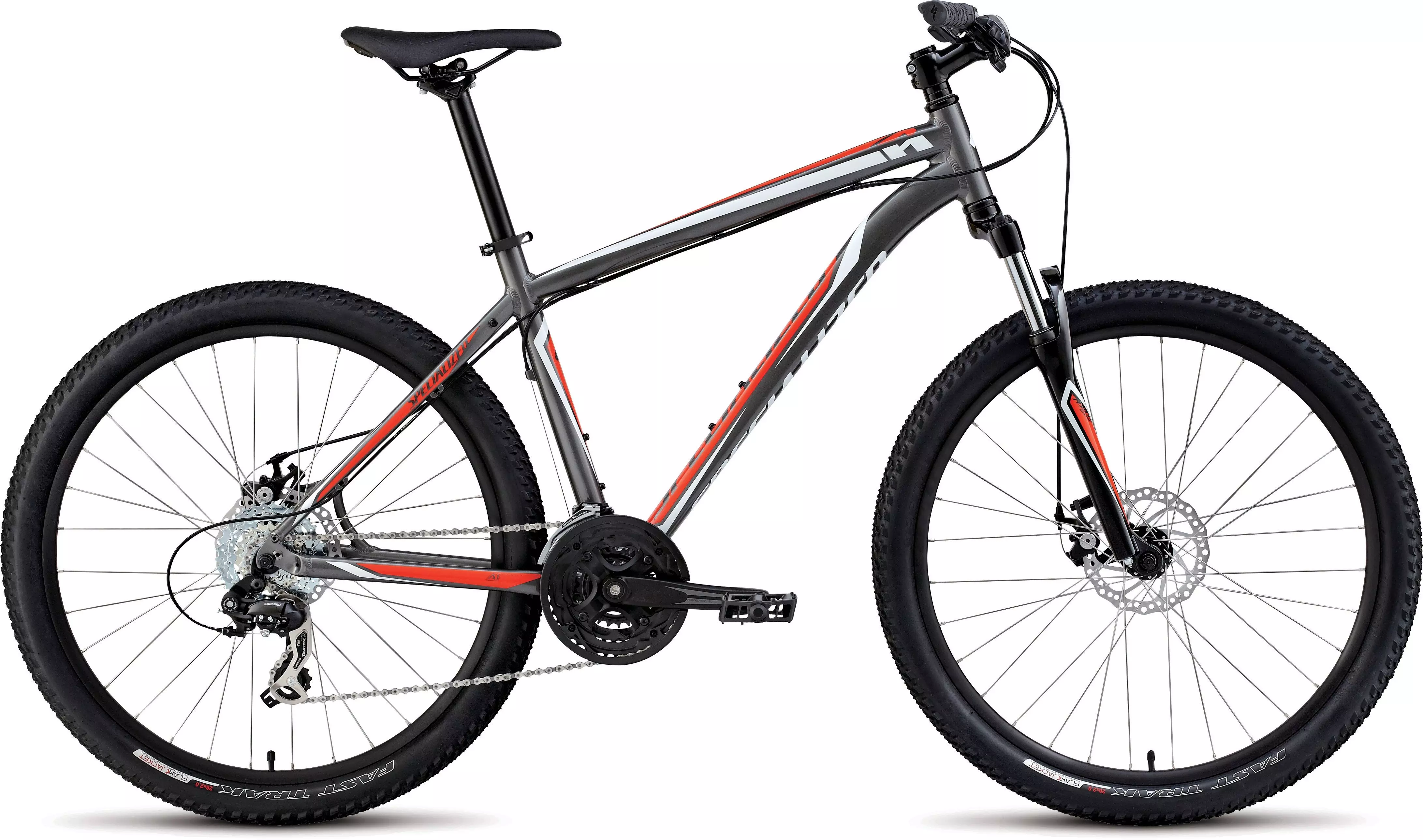

The Hardrock Disc SE is prepared for mountain trails and urban jungles, with a smooth SR Suntour fork, plus powerful Tektro mechanical disc brakes, and reliable Shimano 7-speed drivetrain.
  • Tektro Aries disc brakes for precise stopping power
  • Specialized Fast Trak Sport 2.0" tires w/ a race-proven tread
  • The custom color—Rocket Red—is designed to naturally age over time. It will exhibit splashes of a dark rich color when exposed to prolonged direct sunlight. This finish is deliberate and therefore not covered under the traditional warranty policy.
  • Efficient and precise 7-speed crankset
  • Shimano 7-speed derailleur for reliable shifting performance
  • 75mm-travel SR Suntour fork delivers a plush ride for varying terrain
  • Specialized Body Geometry mountain saddle is tuned for trail performance and reduced fatigue
  • A1 Premium Aluminum frame with ORE downtube for a lighter, more compliant and durable bike

Technical Specifications

FRAMESET
SEAT BINDER Alloy, nylon/glass fiber washer, QR, 34.9mm
HEADSET 1-1/8"" threadless, loose ball
FRAME Specialized A1 Premium Aluminum, ORE downtube, externally relieved headtube, forged dropouts w/ reinforced disc mount, replaceable alloy derailleur hanger
WHEELS
FRONT HUB Specialized Hi Lo disc, alloy double-sealed, ground race, QR, 32h
REAR HUB Specialized Hi Lo disc, alloy, double-sealed, loose ball bearings, QR, 32h
INNER TUBES Standard, Schrader valve
SPOKES Stainless, 14g, w/ brass nipple
FRONT TIRE Specialized Fast Trak Sport, 30TPI, wire bead, Flak Jacket protection, 26x2.0""
RIMS 26"" disc, alloy double-wall, pin joint, 25mm inner width, 32h
REAR TIRE Specialized Fast Trak Sport, 30TPI, wire bead, Flak Jacket protection, 26x2.0""
DRIVETRAIN
BOTTOM BRACKET Square taper, cartridge bearings
CHAIN KMC X8, 8-speed, reusable Missing Link
CRANKSET Forged alloy, square taper spindle, 42/34/24, w/ chainguard
CASSETTE Sunrace, 7-speed, 11-34
SHIFT LEVERS Shimano ST-EF51, 7-speed, trigger, w/ integrated brake lever
FRONT DERAILLEUR Shimano Tourney, 3-speed, top swing, dual-pull
REAR DERAILLEUR Shimano Tourney, 7-speed
COCKPIT
SADDLE Body Geometry mountain, thick padding, steel rails, 143mm
SEATPOST Alloy, 2-bolt, micro-adjust, 12.5mm offset, 30.9mm, anti-corrosion hardware
GRIPS Specialized Body Geometry XCT, Kraton w/ gel, lock-on, closed end, 132mm
HANDLEBARS Specialized riser, Hi-Ten steel, 8-degree backsweep, 4-degree upsweep, 35mm rise, 25.4mm
STEM Specialized, forged alloy, 4-bolt, 10-degree rise, anti-corrosion hardware
BRAKES
FRONT BRAKE Tektro Aries, mechanical disc, organic pads
REAR BRAKE Tektro Aries, mechanical disc, organic pads
ACCESSORIES
PEDALS Composite platform, w/ reflectors, 9/16""
SUSPENSION
FORK SR Suntour M3030, alloy lowers, custom coil/MCU spring weights, Hi-Ten 25.4mm stanchions, 1-1/8"" steerer, preload adjust, disc mount, 75mm travel

Geometry

Geometry Chart

Hardrock - Geometry

XS S M L XL XXL
  XS S M L XL XXL
Stem Length 70mm 75mm 75mm 90mm 90mm 90mm
Crank Length 170mm 170mm 175mm 175mm 175mm 175mm
Seatpost Length 300mm 350mm 350mm 400mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm 640mm 640mm
Reach 370mm 391mm 410mm 429mm 449mm 468mm
Stack 556mm 556mm 575mm 575mm 594mm 613mm
Chainstay Length 424.5mm 424.5mm 424.5mm 424.5mm 424.5mm 424.5mm
Bottom Bracket Drop 41mm 41mm 41mm 41mm 41mm 41mm
Seat Tube Angle 73° 73° 73° 73° 73° 73°
Head Tube Angle 70.25° 70.25° 70.25° 70.25° 70.25° 70.25°
Head Tube Length 100mm 100mm 120mm 120mm 140mm 160mm
Top Tube Length (Actual) 534mm 542mm 562mm 581mm 608mm 637mm
Top Tube Length (Horizontal) 540mm 561mm 586mm 605mm 630mm 655mm
Seat Tube Length, Center to Top 330mm 394mm 444mm 483mm 533mm 584mm
Standover Height 687mm 724mm 760mm 782mm 817mm 852mm
Wheel Base 1018mm 1039mm 1065mm 1084mm 1110mm 1136mm
Bottom Bracket Height 299mm 299mm 299mm 299mm 299mm 299mm
