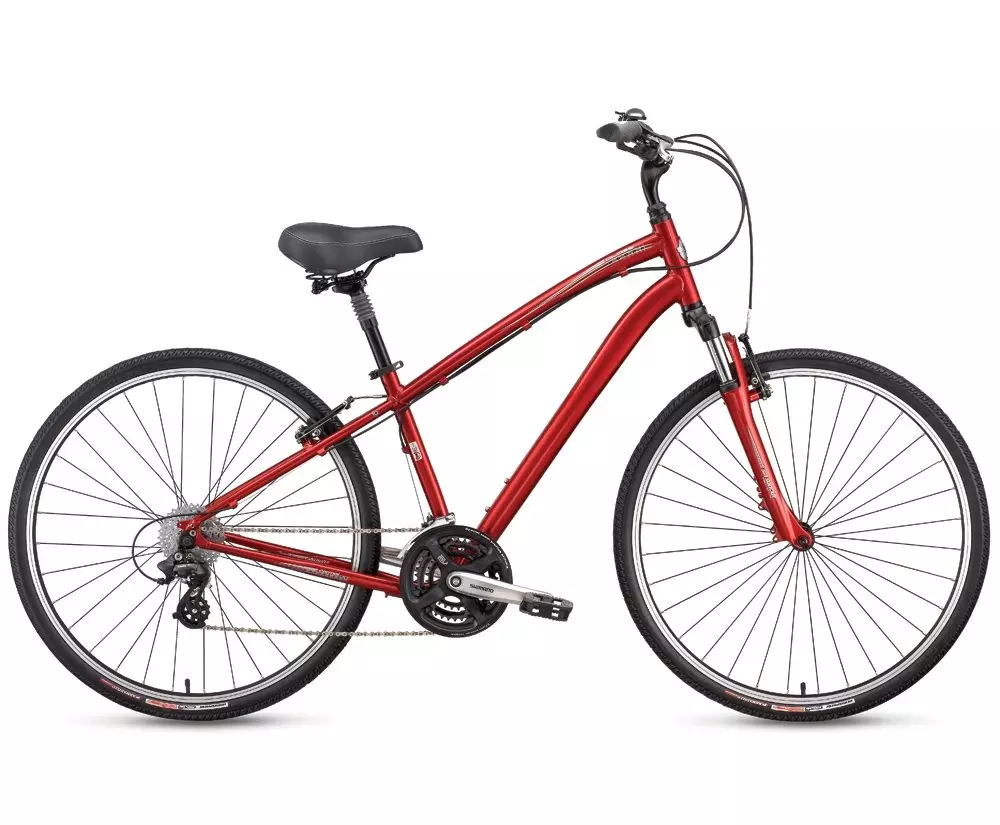

Globe Carmel 3 700c
Part No.

Globe Carmel 3 700c

Part No.  22354
Globe Carmel 3 700c
Technical Specifications
The Carmel is a no-brainer. Zero intimidation factor. All fun. Anyone and everyone who's looking for unsurpassed comfort, easy travels and feeling like a kid again will love this bike.
  • Our A1 Premium Aluminum frame features Ground Control geometry for an upright and comfortable seating position that's closer to the ground and easier to stop and go, even with 700c tires.
  • The suspension fork uses coil/MCU springs for a smooth ride and external preload adjustment for easy fine-tuning.
  • Specialized Hemisphere 700x38c tires are smooth rolling, and Armadillo casing makes them virtually puncture-proof.
  • The wide Comfort Plus saddle has springs and a suspension seatpost to take the edge off.
  • Globe 700c rims are double-walled for strength and machined sidewalls make for smooth braking.

Technical Specifications

SEAT BINDER Specialized alloy w/ QR
HEADSET Specialized 1-1/8"" threaded, loose ball
FRAME Globe A1 Premium Aluminum, ground control geometry, 700c comfort frame, formed tubes w/ integrated kickstand mount, forged dropouts w/ replaceable 98954020 hanger
FRONT HUB Specialized, forged alloy, double sealed, polished races, 32h, steel QR
REAR HUB Specialized, forged alloy, double sealed, ground race, cassette, QR, 32h
INNER TUBES Specialized schraeder valve
SPOKES 1.8mm (15g) stainless
RIMS Specialized Globe, 700c, 32h, double wall w/ machine sidewalls, 32h
FRONT TIRE Specialized Hemisphere, 700x1.95"", 60TPI, wire bead, Armadillo casing
REAR TIRE Specialized Hemisphere, 700x1.95"", 60TPI, wire bead, Armadillo casing
BOTTOM BRACKET FSA BB-7420, cartridge bearings, 68mm x 122.5mm for 47.5mm chain line
CHAIN KMC X8 w/ reuseable Missing Link
CRANKSET Shimano FCM-151 w/ chainguard
CASSETTE Shimano HG-40, 8-speed, 11-32t
SHIFT LEVERS Shimano SL-MC40, 8-speed, rapid fire
FRONT DERAILLEUR Shimano FD-C102, 31.8mm clamp, top swing, dual pull
CHAINRINGS 48 x 38 x 28t
SADDLE Specialized Comfort Plus w/ springs
SEATPOST Alloy suspension, 27.2mm, two bolt head w/ preload adjust
GRIPS Men's Body Geometry Comfort w/ integrated bell, closed end, 132mm
HANDLEBARS Globe comfort riser bar, 25.4mm, 40mm rise, 620mm wide, 15 degree back sweep, 5 degree up
STEM Globe ground control, 4-bolt, alloy head/Cr-Mo quill, 25.4mm clamp
BRAKE LEVERS Tektro alloy 4-finger, kraton lever pad, for rapid fire shifter
FRONT BRAKE Alloy linear pull w/ adj. housing, 1pc. pad
REAR BRAKE Alloy linear pull w/ adj. housing, 1pc. pad
PEDALS Composit comfort pedal w/ Kraton top
FORK SR Suntour NEX-4110-700, 63mm, 1pc. alloy lower, Hi-Ten stanchions and steerer, coil/mcu w/ preload adj., spring assisted seals


Geometry Chart

Carmel - Geometry

Handle-Bar Width 350mm 350mm 350mm 350mm 350mm
Reach 600mm 615mm 630mm 640mm 615mm
Wheelbase 620mm 620mm 620mm 620mm 620mm
Stack 363mm 411mm 475mm 363mm 437mm
Seat-Tube Length, B-B Center to Top 500mm 500mm 500mm 500mm 500mm
Head-Tube Length 170mm 170mm 170mm 170mm 170mm
Ground-Top 73mm 73mm 73mm 73mm 73mm
Top-Tube Length, Horizontal 70mm 69mm 69mm 70mm 69mm
Front-Center 150mm 160mm 170mm 190mm 180mm
Head-Tube Angle 640° 645° 664° 640° 645°
Fork Rake 1131mm 1136mm 1155mm 1131mm 1135mm
Trail 756mm 777mm 783mm 480mm 496mm
Stand-Over Height 35mm 35mm 35mm 35mm 35mm
Chain-Stay Length 40mm 40mm 40mm 40mm 40mm
Seat-Tube Angle 89° 89° 93° 93° 89°
B-B Drop 69.5mm 69.5mm 69mm 69.5mm 69.5mm
