Fuse 6Fattie
Overview
Technical Specifications
Reviews

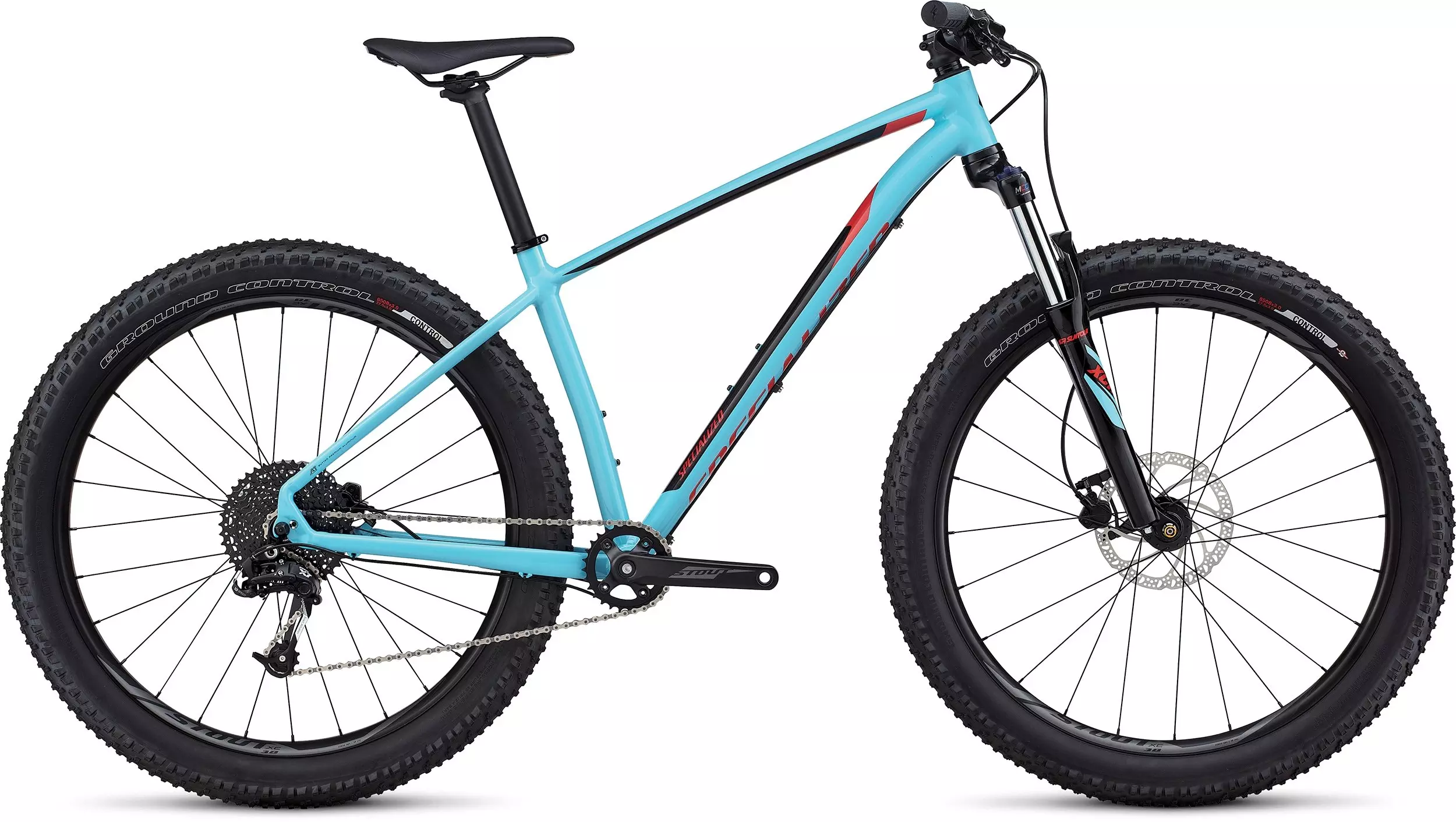

If you show us the trail rider that says they couldn't use more traction, we'll show the trail rider that's never ridden our Fuse. We like to call it the ultimate trail hardtail, and with our Wheel System, this becomes more than just talk. Its 650bx3.0" tires put out more traction, more floatation, and better handling without sacrificing anything to efficiency on climbs. And to solidify itself as a proper trail machine, this iteration of the Fuse places a focus on blending durability with performance. To do so, we spec'd it with strong alloy rims, a bulletproof one-by drivetrain with plenty of hammering and climbing ability, and a SR Suntour fork with 80mm of travel. It has everything you need to ride harder and go faster, and nothing that you don't.
  • The frame features an A1 Premium Aluminum construction that provides the ideal blend of efficiency and durability. It also allowed us to accommodate the 6Fattie wheels & tires without compromising on our hallmark characteristics, like short chainstays that provide unrivaled handling and climbing prowess.
  • An SR Suntour XCM 27.5+ fork with Multi-Circuit Damping features a stiff 15mm thru-axle and 80/100mm of smooth travel.
  • 650bx3.0" 6Fattie Ground Control tires feature a perfectly sized contact patch for life-changing levels of traction and control while cornering, all without sacrificing climbing efficiency or descending prowess. And with a GRID casing protecting the sidewalls, these tires will stand up to anything the trail can throw at them.

Technical Specifications

DRIVETRAIN
CHAIN SRAM PC-1031, 10-speed w/PowerLink
BOTTOM BRACKET Square taper, 73mm, internal bearings
CRANKSET Stout, 76mm BCD spider
SHIFT LEVERS SRAM X5, 10-speed, trigger
CASSETTE Sunrace, 10-speed, 11-42t
CHAINRINGS 28T
REAR DERAILLEUR SRAM X7, Type 2.1, long cage, 10-speed
SUSPENSION
FORK SR Suntour XCM, coil spring, custom Multi-Circuit Damping, lockout, 32mm stanchions, 15x110mm thru-axle, 80/100mm of travel
COCKPIT
SADDLE Body Geometry Henge Sport, steel rails, 143mm
SEATPOST Alloy, 12.5mm offset, 2-bolt clamp, 30.9mm
STEM Alloy, 7-degree rise, 31.8mm clamp
HANDLEBARS Double-butted alloy, 9-degree backsweep, 5-degree upsweep, 15mm rise, 750mm width, 31.8mm
GRIPS Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
WHEELS
FRONT HUB Specialized Stout, sealed cartridge bearings, 15x110mm spacing, 24h
REAR HUB Specialized Stout, 10-speed, 10x141mm spacing, sealed cartridge bearings, 28h
INNER TUBES Standard, Presta valve
SPOKES Stainless, 14g, black
RIMS Stout 650b, alloy, disc only, 38mm inner width, 24/28h
BRAKES
FRONT BRAKE Tektro Auriga, hydraulic disc, organic pads, 180mm rotor
REAR BRAKE Tektro Auriga, hydraulic disc, organic pads, 160mm rotor
ACCESSORIES
PEDALS Specialized Dirt Pedals
FRAMESET
SEAT BINDER Alloy, 31.8mm
FRAME A1 Premium Aluminum w/smooth welding, Zero Stack 44 head tube, forged post mount 160mm disc, 141mm QR dropout, alloy replaceable derailleur hanger
