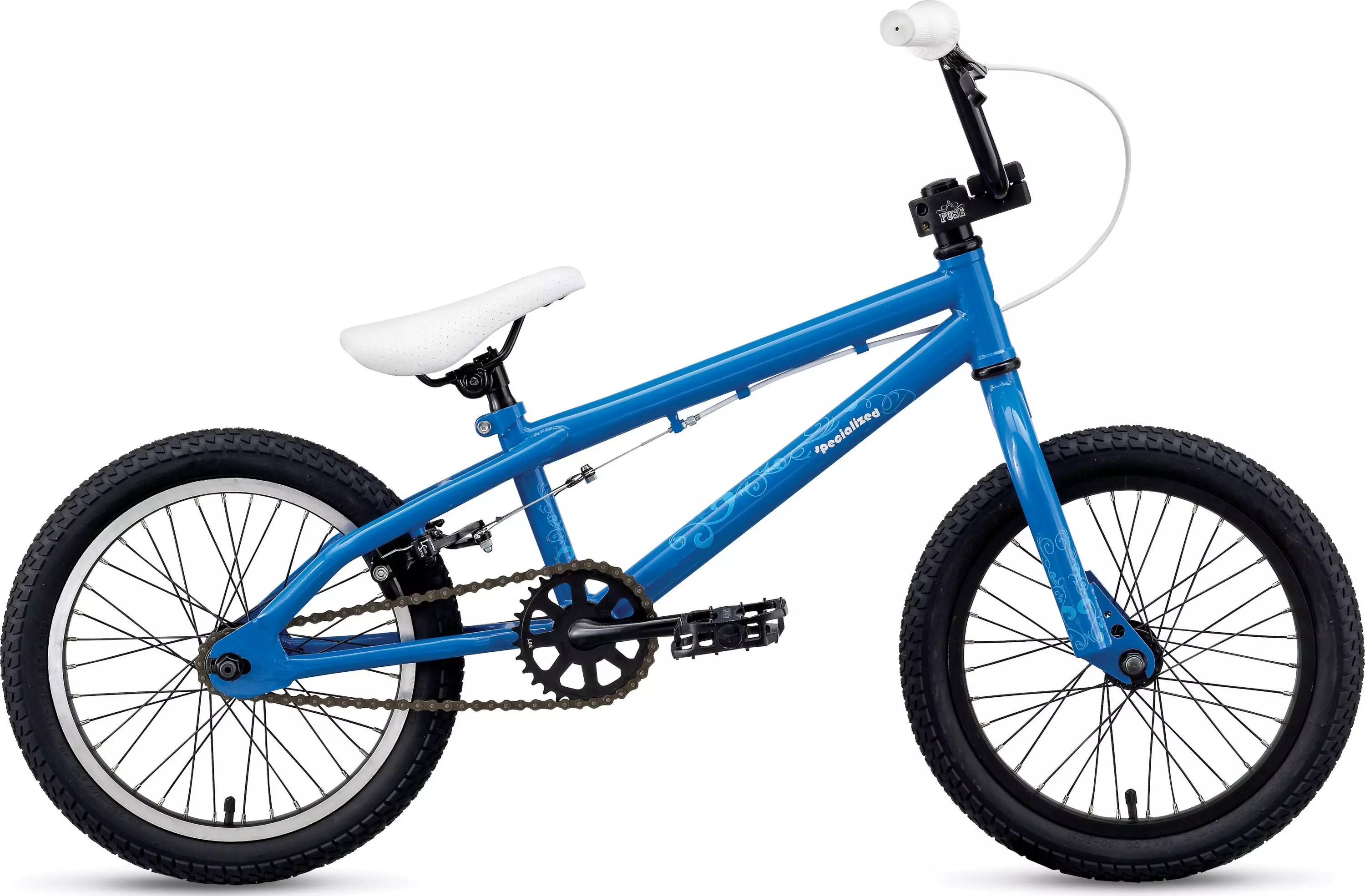

Fuse 16
Part No.

Fuse 16

Part No.  22826
Fuse 16
Overview
Technical Specifications
Geometry
Reviews
Back To Top
Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang for your buck than any other player in the game. Always bomb-proof, high integrity and ultra lightweight, with super-low BBs and compact drive options.
  • Rear brake with soft compound pads for quick stops
  • Threadless headset for smooth action and easy, Allen-wrench adjustments
  • Fuse Cr-Mo sealed hubs keep dirt and corrosion out and wheels running smooth
  • Fast-rolling Rhythm Lite Sport tires keep grip levels high and wheel weights low
  • Compact drive 30/13t CNC-cut chainring for a stronger and lighter weight drivetrain
  • 16-inch frame maintains the same construction, performance and attention to detail as its bigger brothers--with sizing suited to the smallest Groms

Technical Specifications

Technical Specifications

DRIVETRAIN
CHAIN KMC Z-510, 1/2"" x 1/8""
BOTTOM BRACKET Heat treated Hi-Ten cups, loose ball for 1pc.
FREEWHEEL Odyssey 1/2"" x 1/8"" x 13t for M30 thread
CRANKSET Heat Treated Hi Ten 1pc., 140mm
CHAINRINGS Forged alloy 30t w/ CNC cut teeth
WHEELS
FRONT HUB Fuse, 36h, sealed mech., mid flange, solid 14mm Cr-Mo axle
REAR HUB Fuse, 36h, sealed mech., mid flange, 14mm solid axle
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
RIMS Fuse Single, single wall
FRONT TIRE Specialized Rhythm Lite Sport, 20 x 2.0"", 30TPI, wire bead
REAR TIRE Specialized Rhythm Lite Sport, 20 x 2.0"", 30TPI, wire bead
COCKPIT
SADDLE 7mm rails, front and rear bumpers
SEATPOST Alloy, 2 bolt, no offset, 25.4mm
STEM Fuse forged alloy, 50mm extension, 1 1/8"" A-Head
HANDLEBARS Hi-Ten 2pc., 560mm wide, 165mm rise, 11 degree back, 4 degree up sweep
GRIPS Specialized File, Kraton w/ flange
BRAKES
BRAKE LEVERS Tektro SBL-89, alloy two finger, 16mm cable pull
REAR BRAKE Tektro FX-330, linear spring, 15mm offset arms w/ grey soft compound pads
ACCESSORIES
PEDALS Specialized platform, 1/2'' Cr-Mo axle, molded pins
FRAMESET
HEADSET 1 1/8"" threadless
SEAT BINDER Cr-Mo seat pin, allen key type
FORK Specialized 1.2mm Hi-Ten blades, 1-1/8"" threadless, 2mm thick Hi-Ten steerer, 6mm dropouts
FRAME Hi-Ten frame, formed DT/TT, tig welded, externally relieved HT w/ stamped ""S"" logo, standard BB, integrated seat collar, 6mm dropouts for 14mm axle
* Specifications are subject to change without notice

Geometry

Geometry Chart

Fuse - Geometry

  16 20.5 20.75 21
Top Tube Length (Actual) 423mm 524mm 483mm 535mm
Seatpost Length 0mm 0mm 0mm 0mm
Seat Tube Length, Center to Top 207mm 242mm 238mm 239mm
Standover Height 474mm 573mm 570mm 560mm
Chainstay Length 299mm 349mm 347mm 347mm
Bottom Bracket Height 238mm 279mm 279mm 279mm
Seat Tube Angle 70° 72° 72° 72°
Head Tube Angle 73° 74.25° 74.25° 74.25°
Rake 29mm 29mm 29mm 29mm
Head Tube Length 100mm 100mm 100mm 110mm
