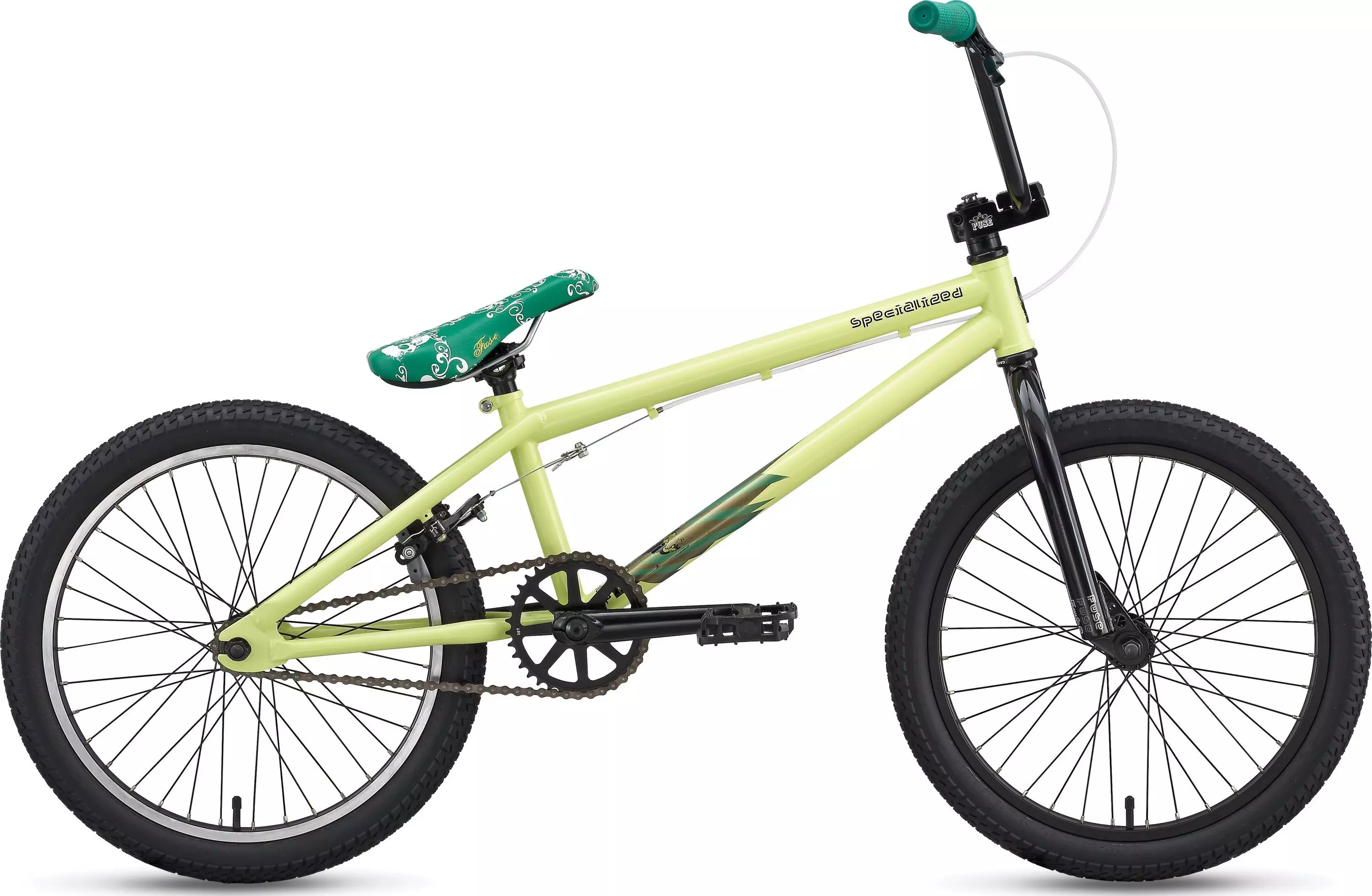

Fuse 1
Overview
Technical Specifications
Geometry
Reviews
Everything you want and nothing you don't, the X-Games-proven Fuse offers more bang for your buck than any other player in the game. Always bomb-proof, high integrity and ultra lightweight, with super-low BBs and compact drive options.
  • No-offset aluminum seatpost for two-bolt, no-fuss durability
  • Spot-on geometry with externally relieved head tube for reliable strength
  • Fast-rolling Rhythm Lite Sport tires keep grip levels high and wheel weights low
  • 3-piece tubular Cr-Mo crank and cartridge bearing BB for a stiff and bomb-proof drivetrain

Technical Specifications

FRAMESET
SEAT BINDER Cr-Mo seat pin, allen key type
HEADSET 1-1/8"" threadless
FORK Specialized 1.6mm Hi-Ten 1-1/4"" blades, 1-1/8"" threadless, 2mm thick Hi-Ten steerer, 6mm dropouts for 14mm axle
FRAME Hi-Ten frame, 20.5"" TT, formed DT/TT, tig welded, externally relieved HT w/ stamped ""S"" logo, Euro BB, integrated seat collar, 6mm dropouts for 14mm axle
WHEELS
FRONT HUB Fuse, 36h, sealed mech., mid flange, solid 14mm Cr-Mo axle
REAR HUB Fuse, 36h, sealed mech., mid flange, 14mm solid axle
INNER TUBES Schraeder valve
SPOKES 2mm (14g) stainless
FRONT TIRE Specialized Rhythm Lite Sport, 20 x 2.1"", 30TPI, wire bead
RIMS Fuse Single, single wall
REAR TIRE Specialized Rhythm Lite Sport, 20 x 2.1"", 30TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Euro BB, steel threaded cup, 2x sealed cartridge bearing w/ 19mm 8 spline Cr-Mo BB spindle
CHAIN KMC Z-510, 1/2"" x 1/8""
FREEWHEEL Odyssey 1/2"" x 1/8"" x 13t for M30 thread
CRANKSET Tig welded Tubular Cr-Mo for 8 spline, 175mm length
CHAINRINGS Forged alloy 36t w/ CNC cut teeth
COCKPIT
SADDLE Fuse Jump, 7mm rail, PVC bumpers front and rear
SEATPOST Alloy, 2 bolt, no offset, 25.4mm
GRIPS Fuse File, Kraton w/ flange
HANDLEBARS Hi-Ten 2pc., 675mm wide, 205mm rise, 12 degree back, 3 degree up sweep
STEM Fuse forged alloy, 50mm extension, 1 1/8"" A-Head
BRAKES
BRAKE LEVERS Tektro SBL-89, alloy two finger, 16mm cable pull
REAR BRAKE Tektro FX-330, linear spring, 15mm offset arms w/ grey soft compound pads
ACCESSORIES
PEDALS Specialized platform, 9/16'' Cr-Mo axle, molded pins

Geometry

Geometry Chart

Fuse - Geometry

  16 20.5 19 21
Top Tube Length (Actual) 423mm 524mm 529mm 535mm
Seatpost Length 0mm 0mm 0mm 0mm
Seat Tube Length, Center to Top 207mm 242mm 238mm 239mm
Standover Height 474mm 573mm 570mm 560mm
Chainstay Length 299mm 349mm 352mm 347mm
Bottom Bracket Height 238mm 279mm 283mm 279mm
Seat Tube Angle 70° 72° 72° 72°
Head Tube Angle 73° 74.25° 74.25° 74.25°
Rake 29mm 29mm 29mm 29mm
Head Tube Length 100mm 100mm 100mm 110mm
