Technical Specifications

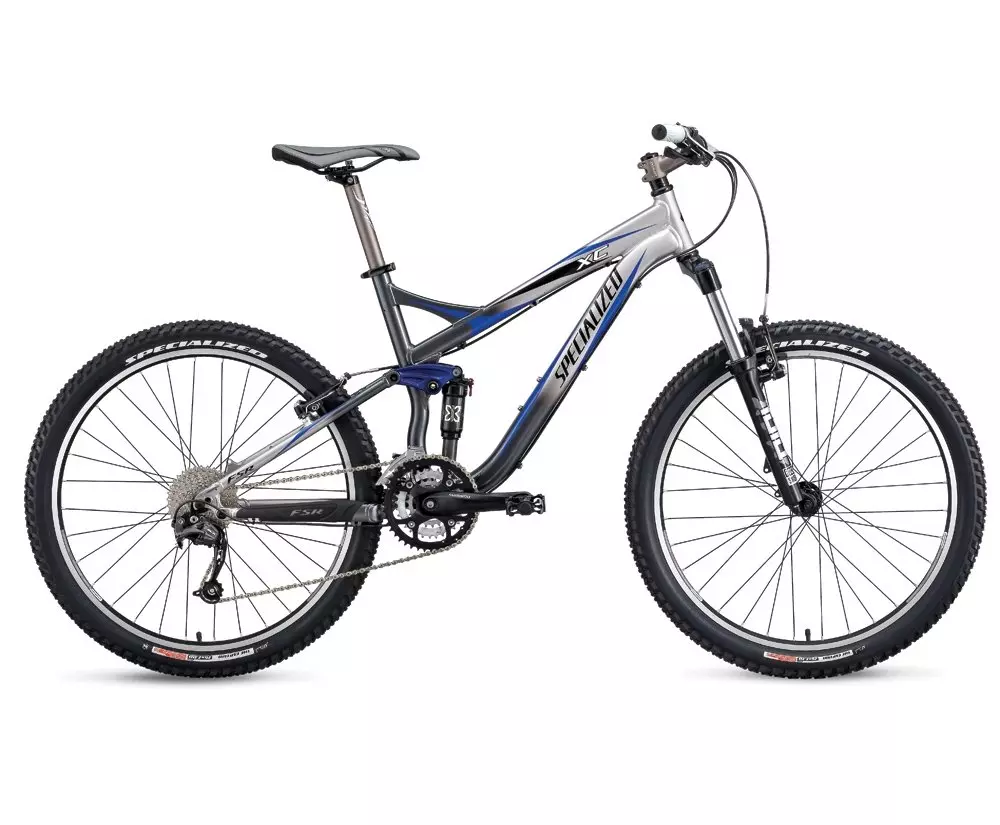

DO THE DIRT without cleaning out your wallet. The FSRxc™ takes to the trail like an old pro, but its updated design with improved standover, greater seatpost adjustment and new rocker link gives you a license to a wider range of trails.
  • Our M4 manipulated alloy frame is updated for `09 with a new rocker design and 120mm travel. Sealed cartridge bearing pivots provide reliable performance.
  • Specialized-exclusive X-Fusion shock offers adjustable rebound and lockout control for fine-tuned performance.
  • The RockShox Tora fork delivers a full 120mm of travel and tunability, with externally adjustable rebound, preload and lockout.
  • Specialized alloy adjustable rise stem is lightweight and 3D-forged with a stiff four-bolt face plate for tuned fit and perfect steering precision.
  • Durable, low-profile Shimano Shadow SLX rear derailleur.

Technical Specifications

CHAIN KMC X9, 9-speed w/ reusable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, 68mm x 118mm
CRANKSET Shimano FC-M442-8, Octalink Spline, replaceable rings w/ alloy outer, S: 170mm, others: 175mm
FRONT DERAILLEUR Shimano Deore, 34.9mm clamp, top swing, bottom pull
SHIFT LEVERS Shimano SL-M531 Deore, trigger
CASSETTE Shimano HG-50, 9-speed, 11-34t
CHAINRINGS Shimano 22S x 32S x 44A
REAR DERAILLEUR Shimano RD-M672 SLX Shadow, 9 speed, long cage
FORK Rock Shox Tora 302 SL, 120mm, alloy steer, external rebound and preload adj. w/ LO,  S/M"" ""Standard"", L/XL ""Stiff"" Coil spring.
REAR SHOCK X Fusion 02RLA, Custom tuned for Specialized, rebound adj. w/ LO, 7.5x1.75"", 2 bearing upper shock mount
FRONT HUB Specialized Hi Lo disc, CNC flange, QR, 32h
REAR HUB Specialized disc, double sealed system, high/low flange w/ OS contact side, 32h
INNER TUBES Specialized 26x2.0"", schrader
SPOKES 1.8mm (15g) stainless, black, alloy nipples
FRONT TIRE Specialized The Captain Control, 26x2.2"", 60 TPI, aramid bead, dual compound, tubeless ready
RIMS Specialized RH, rim specific, double wall w/ eyelets, CNC sidewall
REAR TIRE Specialized The Captain Control, 26x2.0"", 60 TPI, aramid bead, dual compound, tubeless ready
SADDLE Specialized MTB, 7mm steel rails, 143mm
SEATPOST Specialized 6061 alloy, black, 30.9x350/400mm, setback head, 2-bolt micro adjust
STEM Specialized adjustable rise, four bolt 31.8mm clamp, 3D forged, S:75mm, M:90mm, L/XL:105mm
HANDLEBARS Specialized XC low rise, butted alloy, 640mm wide, 6 degree up, 8 degree backsweep
GRIPS Specialized thin lock on grip
FRONT BRAKE Avid SD3, alloy linear pull w/ 1pc pad
BRAKE LEVERS Avid FR-5, alloy, two-finger, linear pull
REAR BRAKE Avid SD3, alloy linear pull w/ 1pc pad
PEDALS Specialized, 1pc., alloy body and cage, 9/16""
HEADSET 1-1/8"" Threadless, loose ball bearings w/ seals, black steel cups
SEAT BINDER Alloy collar w/ QR, 34.9mm clamp ID
FRAME FSR XC M4 Manipulated Alloy tubing w/ new rocker design, bolt on cable guides, 120mm travel, sealed cartridge pivot bearings, rim brake bosses, replaceable rear derailleur hanger


Geometry Chart

- Geometry

  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 75mm 90mm 100mm 120mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm
Chainstay Length 424mm 424mm 424mm 424mm
Top Tube Length (Actual) 559mm 593mm 628mm 650mm
Top Tube Length (Horizontal) 556mm 590mm 625mm 645mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5°
Standover Height 717mm 724mm 732mm 738mm
Head Tube Height 100mm 120mm 140mm 160mm
Wheel Base 1086mm 1122mm 1159mm 1181mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71°
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5°
Seat Tube Length - Center to Top 394mm 445mm 483mm 534mm
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm
