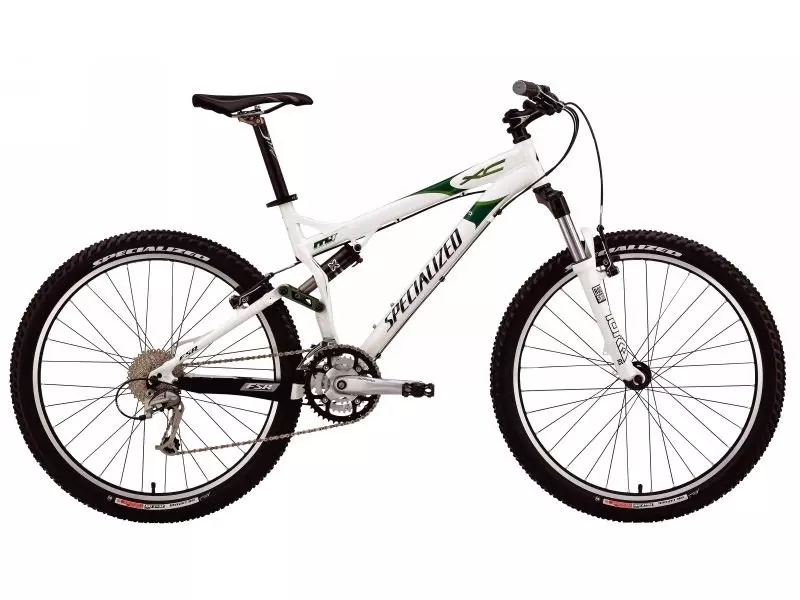

XC Trail SLIMMED DOWN SUSPENSION In production for a decade, the FSRxc™ features our time-tested, fully-active FSR suspension in a minimalist package that is fast, light, efficient and easy-to-maintain.

Inside Tech The FSRxc features ORE (Optimized Radius Engineering) top and down tubes that are engineered and fabricated for maximum performance in XC Trail riding. Thanks to their aggressive shaping and intelligent engineering, ORE tubes tend to be lighter, stronger and more efficient than anything on the market.

Useful Links Suspension Setup Manuals/Tech Bulletins

  • FSR M4 butted frame w/ ORE downtube, sealed cartridge bearing pivots, replaceable hanger, bolt on cable guides, two sets of water bottle bosses, 100mm travel
  • X Fursion 02RLA rear shock, Specialized tuned, reboind adjust w/ LO, 7.0x1.6", 4 bearing lower shock mount
  • RockShox Tora 302 SL fork, 100mm travel, 32mm CR-Mo stanchions, alloy steerer, mag lower, coil spring, preload adjust, lockout w/ rebound adjust
  • 1.8mm (15g) stainless spokes, black, alloy nipples
  • Specialized The Captain sport tires, 26x2.0", 60TPI, wire bead

Technical Specifications

DRIVETRAIN
CHAIN KMC X9, 1/2"" x 3/32"" w/ reusable Missing Link
BOTTOM BRACKET Shimano BB-ES25, Octalink Spline, cartridge bearing, 68 x 118mm for 50mm chainline
CRANKSET Shimano M442-8, Octalink Spline, 9-speed, replaceable rings w/ alloy outer
FRONT DERAILLEUR Shimano Deore M530, 34.9mm clamp
SHIFT LEVERS Shimano Deore M530, 9-speed trigger
CHAINRINGS 22S/32S/44A 4mm thick outer, 4 bolt 104/64mm
REAR DERAILLEUR Shimano LX M581, SGS cage
SUSPENSION
FORK RockShox Tora 302 SL, 100mm travel, 32mm Cr-Mo stanchions, alloy steerer, mag lower, coil spring, preload adjust, lockout w/ rebound adjust
REAR SHOCK X Fusion 02RLA, Specialized tuned, rebound adjust w/ LO, 7.0x1.6"", 4 bearing lower shock mount
WHEELS
FRONT HUB Specialized Hi Lo disc, 32h, CNC flange and disc mount, polished races, alloy QR
REAR HUB Shimano M-475L disc, 32h, 8/9-speed cassette, alloy QR
SPOKES 1.8mm (15g) stainless, black, alloy nipples
RIMS Specialized/Alex RHD 26, double wall rim w/ eyelets
FRONT TIRE Specialized The Captain Sport, 26x2.0"", 60TPI, wire bead
REAR TIRE Specialized The Captain Sport, 26x2.0"", 60TPI, wire bead
COCKPIT
SADDLE Specialized MTB, 7mm steel rails
STEM Specialized 3D forged alloy, 7 degree rise, 31.8mm 4 bolt clamp, S:75mm, M:90mm, L/XL:105mm
HANDLEBARS Specialized XC low rise, 31.8mm, butted alloy, 640mm wide, 6 degree up, 8 degree backsweep
BRAKES
BRAKE LEVERS Avid FR-5
FRONT BRAKE Avid SD-3, alloy ""V"", cartridge pads w/ 1pc pad
REAR BRAKE Avid SD-3, alloy ""V"", cartridge pads, w/ 1pc pad
ACCESSORIES
PEDALS Specialized alloy 1pc body and cage, 9/16""
FRAMESET
HEADSET 1 1/8"" threadless, black steel cups, loose ball bearings w/ seals
SEAT BINDER Alloy collar w/ QR, 34.9mm clamp ID
FRAME FSR M4 butted frame w/ ORE downtube, sealed cartridge bearing pivots, replaceable hanger, bolt on cable guides, two sets of water bottle bosses, 100mm travel

Geometry

Geometry Chart

- Geometry

S M L XL
  S M L XL
Crank Length 170mm 175mm 175mm 175mm
Stem Length 75mm 90mm 105mm 105mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm
Chainstay Length 424mm 424mm 424mm 424mm
Top Tube Length (Actual) 530mm 566mm 589mm 615mm
Top Tube Length (Horizontal) 550mm 586mm 611mm 637mm
Head Tube Angle - Low Setting 69° 69° 69° 69°
Standover Height 723mm 745mm 760mm 766mm
Head Tube Height 100mm 110mm 120mm 148mm
Wheel Base 1053mm 1090mm 1116mm 1144mm
Seat Tube Angle (Actual) - Low Setting 73° 73° 73° 73°
Seat Tube Angle (Effective) - Low Setting 73° 73° 73° 73°
Seat Tube Length - Center to Top 433mm 445mm 483mm 534mm
Bottom Bracket Height - Low Setting 321mm 321mm 321mm 321mm
