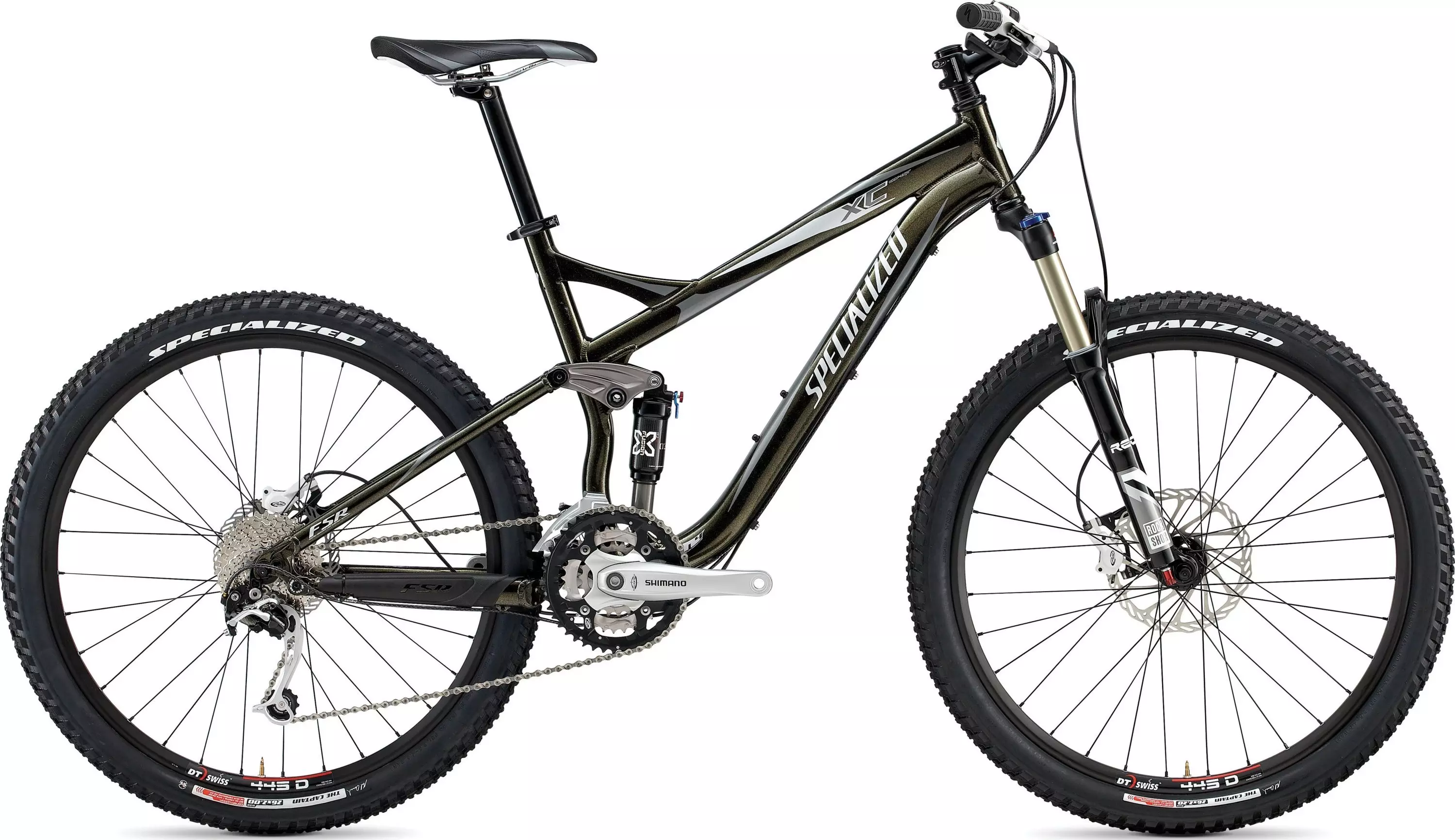

FSRxc Expert
Overview
Technical Specifications
Geometry
Reviews
For XC Trail riders who want the highest value bike for finding adventure in varied terrain, the FSRxc™ is impossible to beat. Thanks to a lightweight M4 frame, independent FSR suspension with rocker link and top-of-the-line specs, the 120mm-travel FSRxc™ packs more than its money's worth of efficiency, durability and confident handling
  • Shimano Deore XT Shadow rear derailleur delivers top-of-the-line shifting performance
  • Oversized 3D-forged adjustable rise alloy stem with 4-bolt clamp for extra strength and versatility
  • Custom tuned X-Fusion rear shock with adjustable rebound, compression and lockout for personalized bump control
  • Avid Elixir 4 hydraulic disc brakes with G3 Clean Sweep rotors for maximum stopping power and Elixir 4 levers with reach adjust
  • M4 alloy frame with improved rocker design and sealed cartridge bearing pivots for confident handling and durable trail performance
  • RockShox Recon SLite Solo Air 120mm-travel fork uses TurnKey damping with adjustable rebound and compression lockout for set-and-forget simplicity

Technical Specifications

FRAMESET
SEAT BINDER Alloy collar w/ QR, 34.9mm clamp ID
HEADSET 1-1/8"" threadless, loose ball
FRAME FSR XC M4 tubing, rocker design, bolt on cable guides, 120mm travel, sealed cartridge pivot bearings, disc only, replaceable rear derailleur hanger
WHEELS
FRONT HUB Forged alloy, hi/low flange, double sealed, ground race, machined disc mount, 32h, QR
REAR HUB Disc, double sealed cartridge bearing, high/low flange w/ OS contact side, 32h, QR
INNER TUBES Ultralight presta valve
SPOKES 1.8mm (15g) stainless
RIMS Custom DT Swiss 445D, disc, 24mm, double wall, pin joint, eyelets, 32h
FRONT TIRE Specialized The Captain Sport, 26.2.2"", 60 TPI, wire bead
REAR TIRE Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, cartridge bearing, 68mm x 118mm
CHAIN KMC X9 w/ reuseable Missing Link
CRANKSET Shimano FC-M521, Hollowtech, Octalink spline, replacable rings w/ alloy outer, S: 170mm, others: 175mm
CASSETTE Shimano HG50, 9-speed, 11-34t
SHIFT LEVERS Shimano SL-M531 Deore, trigger
FRONT DERAILLEUR Shimano FD-M590 Deore, 34.9mm clamp, top swing, bottom pull
CHAINRINGS 44A x 32S x 22S
REAR DERAILLEUR Shimano RD-M772 Deore XT Shadow, long cage
COCKPIT
SADDLE Specialized Rival, Body Geometry, 143mm width, front and rear bumpers
SEATPOST 6061 alloy, 2-bolt micro adjust setback head, 30.9mm
GRIPS Specialized waffle lock on grip (S/M) Specialized thick lock on grip (L/XL)
HANDLEBARS XC low rise,6061 butted alloy, 660mm wide, 8 degree back sweep, 6 degree up
STEM 3D forged alloy, 4-bolt, 31.8mm, adjustable rise
BRAKES
BRAKE LEVERS Avid Elixir 4 Hydraulic
FRONT BRAKE Custom Avid Elixir 4, full hydraulic, alloy backed pads, Clean Sweep rotor, S/M: 185mm, L/XL: 203mm
REAR BRAKE Custom Avid Elixir 4, full hydraulic, alloy backed pads, Clean Sweep rotor, S/M: 160mm, L/XL: 185mm
ACCESSORIES
PEDALS None
SUSPENSION
FORK RockShox Recon SLite Solo Air, 120mm travel, alloy steerer, Turn Key damper, rebound adj. w/ LO, air spring
REAR SHOCK X Fusion 02RC, Custom tuned for Specialized, rebound adj., compression adjust w/lock-out, 7.5x1.75"", 2 bearing upper shock mount

Geometry

Geometry Chart

FSRxc - Geometry

S M L XL
  S M L XL
Stem Length 60mm 75mm 90mm 105mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 660mm 660mm 660mm 660mm
Reach 401mm 430mm 459mm 474mm
Stack 560mm 579mm 597mm 616mm
Chainstay Length 424mm 424mm 424mm 424mm
Top Tube Length (Actual) 531mm 563mm 600mm 623mm
Ground-Top 895mm 914mm 932mm 951mm
Top Tube Length (Horizontal) 556mm 590mm 625mm 645mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5°
Standover Height 717mm 724mm 732mm 738mm
Wheel Base 1086mm 1122mm 1159mm 1181mm
Head Tube Height 100mm 120mm 140mm 160mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71°
Seat Tube Length - Center to Top 394mm 445mm 483mm 534mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm
