FSRxc Expert
$1,900.00
Part No.

FSRxc Expert

$1,900.00
Part No.  22571
load-spinner

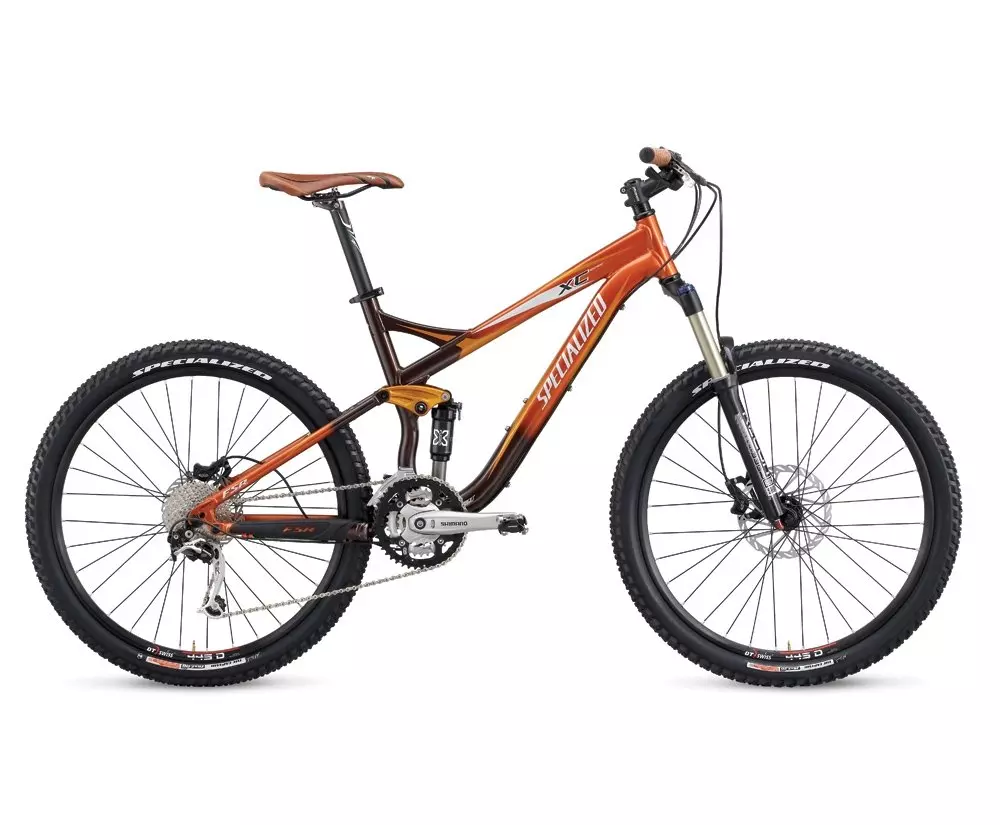

FSRxc Expert
Overview
Technical Specifications
Geometry
Reviews
DO THE DIRT without cleaning out your wallet. The FSRxc™ takes to the trail like an old pro, but its updated design with improved standover, greater seatpost adjustment and new rocker link gives you a license to a wider range of trails.
  • Our M4 manipulated alloy frame is updated for `09 with a new rocker design and 120mm travel. Sealed cartridge bearing pivots provide reliable performance.
  • Specialized-exclusive X-Fusion shock offers adjustable rebound and lockout control for fine-tuned performance.
  • The RockShox Recon fork delivers a full 120mm of travel with lockout control and a Turn Key damper for adjustable rebound.
  • Specialized alloy adjustable rise stem is lightweight and 3D-forged with a stiff four-bolt face plate for tuned fit and perfect steering precision.
  • Avid Juicy hydraulic brakes provide exceptional stopping power and reliability, with tool-less reach adjust, alloy-backed pads and size-specific CleanSweep rotors.
  • The long-cage Shimano Deore Shadow rear derailleur shifts smoothly and reliably, with a new low-profile design that improves durability.

Technical Specifications

FRAMESET
SEAT BINDER Alloy collar with QR, 34.9mm clamp ID
HEADSET 1-1/8"" Threadless, loose ball bearings w/ seals, black steel cups
FRAME FSR XC M4 Manipulated Alloy tubing w/ new rocker design, bolt on cable guides, 120mm travel, sealed cartridge pivot bearings, disc only, replaceable rear derailleur hanger
WHEELS
FRONT HUB Specialized Hi Lo disc, CNC flange, QR, 32h
REAR HUB Specialized disc, sealed cartridge bearing, high/low flange w/ OS contact side, 32h
INNER TUBES Specialized Ultralight 26x2.0"", presta
SPOKES 1.8mm (15g) stainless, black, alloy nipples
RIMS DT Swiss 445D, disc, 24mm, double wall, pin joint, eyelets, 32h
FRONT TIRE Specialized The Captain Sport, 26x2.2"", 60 TPI, wire bead
REAR TIRE Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead
DRIVETRAIN
BOTTOM BRACKET Shimano BB-ES25, Octalink spline, 68mm x 118mm
CHAIN KMC X9, 9-speed w/ reusable Missing Link
CRANKSET Shimano FC-M521, Hollowtech, Octalink spline, replacable rings w/ alloy outer, S: 170mm, others: 175mm
CASSETTE Shimano HG-50, 9-speed, 11-34t
SHIFT LEVERS Shimano SL-M531 Deore, trigger
FRONT DERAILLEUR Shimano Deore, 34.9mm clamp, top swing, bottom pull
CHAINRINGS Shimano 22S x 32S x 44A
REAR DERAILLEUR Shimano RD-M772 Deore XT Shadow, long cage
COCKPIT
SADDLE Specialized MTB, 7mm steel rails, 143mm
SEATPOST Specialized 6061 alloy, black, 30.9x350/400mm, setback head, 2-bolt micro adjust
GRIPS Specialized thin lock on grip
HANDLEBARS Specialized XC low rise, butted alloy, 640mm wide, 8 degree up, 8 degree backsweep
STEM Specialized adjustable rise, four bolt 31.8mm clamp, 3D forged, S:75mm, M:90mm, L/XL:105mm
BRAKES
BRAKE LEVERS Avid Juicy 4RSL Hydraulic
FRONT BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic brake pads, tool-less reach adj., cleansweep rotor S/M:185mm rotor, L/XL:203mm rotor
REAR BRAKE Avid Juicy 4 RSL Hydraulic Disc Brake, alloy backed organic brake pads, tool-less reach adj., cleansweep rotor S/M:160mm rotor, L/XL:185mm rotor
ACCESSORIES
PEDALS None
SUSPENSION
FORK RockShox Recon 335 SL, 120mm travel, 32mm alloy stanchions, alloy steerer, disc only, Turn Key damper, rebound adj. w/ LO, air spring
REAR SHOCK X Fusion 02RC, Custom tuned for Specialized, rebound adj., compression adjust w/lock-out, 7.5x1.75"", 2 bearing upper shock mount

Geometry

Geometry Chart

FSRxc - Geometry

S M L XL
  S M L XL
Stem Length 75mm 90mm 100mm 120mm
Crank Length 170mm 175mm 175mm 175mm
Seatpost Length 350mm 350mm 400mm 400mm
Handlebar Width 640mm 640mm 640mm 640mm
Chainstay Length 424mm 424mm 424mm 424mm
Top Tube Length (Actual) 559mm 593mm 628mm 650mm
Top Tube Length (Horizontal) 556mm 590mm 625mm 645mm
Head Tube Angle - Low Setting 68.5° 68.5° 68.5° 68.5°
Standover Height 717mm 724mm 732mm 738mm
Wheel Base 1086mm 1122mm 1159mm 1181mm
Head Tube Height 100mm 120mm 140mm 160mm
Seat Tube Angle (Actual) - Low Setting 71° 71° 71° 71°
Seat Tube Length - Center to Top 394mm 445mm 483mm 534mm
Seat Tube Angle (Effective) - Low Setting 74.5° 74.5° 74.5° 74.5°
Bottom Bracket Height - Low Setting 335mm 335mm 335mm 335mm
