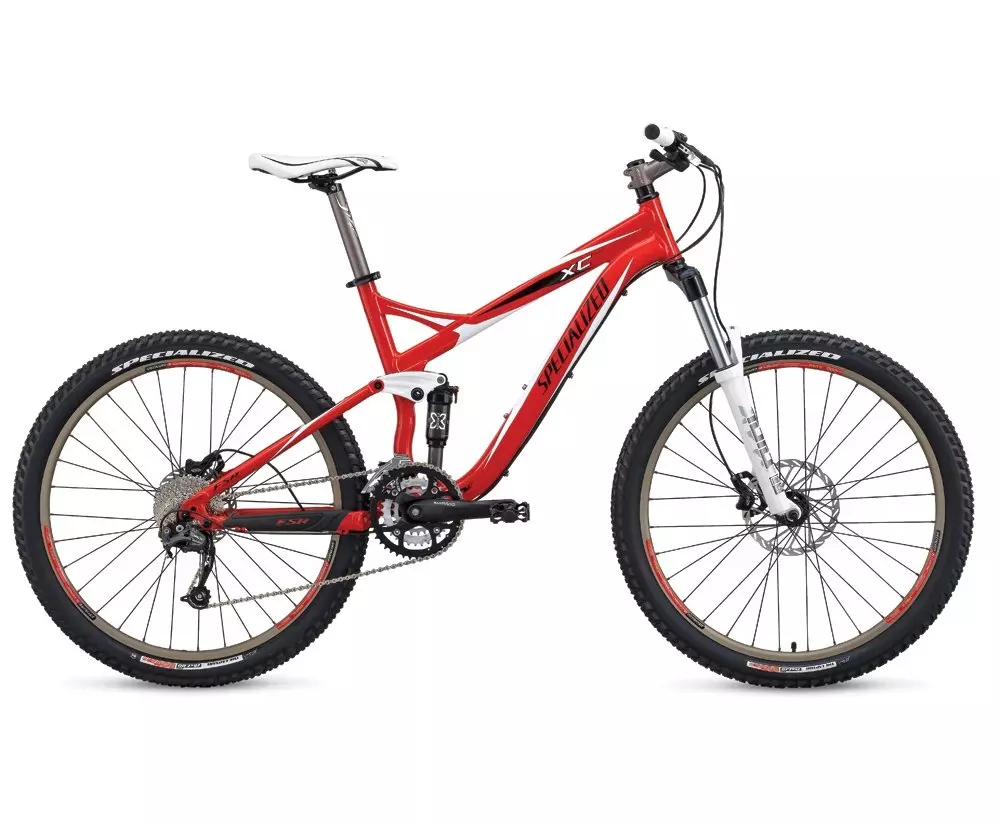

2009 FSRxc Comp

0 Reviews

DO THE DIRT without cleaning out your wallet. The FSRxc™ takes to the trail like…

Product Details

DO THE DIRT without cleaning out your wallet. The FSRxc™ takes to the trail like an old pro, but its updated design with improved standover, greater seatpost adjustment and new rocker link gives you a license to a wider range of trails.

Our M4 manipulated alloy frame is updated for `09 with a new rocker design and 120mm travel. Sealed cartridge bearing pivots provide reliable performance.
Specialized-exclusive X-Fusion shock offers adjustable rebound and lockout control for fine-tuned performance.
The RockShox Tora fork delivers a full 120mm of travel and tunability, with externally adjustable rebound, preload and lockout.
Specialized alloy adjustable rise stem is lightweight and 3D-forged with a stiff four-bolt face plate for tuned fit and perfect steering precision.
Avid Juicy hydraulic brakes provide exceptional stopping power and reliability, with alloy-backed pads and size-specific CleanSweep rotors.
Durable, low-profile Shimano Shadow SLX rear derailleur.

Technical Specifications

FRAMESET

FRAME

FSR XC M4 Manipulated Alloy ubing w/ new rocker design, bolt on cable guides, 120mm travel, sealed cartridge pivot bearings, disc only, replaceable rear derailleur hanger

HEADSET

1-1/8"" Threadless, loose ball bearings w/ seals, black steel cups

SEAT BINDER

Alloy collar w/ QR, 34.9mm clamp ID

SUSPENSION

REAR SHOCK

X Fusion 02RLA, Custom tuned for Specialized, rebound adj. w/lock-out, 7.5x1.75"", 2 bearing upper shock mount

FORK

Rock Shox Tora 302 SL, 120mm, alloy steer, external rebound and preload adj. w/ LO, S/M"" ""Standard"", L/XL ""Stiff"" Coil spring.

WHEELS

RIMS

Specialized RHD, disc, double wall w/ eyelets

FRONT HUB

Specialized Hi Lo disc, CNC flange, QR, 32h

REAR HUB

Specialized disc, sealed cartridge bearing, high/low flange w/ OS contact side, 32h

SPOKES

1.8mm (15g) stainless, black, alloy nipples

FRONT TIRE

Specialized The Captain Sport, 26x2.2"", 60 TPI, wire bead

REAR TIRE

Specialized The Captain Sport, 26x2.0"", 60 TPI, wire bead

INNER TUBES

Specialized 26x2.0"", schrader

DRIVETRAIN

FRONT DERAILLEUR

Shimano Deore, 34.9mm clamp, top swing, bottom pull

REAR DERAILLEUR

Shimano RD-M672 SLX Shadow, 9 speed, long cage

SHIFT LEVERS

Shimano SL-M531 Deore, trigger

CASSETTE

Shimano HG-50, 9-speed, 11-34t

CHAIN

KMC X9, 9-speed w/ reusable Missing Link

CRANKSET

Shimano FC-M442-8, Octalink Spline, replaceable rings w/ alloy outer, S: 170mm, others: 175mm

CHAINRINGS

Shimano 22S x 32S x 44A

BOTTOM BRACKET

Shimano BB-ES25, Octalink spline, 68mm x 118mm

COCKPIT

SEATPOST

Specialized 6061 alloy, black, 30.9x350/400mm, setback head, 2-bolt micro adjust

STEM

Specialized adjustable rise, four bolt 31.8mm clamp, 3D forged, S:75mm, M:90mm, L/XL:105mm

HANDLEBARS

Specialized XC low rise, butted alloy, 640mm wide, 8 degree up, 8 degree backsweep

GRIPS

Specialized thin lock on grip

SADDLE

Specialized MTB, 7mm steel rails, 143mm

BRAKES

FRONT BRAKE

Avid Juicy 3SL full hydraulic, alloy backed brake pads, cleansweep S/M: 185mm, L/XL: 203mm rotor

REAR BRAKE

Avid Juicy 3SL full hydraulic, alloy backed brake pads, cleansweep S/M: 160mm, L/XL: 185mm rotor

BRAKE LEVERS

Avid Juicy 3 SL Hydraulic

ACCESSORIES

PEDALS

Specialized, 1pc., alloy body and cage, 9/16""

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L	XL
Bottom Bracket Height - Low Setting	335mm	335mm	335mm	335mm
Top Tube Length (Horizontal)	556mm	590mm	625mm	645mm
Head Tube Height	100mm	120mm	140mm	160mm
Head Tube Angle - Low Setting	68.5°	68.5°	68.5°	68.5°
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°	74.5°
Top Tube Length (Actual)	559mm	593mm	628mm	650mm
Seat Tube Length - Center to Top	394mm	445mm	483mm	534mm
Wheel Base	1086mm	1122mm	1159mm	1181mm
Standover Height	717mm	724mm	732mm	738mm
Chainstay Length	424mm	424mm	424mm	424mm
Crank Length	170mm	175mm	175mm	175mm
Handlebar Width	640mm	640mm	640mm	640mm
Stem Length	75mm	90mm	100mm	120mm
Seatpost Length	350mm	350mm	400mm	400mm
